• Press the trigger (2), the SCOOTER starts to move;
• Releasing the trigger, the SCOOTER stops;
• The dive begins.
10. BATTERY
For more details, see the user manual relating to the battery which is an integral part of this document.
10.1. OPENING THE BATTERY COMPARTMENT
Put the SCOOTER in vertical position on the shroud (5) on a flat surface.
Turn the front fastening knob (9) counter-clockwise. When rotating the knob the nosecone (8) (see fig. 1) starts to
lift. Continue rotating the knob until the nosecone detaches from the body.
10.2. EXTRACTING THE BATTERY

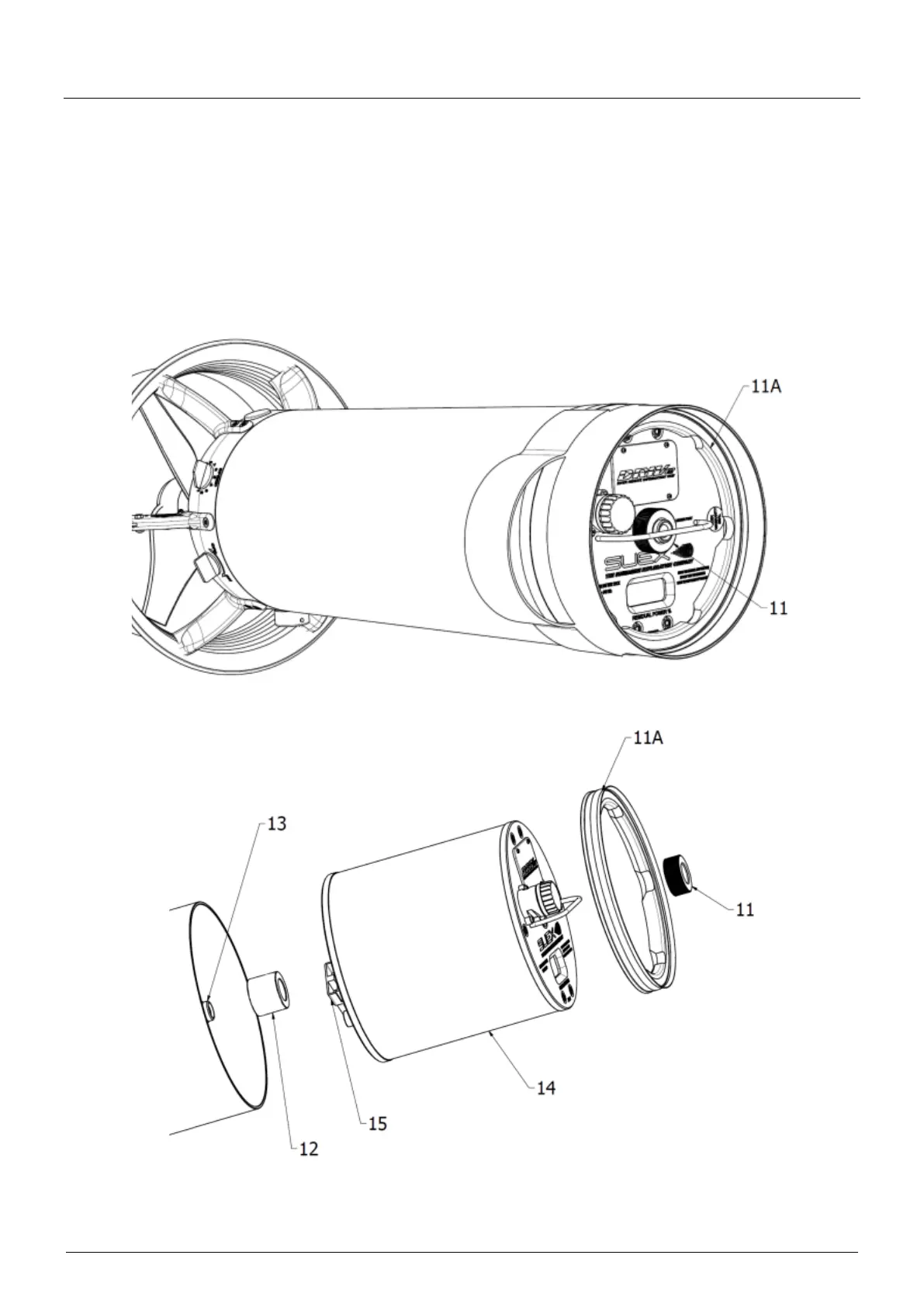

Once the cap has been removed, unscrew the ring nut (11), extract the drop drap ring (11A) and remove the battery
(14) by pulling it upwards by sliding it off the rod (13) (fig. 3). When the battery is completely removed, disconnect
the red connector (15).
