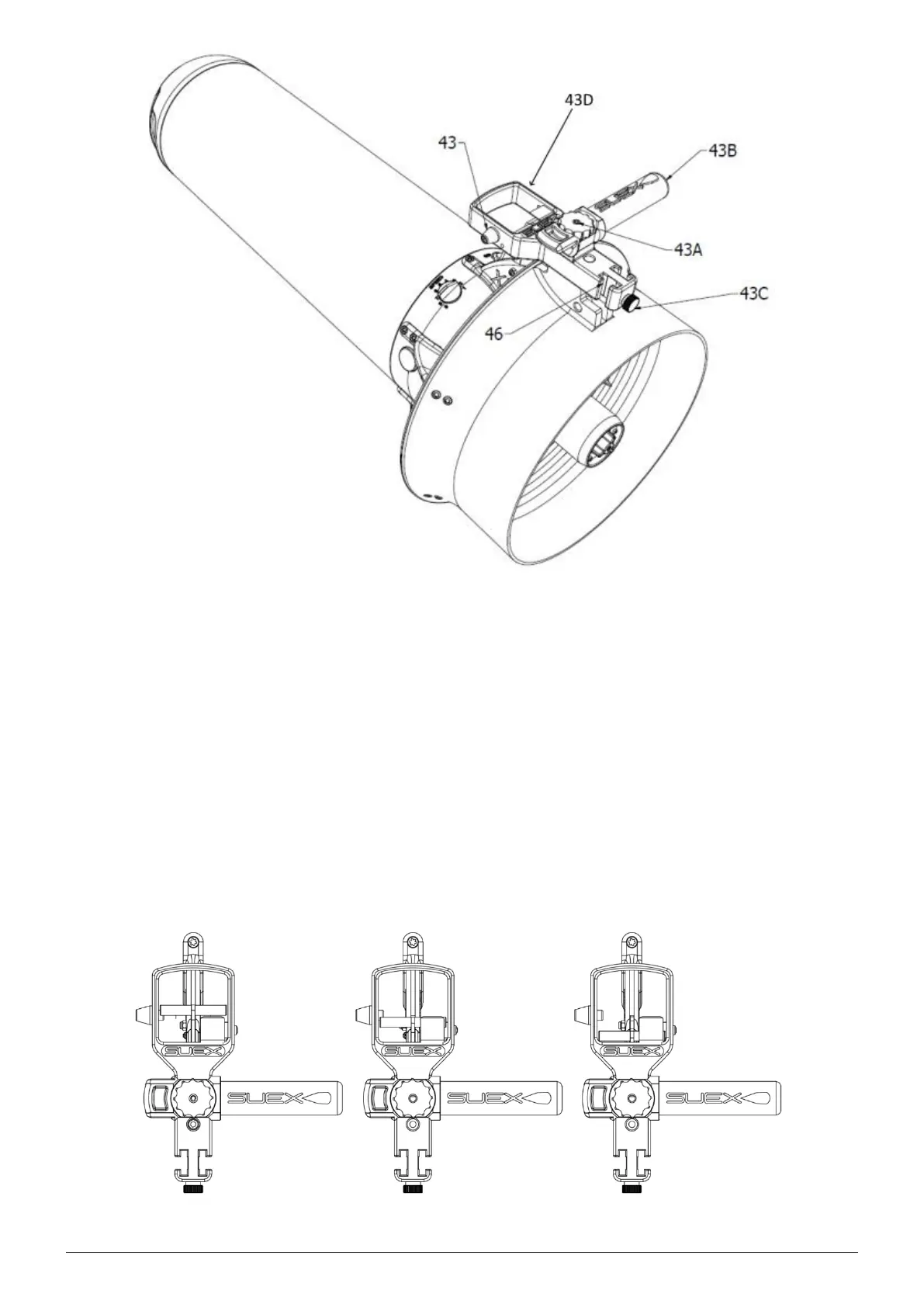

In the control device (fig. 7) we find: the trigger (43D), a fixing knob (43A) and a relative knob locking screw, a handle
(43B), an accessory fixing knob (43C), two seats for accessories (46) and cruise control (43).
The handle has four positions: two for use (right or left) and two for lifting (up or down).
As for use, the handle can be positioned on the right (as in Fig.7) or on the left.
To move the handle: unscrew the knob (43A) without removing it, rotate the handle, repositioning it on the opposite
side and screw the knob back on.
To make it easier to lift the SCOOTER, the handle can be positioned at the top or bottom, by unscrewing the knob
(43A) without extracting it, rotate the handle to the desired position and screw the knob back on.
The seat (46) is useful if the optional accessories are used (for more details visit the website: www.suex.it).
The cruise control knob (43) can be mounted either to the right or to the left of the handle.
The Scooter, as shown in the figure below, has two speeds:
• Position a): OFF;
• Position b): First speed adjustable using the speed adjustment knob (7 - Fig. 1);
• Position c): Second speed, maximum speed.
