TS32 USER MANUAL SECTION 6
68
A fluid sample at every 1000 hours is recommended.
For a free Sullube analysis, send fluid to:
Dow Chemical
Lubricant Technology Center
Building B-1605
Freeport, TX 77541
To facilitate this, a sample bottle is included with the
compressor.
6.6 PARTS REPLACEMENT AND
ADJUSTMENT
PROCEDURES
MAIN FILTER MAINTENANCE
Refer to Figure 6-1. The main filter (P/N 02250121-
638) is located schematically between the
compressor and the fluid stop valve. When servicing
the main filter, shut the compressor down, be sure all
pressure has been released, then follow the
instructions below. For element replacement order kit
number 02250139-996.
1. Drain the fluid from the canister by removing
the bottom drain plug
2. Loosen the spin-on canister using a wrench
on the bottom canister hex.
3. Pull the canister away from the filter head.
The filter element will be attached to the
head.
4. Separate the element from the head.
5. Remove the canister seals.
6. Thoroughly clean the filter head and canister
in solvent.
7. Lubricate the new seals with the same type
of fluid used in the compressor and position
each seal in its appropriate place.
8. Slide the element into the canister.
9. Thread the canister and element back on the
filter head.
AIR FILTER MAINTENANCE
Refer to Figure 6-2. Air filter maintenance should be
performed when the air filter maintenance message
is displayed. The air filter is equipped with a primary
element and a secondary element. As previously
stated, the Supervisor will alert you as to when the
primary element maintenance is necessary. When
removing the primary element, always check the
secondary element for visible dirt, grease or damage.
The secondary element must be changed after every
sixth primary element change. DO NOT clean the
secondary element.

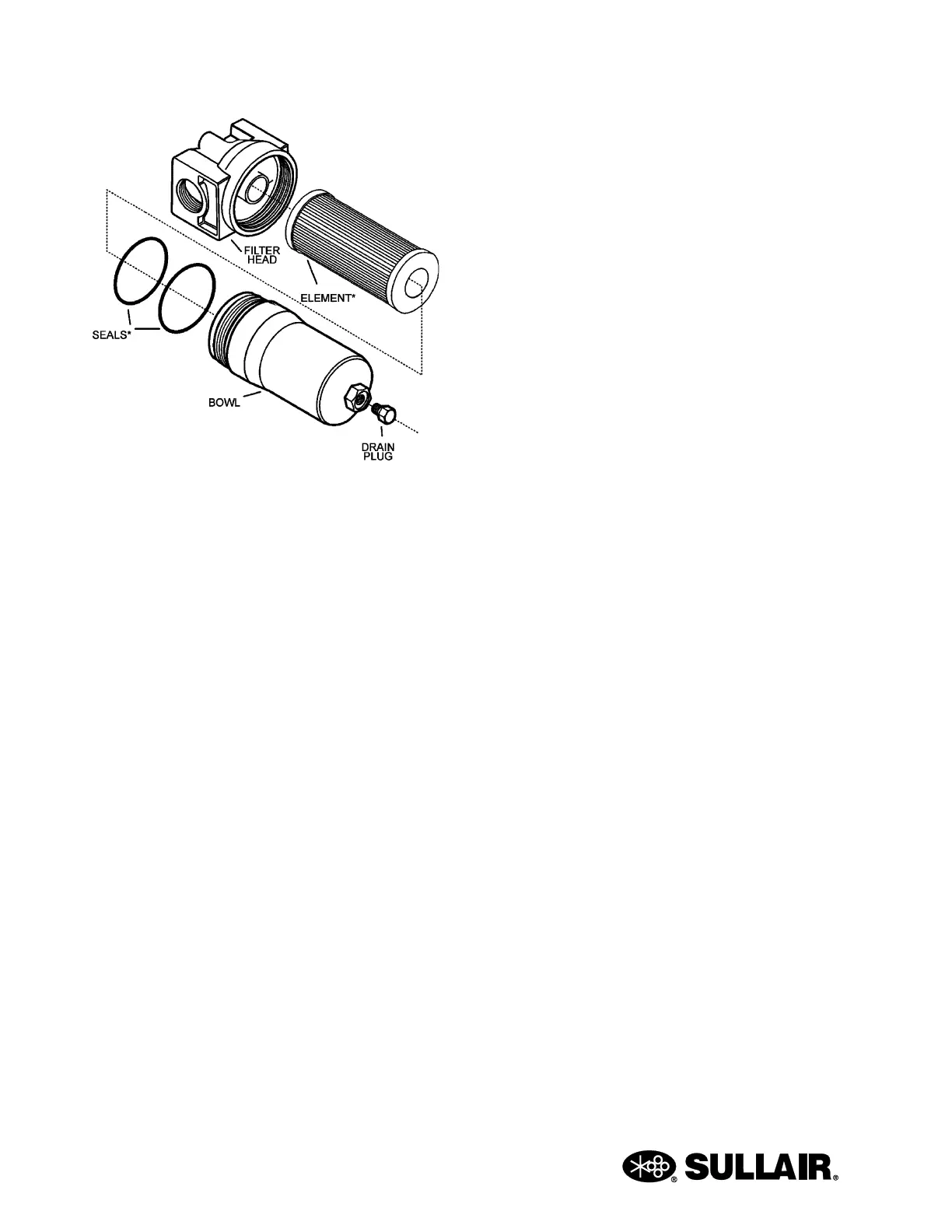

Figure 6-1: Main FIlter (P/N 02250121-638)
*Repair Kit P/N 02250139-996
