TS32 USER MANUAL SECTION 6
74
Table 6-1, tighten the motor mounting bolts and
recheck the offset and angular alignment. If the
vertical angular alignment is not within specifications,
shim the front or rear of the motor separately to
correct. Recheck the vertical offset.
STEP 4 INSTALL THE FLEXIBLE ELEMENT
Refer to shaft coupling maintenance for installation of
drive coupling element.

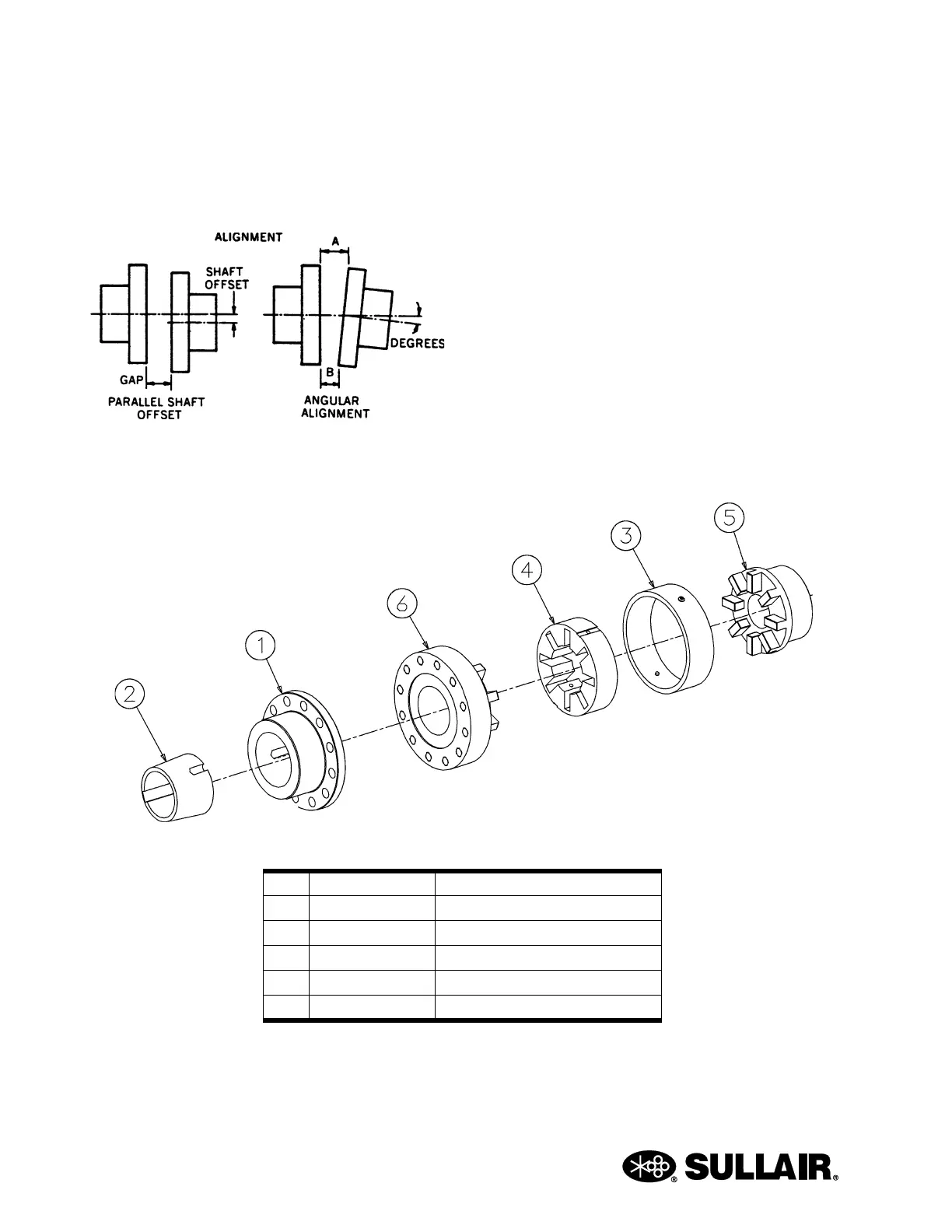

Figure 6-7: Drive Coupling Alignment
Figure 6-8: Coupling Detail
1 02250152-730 hub,taper-lock 40/50/60r
2 02250152-741 bushing,taper-lock 3.25 40/50/60r
3 COVER cover,cplg element 40r
4 ELEMENT element,cplg 40r
5 HUB hub, coupling 2.375 bore 40r
6 SPACER spacer,taper-lock 40r
