4
WIRING
1. Prior to wiring, refer to the name plate mounted to
the motor portion of the SM-Hyponic gearmotor.
Check the power supply, interconnects, relays,
protective starting devices (i.e., Star (Wye) delta – if
reduced voltage starting is required), space heaters,
thermal sensors and other accessories.
2. Be aware that long wiring may cause voltage drops.
3. Figures 14a – d show standard specifications for
wire connections and terminal marks. Figures
15a – d show specifications for inverter connections.
Figure 16 shows the rotating direction of the output
shaft when using wiring connections shown in
Figures 14a – d. Table 3 lists Brake lining size
specifications and Table 4 lists Varistor
Specifications.

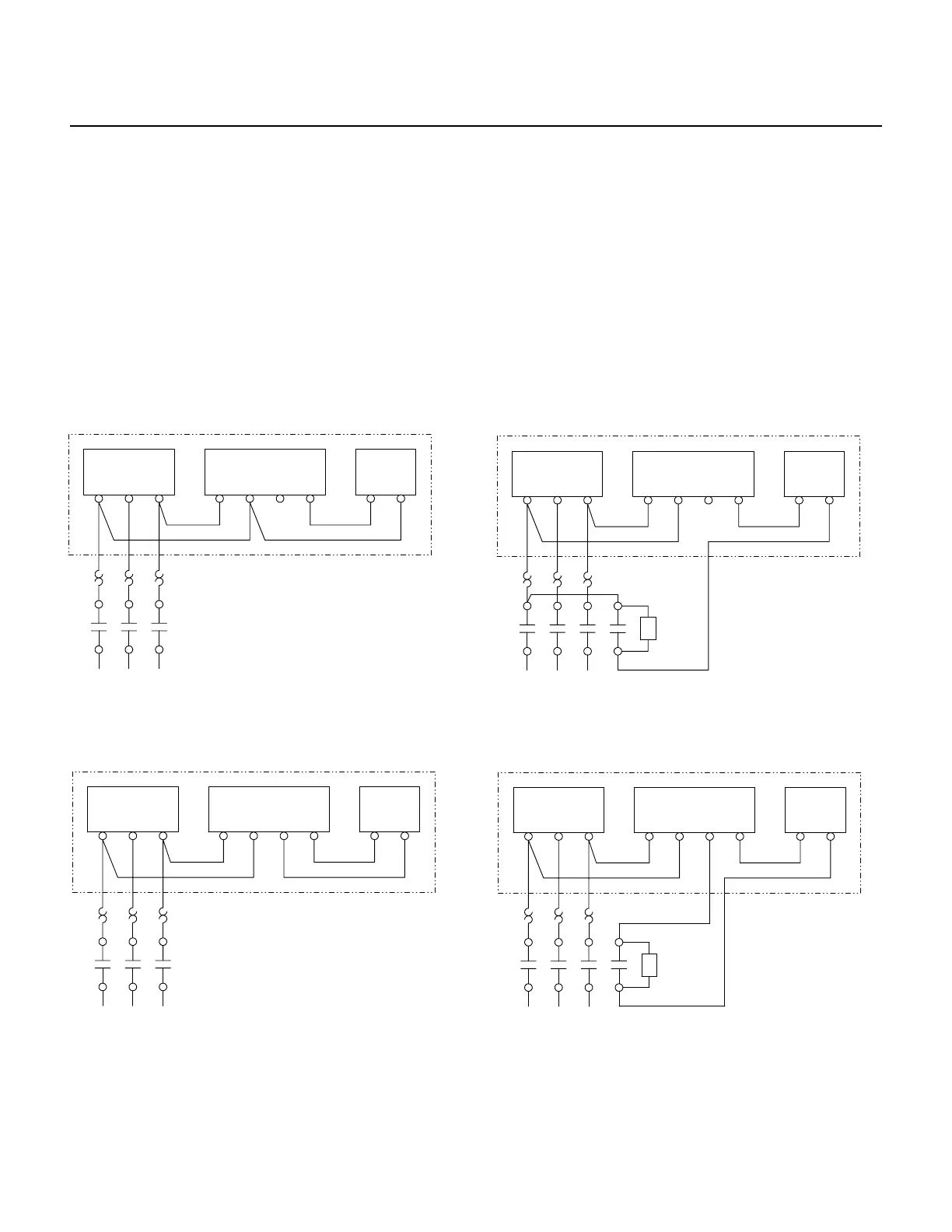

Fig. 14-a Normal Brake Action, High Voltage
Fig. 14-b Fast Brake Action, High Voltage
Fig. 14-d Fast Brake Action, Low VoltageFig. 14-c Normal Brake Action, Low Voltage
