7
Procedure 1b – Loading SumiMark Tubing

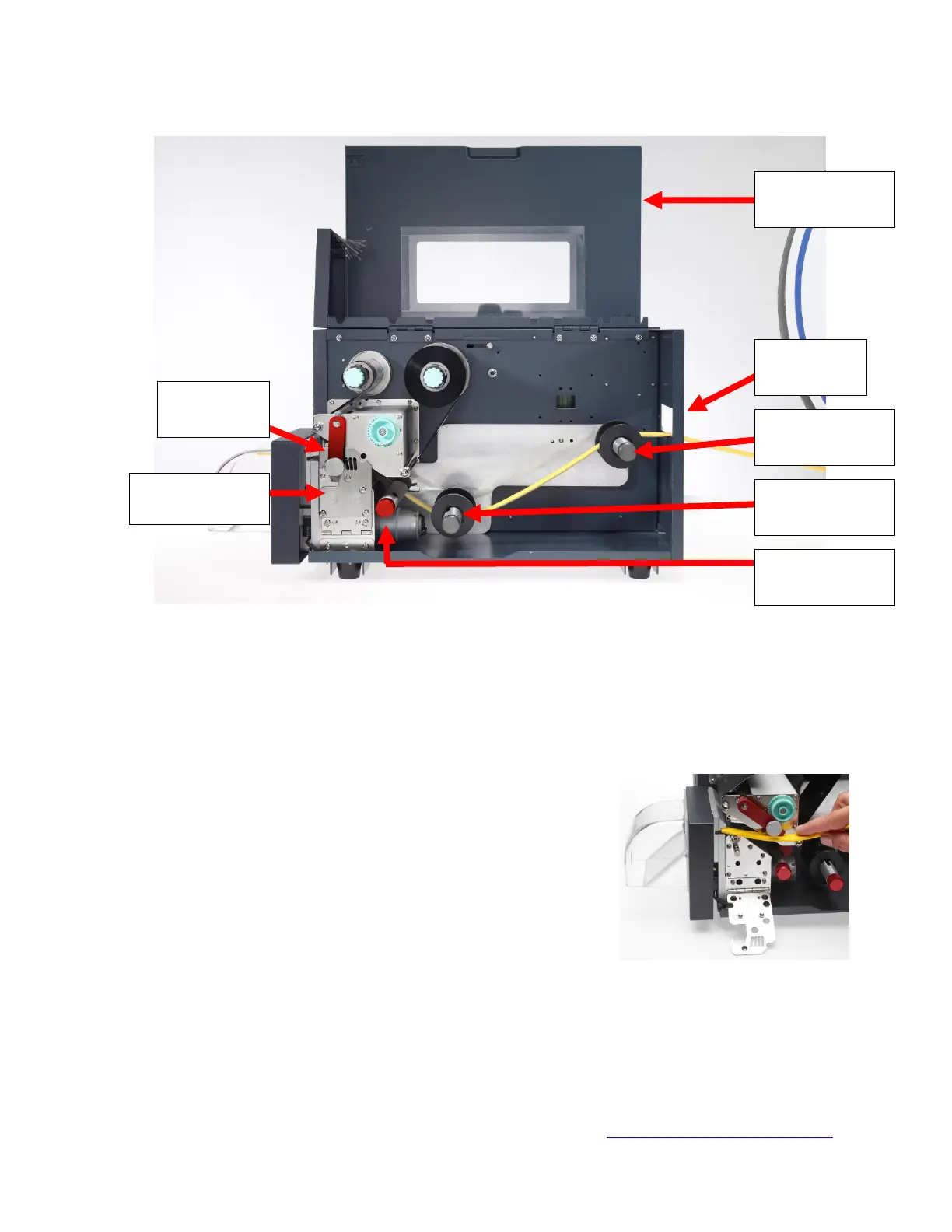

Figure 3a
1. Open the Tubing Access Cover.
2. Rotate the green Print Head Latch counter-clockwise to open the print head.
3. Open the Side Access Door to allow the tubing to be loaded.
4. Slide the SumiMark
®
tubing spool onto the freestanding Spool Assembly.
Tubing should be feeding from underneath the spool and into the Tubing
Access Slot from the back of the SumiMark printer.
5. Route the SumiMark tubing through the three (3)
Tubing Rollers as follows:
a. First, guide the tubing under the Print
Head and out through the cutter. Refer to
Figure 3b
.
b. Slide the tubing over the Primary Tubing
Roller between the red guide fingers.
c. Slide the tubing under the 2nd Tubing
Roller between the adjustable rollers.
d. Slide the tubing over the 3rd Tubing
Roller between the adjustable rollers.
6. Adjust the Tubing Guides on each roller until they are a hair’s width from, but
not touching, the tubing on each side. Important: The tubing should move
freely between all guides.
7. Close the Side Access Door and turn the Print Head Latch clockwise to the
fully closed position.
You can find a video detailing this procedure on the web: http://www.SumiSupport.com
