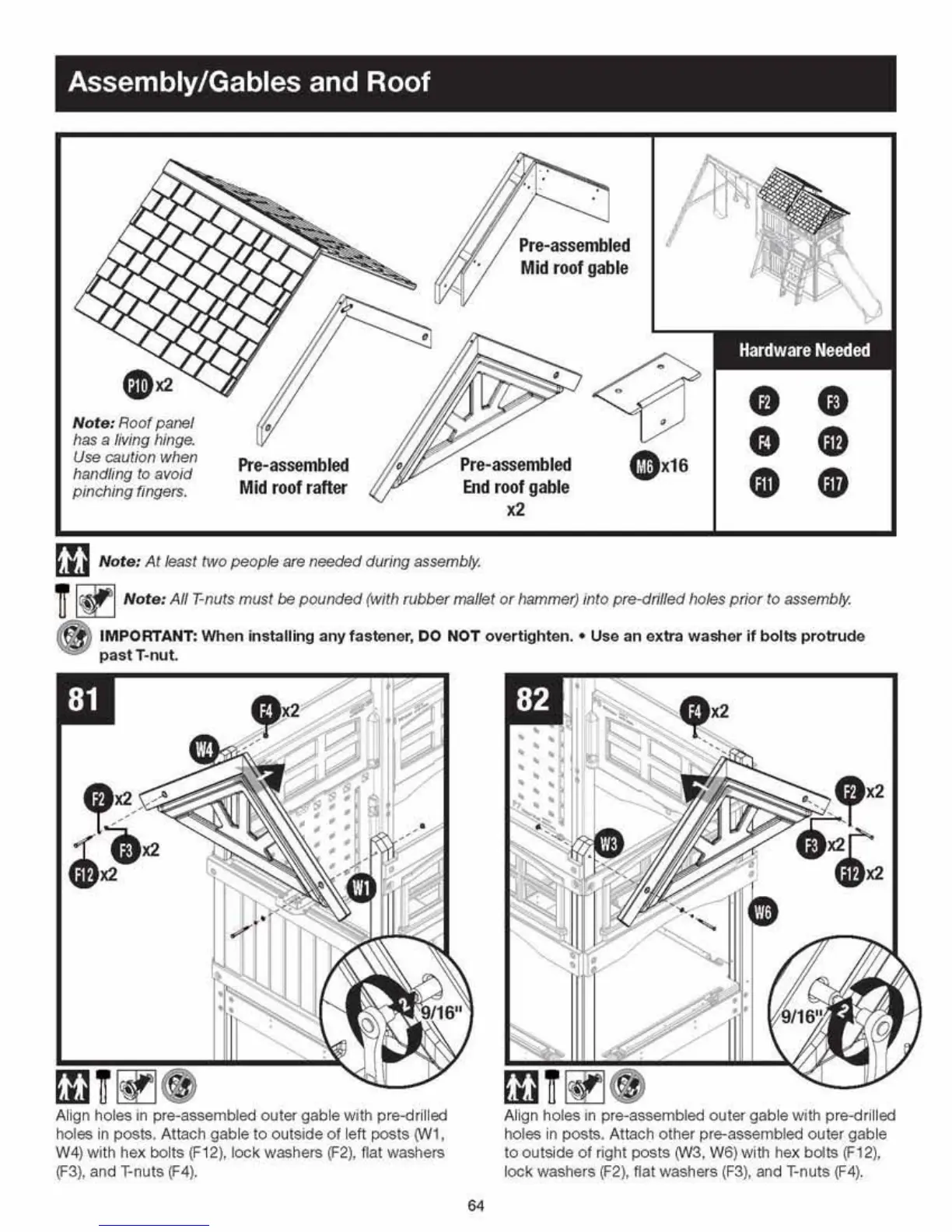

Assembly/Gables and Roof
Note: Roof panel
/las a living hinge.
Use caution when
handling
to avoid
pinching fingers.
Mid roof rafter
Pre-assembled
Mid roof gable
Pre-assembled
End roof gable
x2
8x16
Hardware Needed
•
0
•
m Note: At least two people are needed during assembly.
Note : A ll T-nuts must be pounded (with rubber mallet or hammer) into pre-drilled holes prior to assembly.
IMPORTANT: Wh en installing any fastener, 00 NOT overtighten. • Use an extra washer if bolts protrude
pas
tT - nut..
W11' ~
Align ho l es m pre-assembled outer gab le with pre- dri lled
ho les in posts . Attach gab le to outs i de of le ft posts {W 1,
W4 ) with he x bo l ts (F 12 ), l oc k washers (F2) , flat washers
(F3
), and T-nuts (F4).
64
Align ho l es m pre-assembled outer gab le with pre- dri lled
ho les in posts . Attach othe r pre-assembled outer gab le
to outs i de of right po st s IY'/3, W6 ) w it h he x bolts (F12),
l
ock washers (F 2), ffat washers (F3), and T-nuts (F4).
