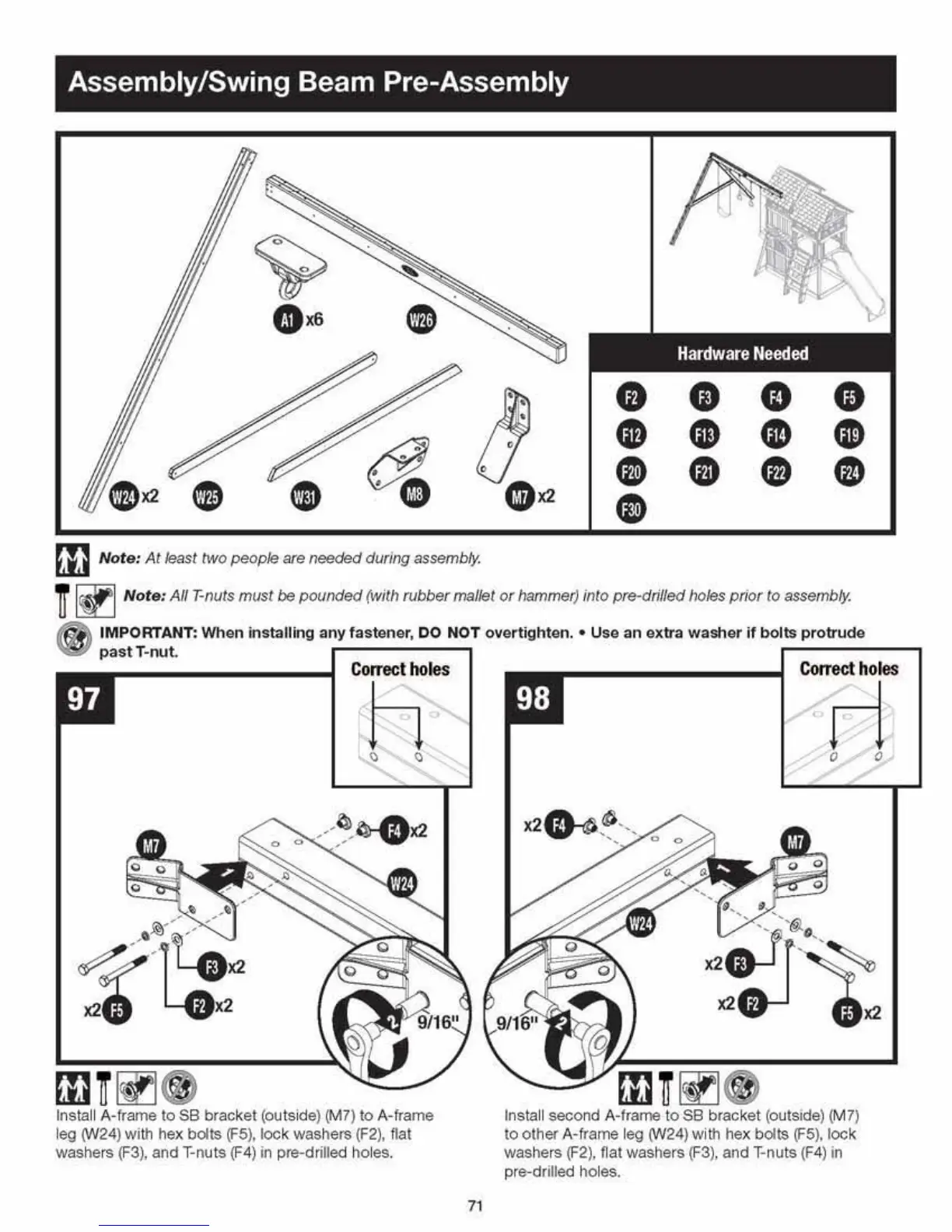

Assembly/Swing Beam Pre-Assembly
Hardware Needed
m Note: At least two people are needed during assembly
1r li!J Note : All T-nuts must be pounded (With rubber mallet or hammer ) into pre-drilled holes prior to assembly
IMPORTANT: When i nstalling any fastener, DO NOT overtighten. • U se an extra washer if bolts protrude
past T· nut.
Correct holes
h
' <:> I)
......
W1r ~
I ns ta ll A -f rame to SB brack et (ou tside) (M7 ) to A-frame
leg (W24) wi
th hex bolts (F5 ), l ock washers (F2 ), flat
washers
(F3), and T-nuts (F4) in pre-drilled ho les.
71
Correct holes
rl
0 0
I ns ta ll second A-frame to SB brack et (outsi de ) (M 7)
to other A· frame leg (W24) with hex bolts (F5 ), l ock
washers (F2), fl at washers (F3) , and T -nuts (F4) in
pr e-d rilled holes.
