Assembly/Swing Beam Pre-Assembly {continued)
Topside < V'.ew
'
0
0
0
•

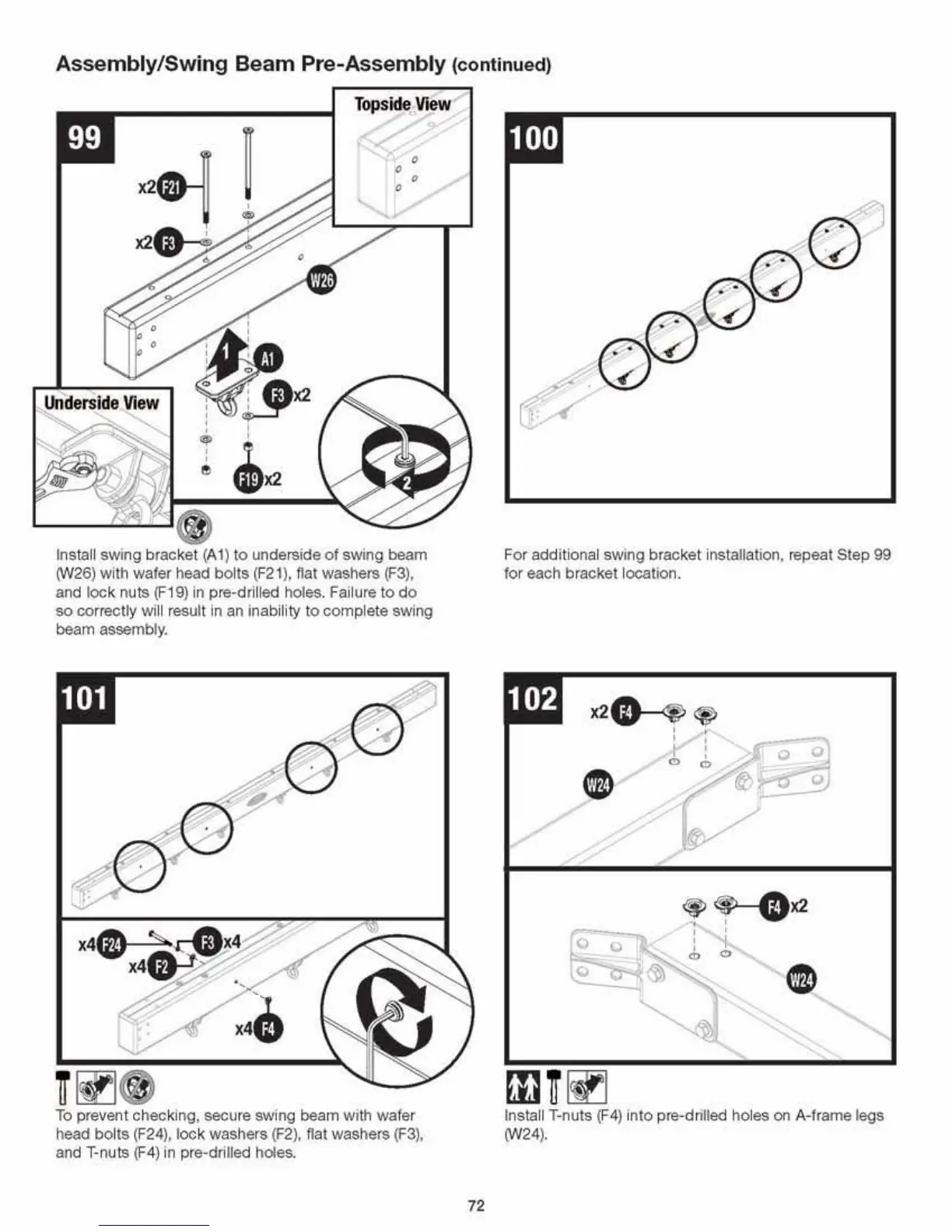

Install swing bracket (A 1) to underside of swing beam
rJI/26) with wafer head bo l ts (F21), Oat washers (F3) ,
and l
ock nuts (F19) In pre-drilled holes. Failure to do
so cor rectly will result in an inability to complete swing
beam assembl
y.
To prevent checking, secure swing beam wi th wafer
head
bolts (F24), l ock washers (F2), Oat washers (F3),
and T-nuts (F4) in pre-drilled holes.
72
lllliJ
For additional sw i ng bracket install at ion, repeat Step 99
for each bracket l ocat ion.
x2~ ~
' '
e
m~ ~
0 I
t" I
C) 6
~ ~x2
~. I
I '
1 I
I l
"' C)
I ns tall T-nuts (F4) into pre-drilled ho les on A-frame l egs
rJI/24).
