Assembly/Swing Beam Pre-Assembly {continued)

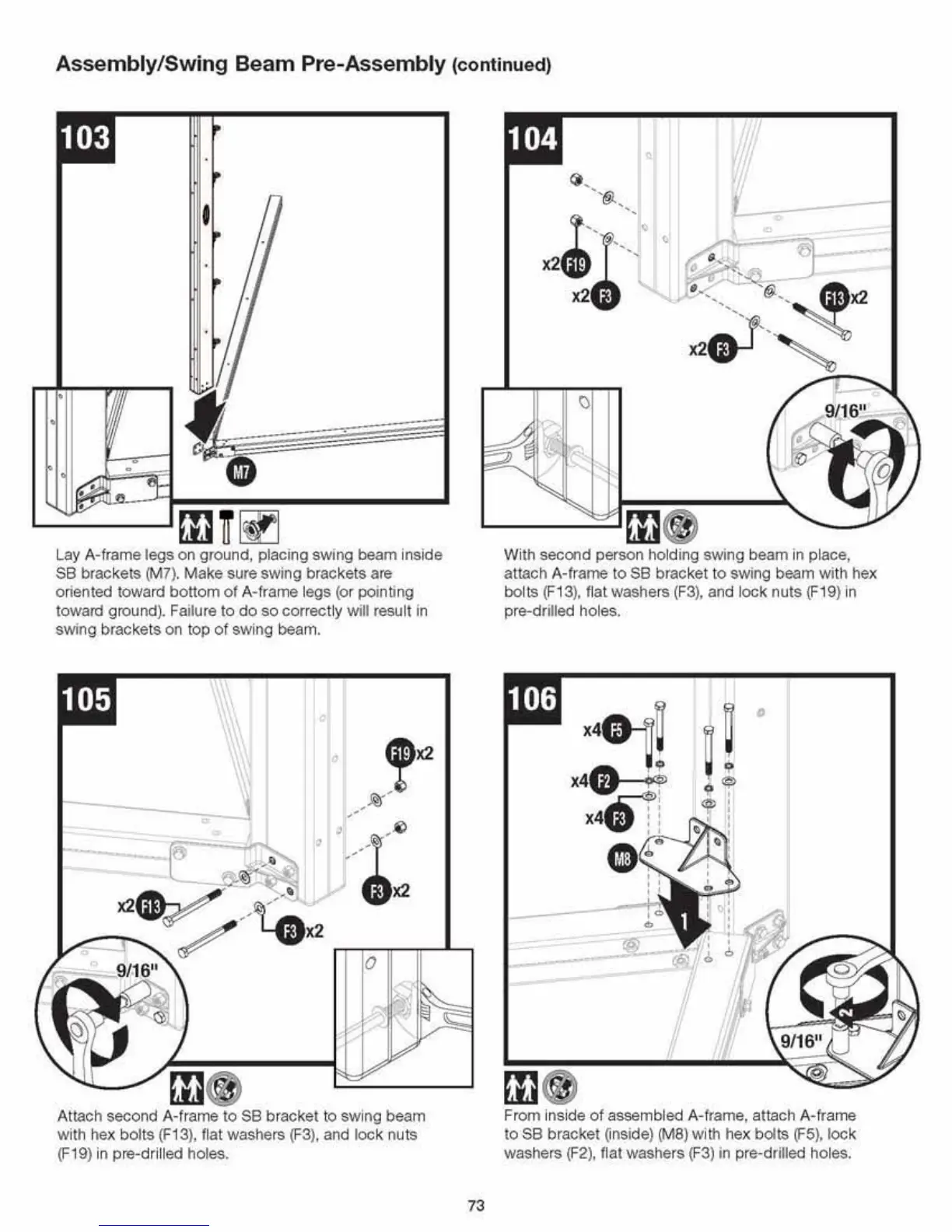

Lay A- frame legs on ground, pl ac ing sw ing beam i ns i de
SB brackets (M7). Make su re sw ing brackets are
oriented toward
bottom of A-frame legs (or po inting
toward ground). Failure
to do so cor r ec tl y will result in
swing br ac ke ts on top of swing beam.
A ttach second A- frame
to SB bracket to swing beam
with hex bolts (F 13) , flat washers (F3), and l
oc k nuts
(F19} in pre-drilled
ho les.
73
With second pe r son ho lding sw ing beam in place,
attach A-frame
to SB bracket to sw ing beam with hex
bo lt s ( F1 3 ), flat washers (F3), an d lock nuts ( F1 9) in
pr
e-dr illed ho les.
0
m
Fr om i ns ide of assembled A-frame, at ta ch A-frame
to SB bracket ~ns i de ) (M8) with hex bolts (F5 ), l ock
washers (F2), fl at washers (F3) in pr e-d rilled ho les.
