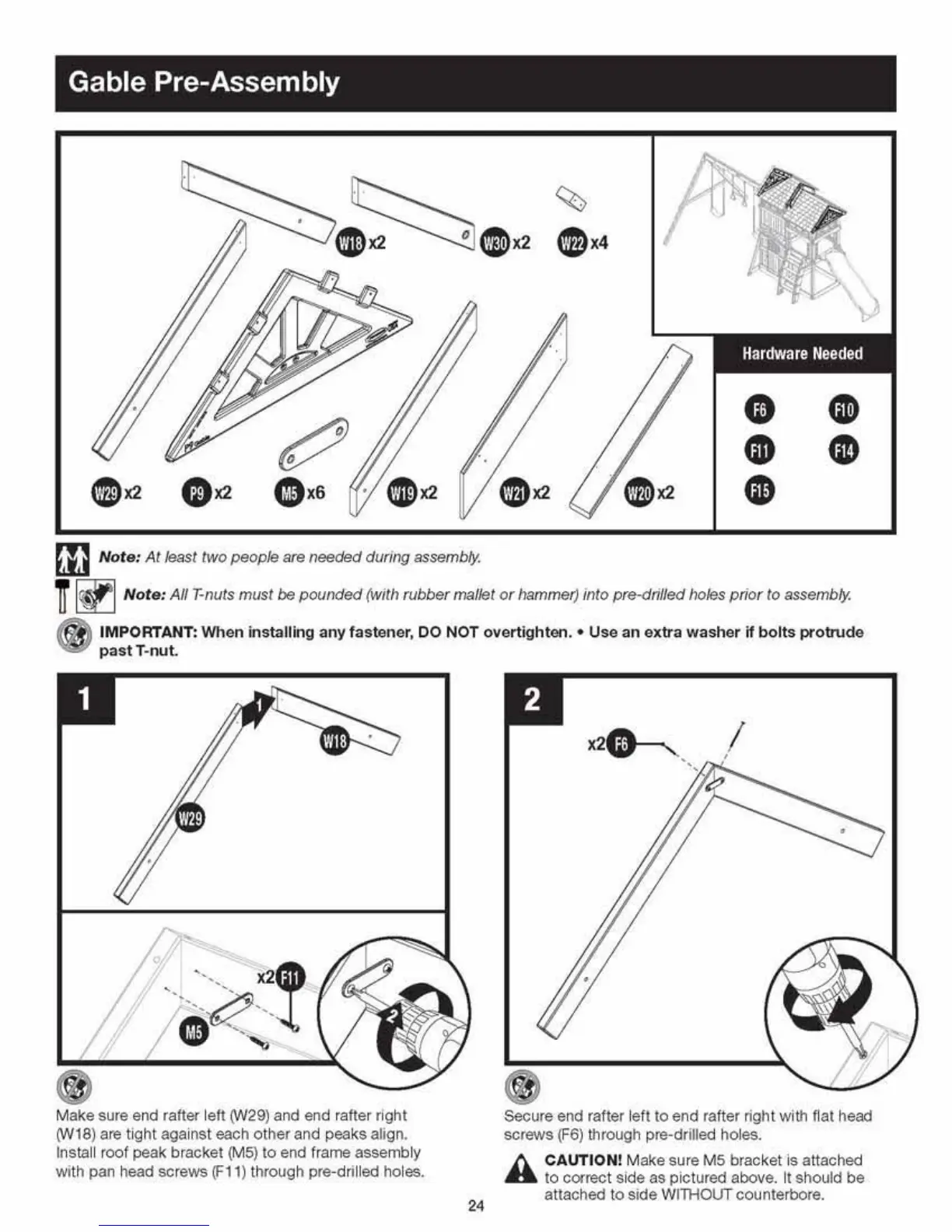

Gable Pre-Assembly
Ha rdware N eeded
[I) Note: At least two people are needed during assembly
~ li!J Note : A ll T-nuts must be pounded (with r ubb er mallet or hammer) into pre-drilled holes prior to assembly
IMPORTANT: When installing an y fastener , DO NOT overtighten . • Use an e xtra washer if bolts protrud e
pa
stT - nu t
Make sure end rafter left 0N29) and
en d rafter ri ght
0N18) are tight aga i nst each other and peaks align.
Install r
oo f peak bracket (M5) to end frame assembly
wi th pan head screws (F11 ) through pre-dri ll ed ho les.
24
x2G---- .
',,
I
'
Secure end rafter left to end raf te r right wi th fl at head
screws
(F6) through pre- dr illed ho les.
h CAUTION! Make sure M5 bra ck et is a ttached
.. to correct side as pic tured above. It should be
attached to si de Wl lHOUT counterbore.
