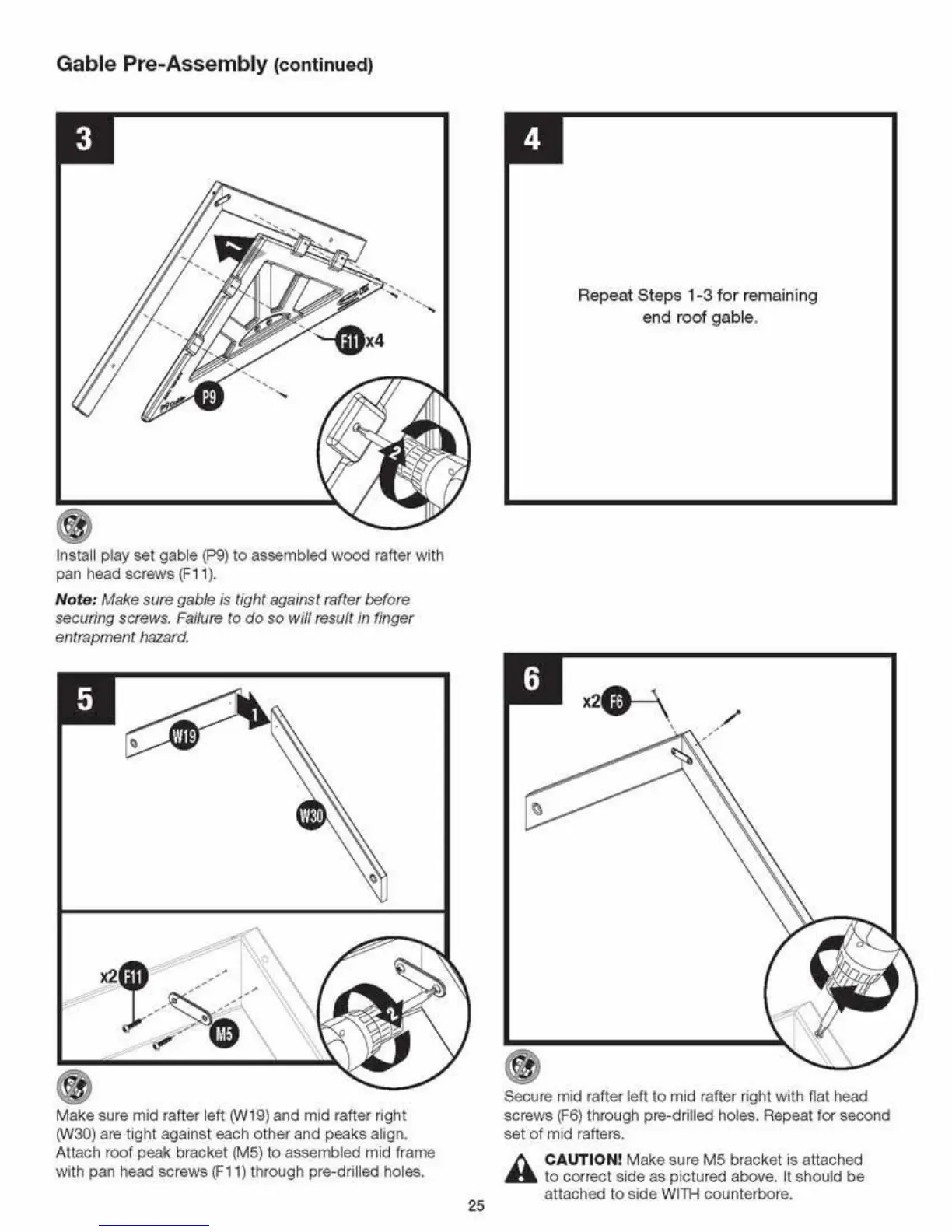

Gab le Pre-Assembly (continued)
In stall play set gab le (P9) to assembled wood rafter wi th
pan head screws (F
11 ).
Note: Make sure gable is tight against rafter before
securing screws. Failure
to do so will result in finger
entrapment hazard.
Make sure mid ra ft er le ft (W19) and m1d ra fter ngh t
(W30) are tight aga i nst each other and peaks align.
Attach r
oof peak bracket (M5) to assembled mid frame
with pan head screws (F11) through pre-drilled ho les.
25
Repeat Steps 1-3 for remaining
end roof gable .
Secure m
id rafter left to mid rafter right wi th flat head
screws
(F6) through p re-drilled holes. Repeat fo r second
set of mid ratters.
r1,. CAUTION! Make sure M5 bracket is attached
.. to cor rect side as pictured above. It should be
attached to s ide WITH counterbore.
