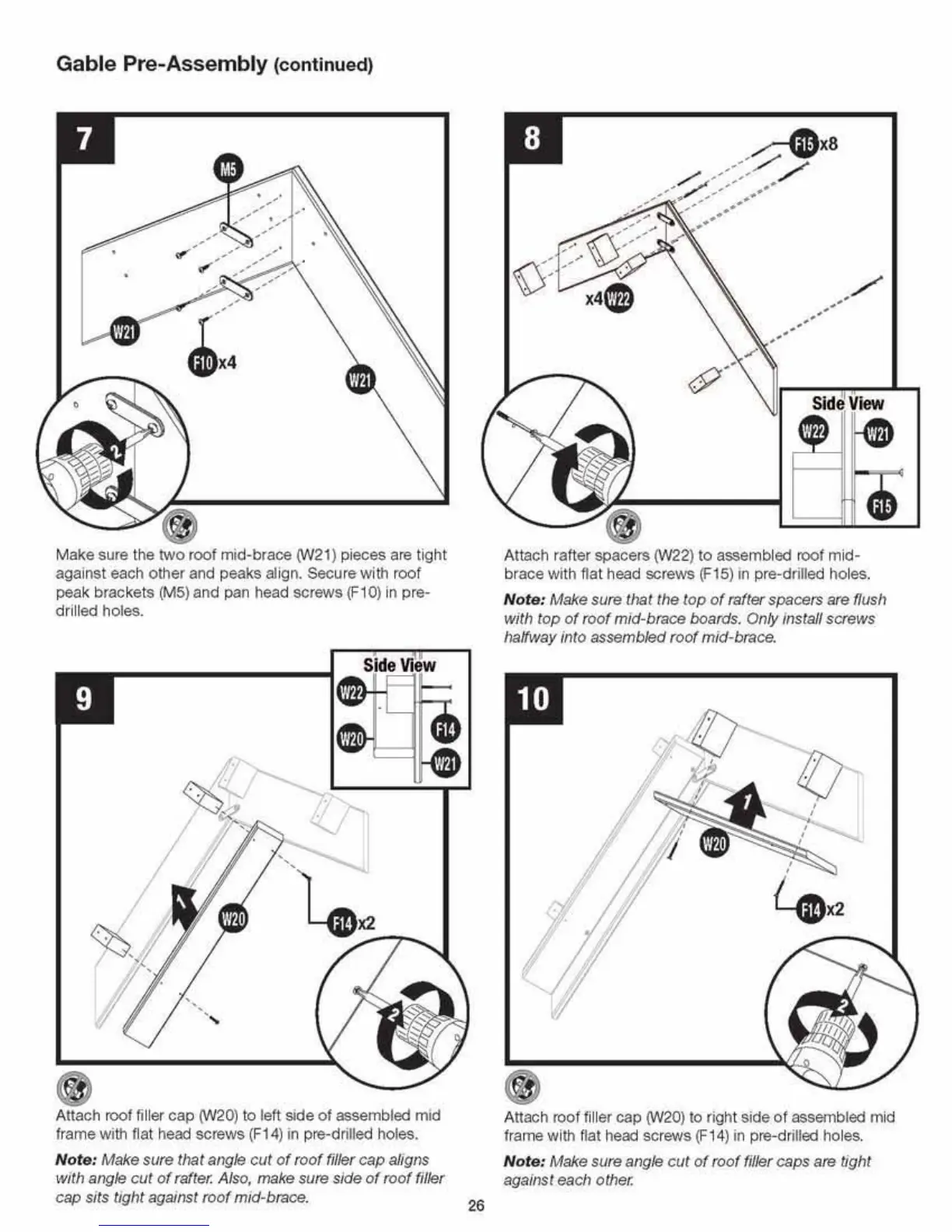

Gable Pre-Assembly (continued)
Make
sure the
two
roof
mid-brace (W21) pieces are tight
against each
other
and peaks align. Secure with
roof
peak brackets (M5) and pan head screws (F 1 0) in
pre-
dri
lled holes.
Attach roof
fi
ller
cap
(W20) to
le
ft side
of
assembled mid
frame wi
th
flat head screws (F14) in pre-drilled holes.
Note: Make sure that angle
cut
of
roof
filler
cap
aligns
with angle cut
of
rafter.
Also,
make sure side
of
roof
filler
cap
sits tight against
roof
mid-brace.
26
Attach rafter spacers (W22)
to
assembled roof
mid-
brace with ffat head screws
(F15)
m pre-drilled
ho
les.
Note: Make
sure
that the
top
of
rafter spacers are flush
with
top
of
roof
mid
-brace boards. Only install screws
halfway into assembled
roof
mid-brace.
Attach roof filler
cap
(W20) to right side
of
assembled mid
f
ra
me
with ffat head
sc
r
ews
(F 1
4)
in pre-drilled
ho
les.
Note: Make sure angle
cut
of
roof
filler caps are tight
against each other.
