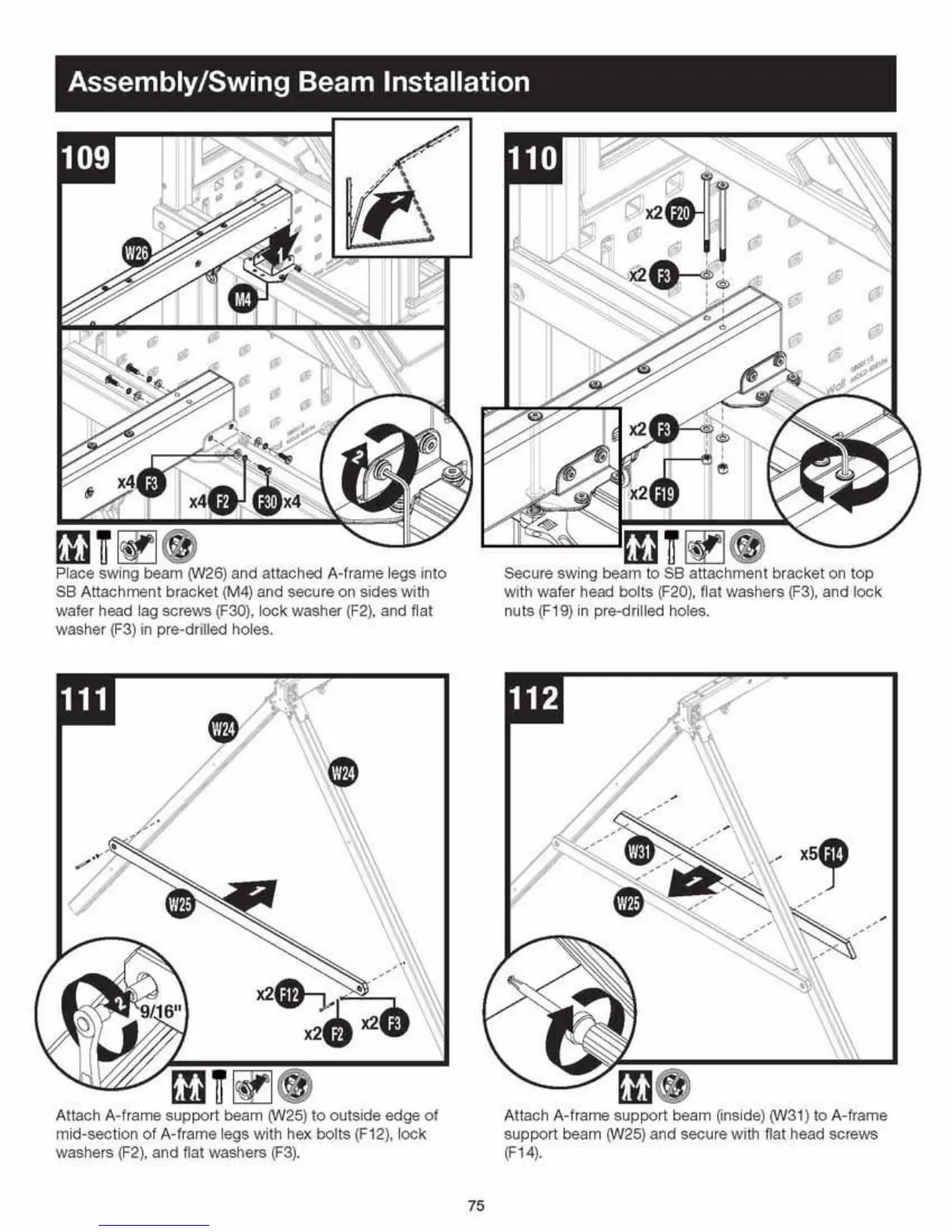

Assembly/Swing Beam Installation
Wtr
~
Place swing beam rN26) and attached A-frame legs into
SB Attachment bracket (M4) and secure
on
s
ide
s
with
wafer head lag screws (F30), lock washer
(F2},
and flat
washer (F3) in pre-drilled
ho
les.
Attach A-frame support beam (W25)
to
outs
1de
edge
of
mid-section
of
A-frame legs with hex
bolts
(F12),
lock
washers
(F2),
and
flat washers
(F3).
75
Attach A-frame support beam
~n
side)
rN31)
to
A-frame
support beam rN25)
and
secure with
Oat
head screws
(F14).
