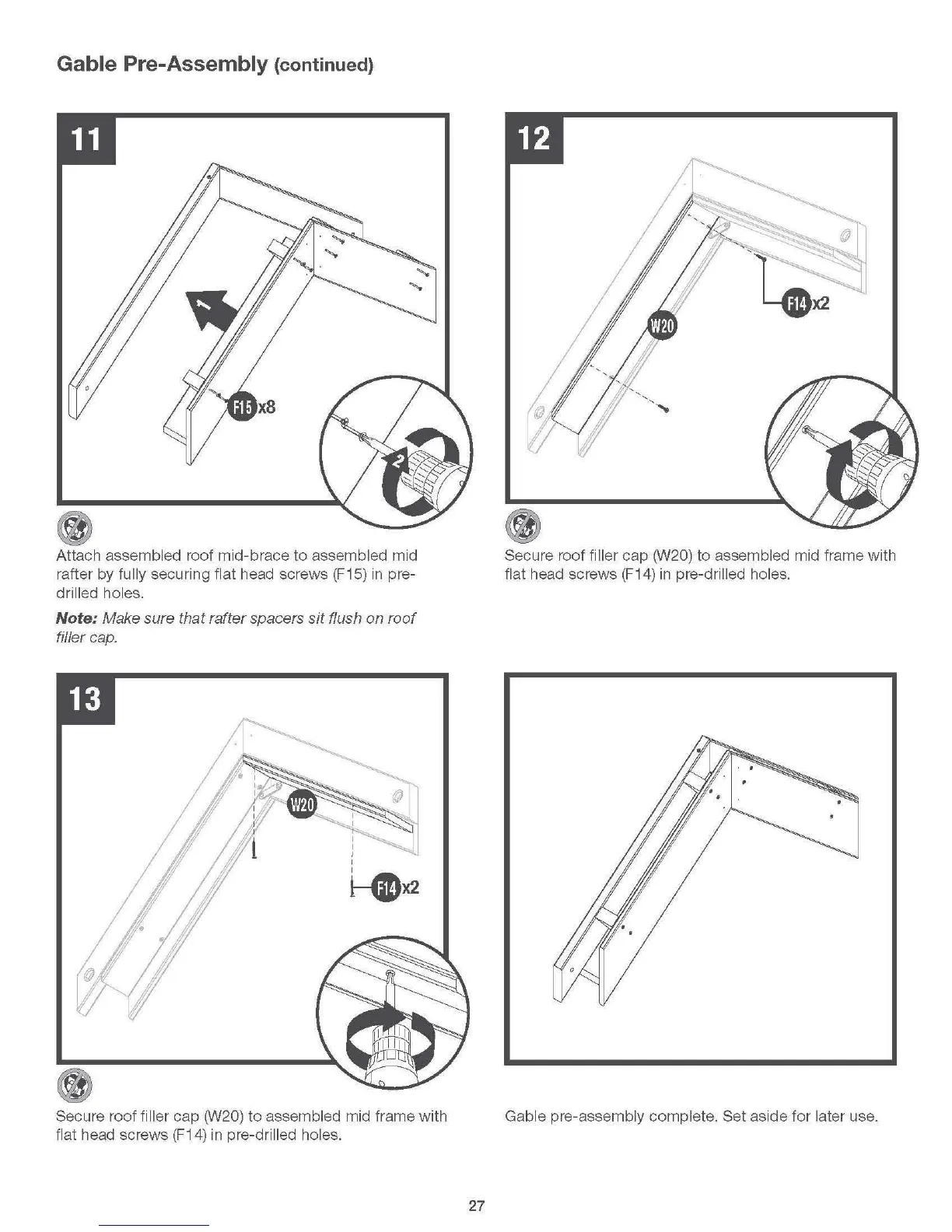

Gable Pre-Assembly (continued)
•
Attach assembled roof mid-brace to assembled mid
rafter by fully securing flat head screws
(F15) in pre-
drilled holes.
Note: Make sure that rafter spacers sit flush on roof
filler cap.
I
I
I
I
~x2
Secure roof filler cap 0N20) to assembled mid frame with
flat head screws
(F14) in pre-drilled holes.
27
Secure roof filler cap 0N20) to assembled mid frame with
flat head screws
(F 14) in pre-drilled holes.
Gable pre-assembly complete. Set aside for later use.
