Sunfar E500-2S0022(B) - 2 Inverter Installation 7

Inverter Installation 7
E500 Series Universal Low-Power Inverter
The specific installation dimensions of E500 series inverters are shown in
following table:
Inverter model
(three-phase
380V)
Inverter model
(single-phase
220V)
W1 W H1 H D
Screw
specification
- E500-2S0004(B)
67.5 81.5 132.5 148 134.5 M4
- E500-2S0007(B)
E500-4T0007(B) -
86.5 101.5 147.5 165 154.5 M4
E500-4T0015(B) E500-2S0015(B)
E500-4T0022(B) E500-2S0022(B)
E500-4T0030(B) E500-2S0030(B)
100 110 190 205 169.5 M5
E500-4T0040(B) E500-2S0040(B)
Applicable models: E500-2S0015 (B) ~2S0040 (B)/E500-4T0007 (B) ~4T0040 (B),
As shown in Figure 2-2-B.

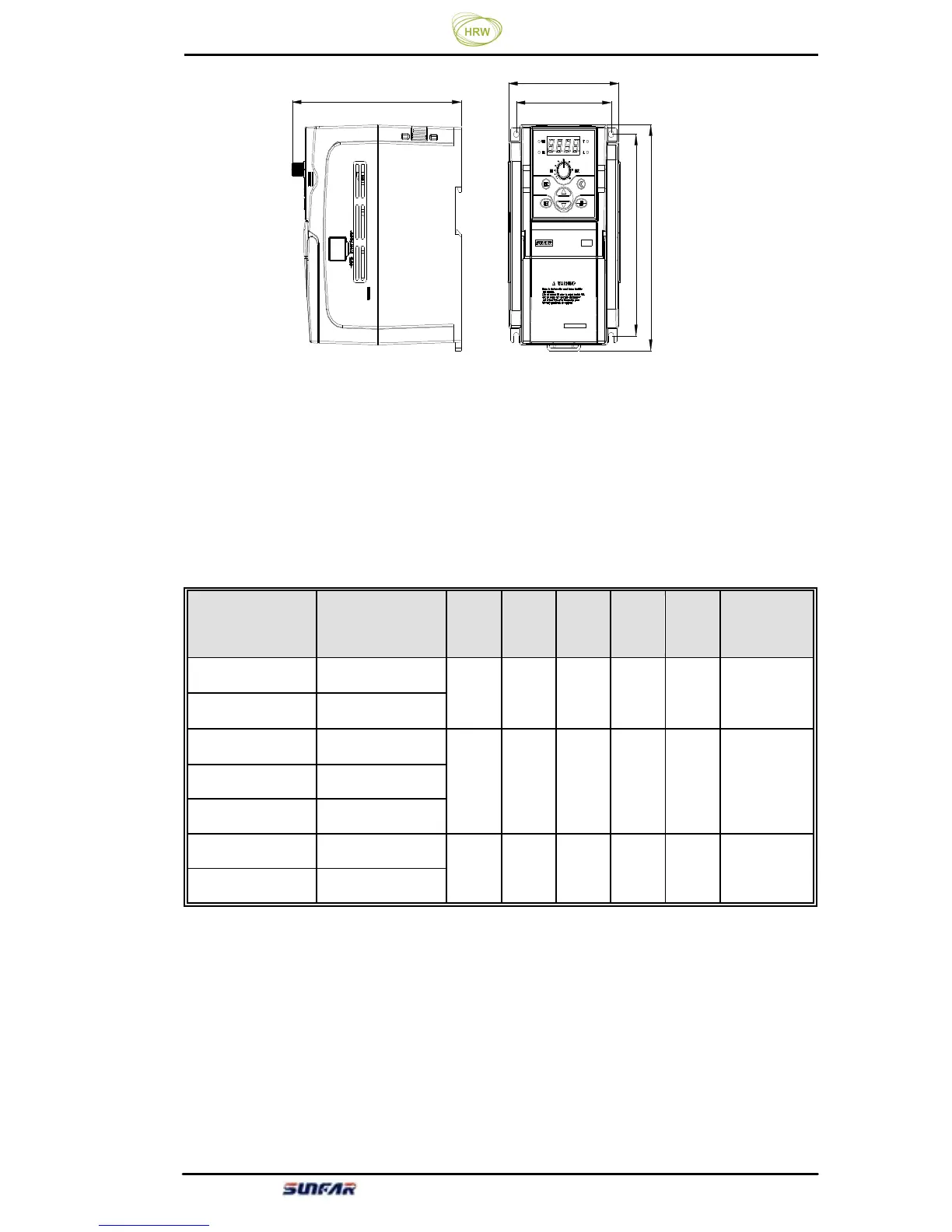

Figure 2-2-B Inverter Installation Dimension 2
2S0015
E500
H1
H
D
W
W1
