CHAPTER
SIX
APPENDIX
For new Raspberry Pi users, the following sections are essential operations that will need to be used for doing certain
projects. Please read these sections carefully.

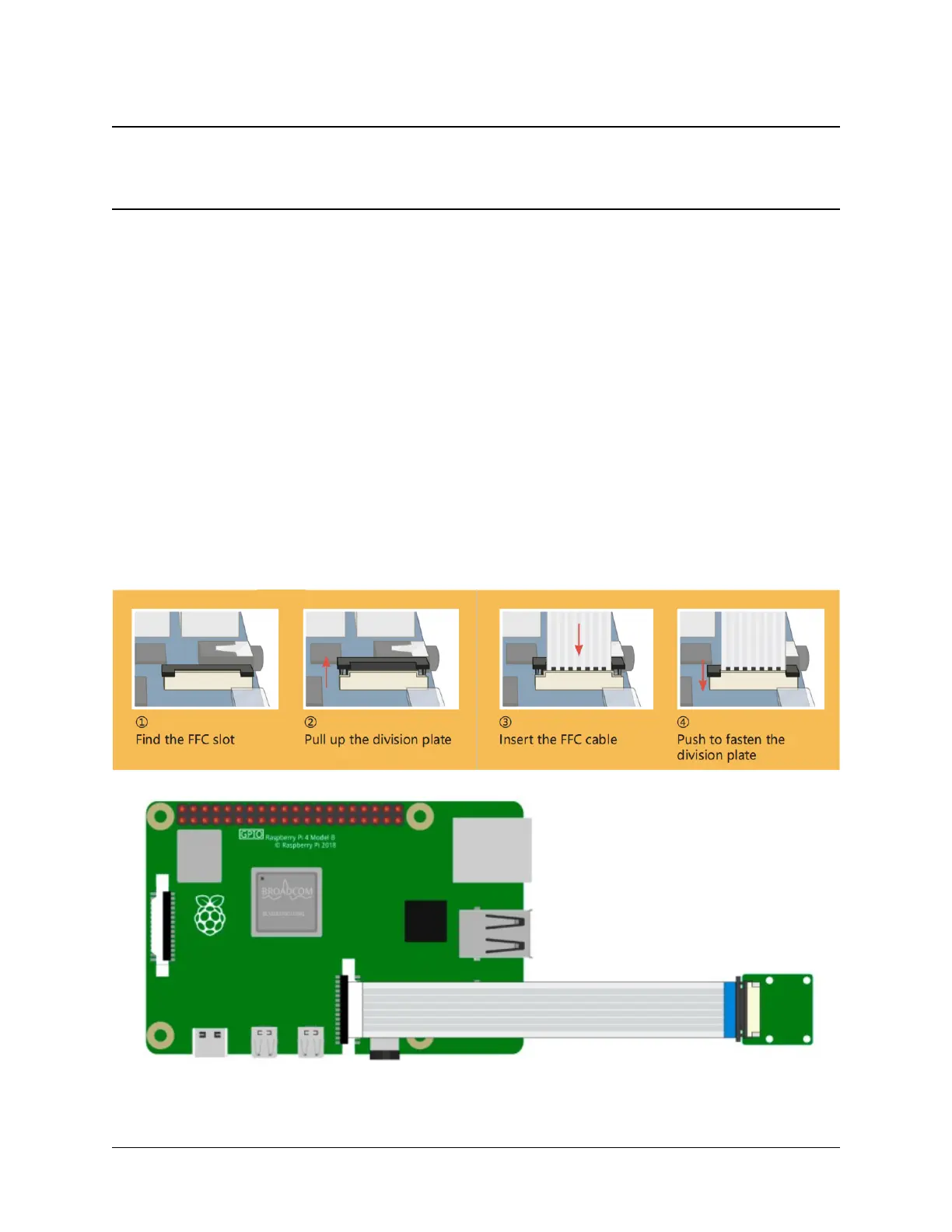

6.1 Assemble the Camera Module
On the camera module or Raspberry Pi, you will find a flat plastic connector. Carefully pull out the black fixing switch
until the fixing switch is partially pulled out. Insert the FFC cable into the plastic connector in the direction shown and
push the fixing switch back into place.
If the FFC wire is installed correctly, it will be straight and will not pull out when you gently pull on it. If not, reinstall
it again.
193
