19

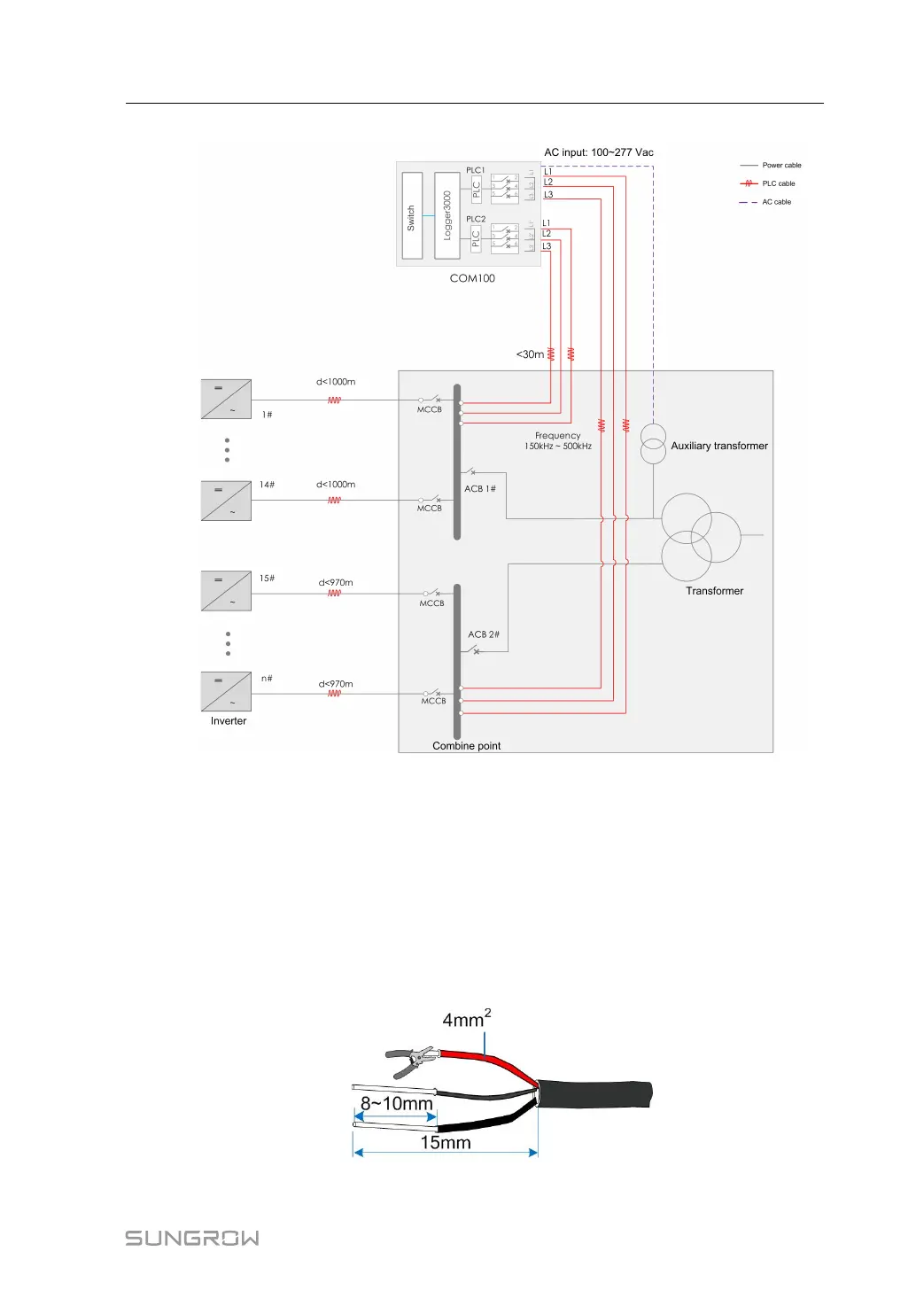

ffiigguurree 44--22 Connection to double-split transformer
PPrreeppaarraattiioonn bbeeffoorree IInnssttaallllaattiioonn
Before wiring, ensure that upstream AC switches and circuit breakers inside COM100
are all disconnected.
IInnssttaallllaattiioonn SStteeppss
step 1 Unscrew the waterproof terminal "Input AC 400V/480V/540V/800V" at the bottom of
COM100, and lead external AC cable through the terminal.
step 2 Strip the cable jacket with a wire striper, as shown in the figure below.
step 3 Crimp the OT terminal, whose specification is recommended to be OT2.5-6.
User Manual 4 Electrical Connection
