User Manual 4. Mechanical Installation
9
5.2 Requirements for Installation Location
This section is intended to instruct the user to select an optimum installation
location.
The local controller with protection degree IP20 can only be installed
indoors.
The ambient temperature range is -30℃ to +60℃.
The humidity cannot exceed 95%. Otherwise, internal components can be
damaged.
Take proper damp-proof and anti-corrosion measures.
5.3 Installation
The local controller can be installed at any indoor locations provided that the
requirements above are met.
5.3.1 Rack Mounting
In the rack mounting manner, the standard 1U rack is used, and installation
steps are as follows:

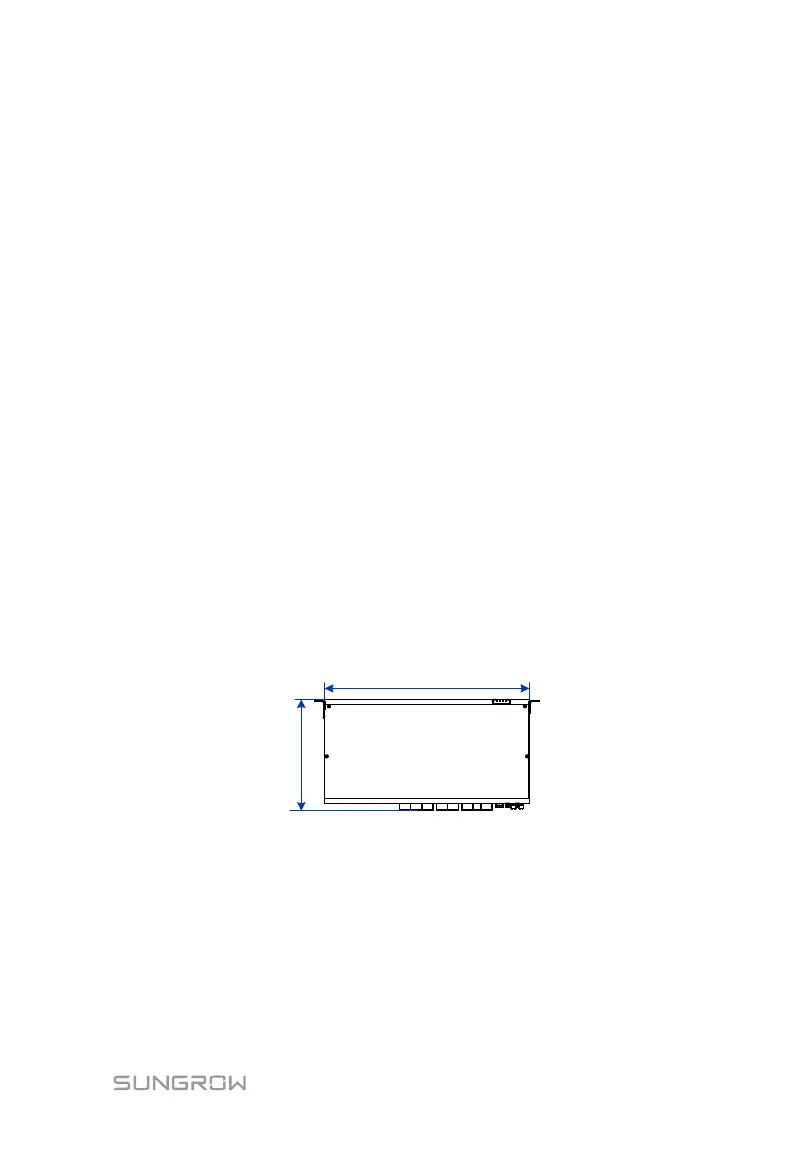

Step 1 The distance between the two hangers of the local controller is shown in
the following figure.
Step 2 Select an appropriately sized rack according to the distance, and insert
the local controller into the rack.
