4. Mechanical Installation User Manual
10
Step 3 Fix the local controller according to the sequence of bolt, hanger, rack,
and nut.
5.3.2 Wall Mounting

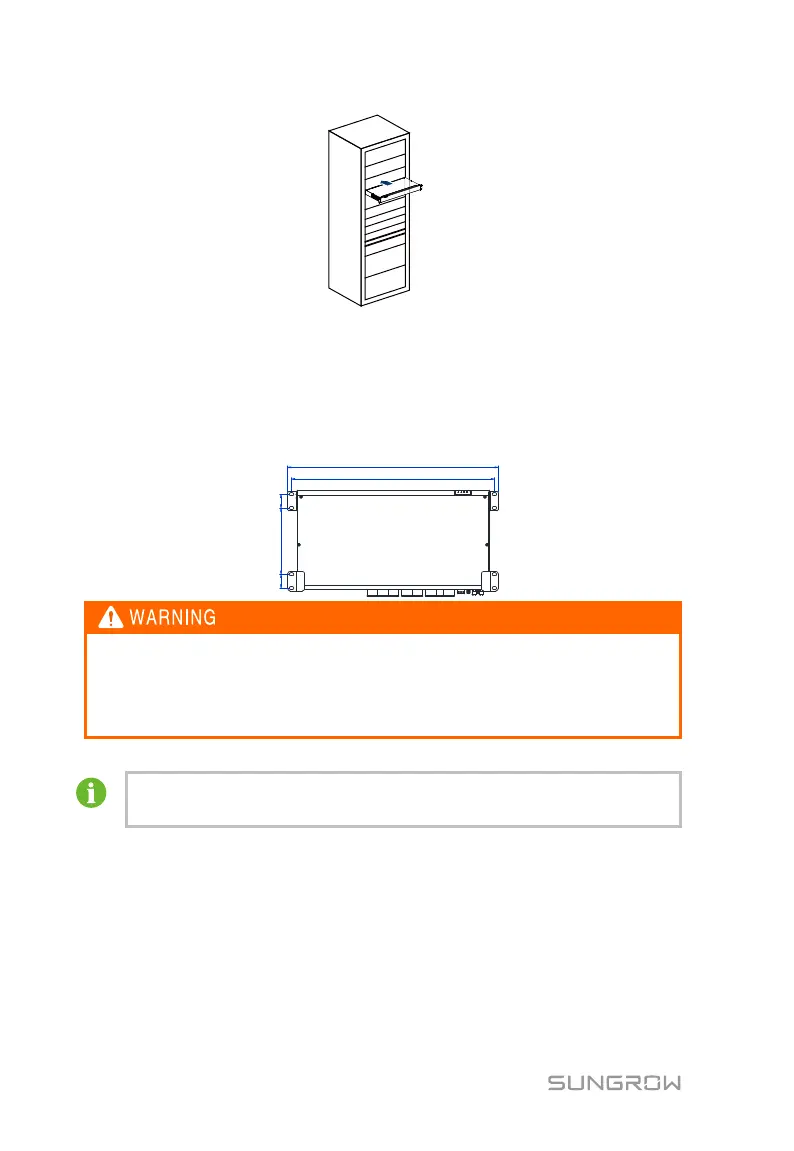

Fix the local controller through the hangers at the four corners. Installation
distances between the hangers are shown in the following figure.
Consider the weight of the local controller during the whole installation
process!
Tilting or falling of the device caused by inappropriate operations
could result in personal injury!
It is recommended to install the local controller at a location 1.5m
above the ground and reserve at least 0.5m for future maintenance.
Step 1 Prepare installation tolls including the impact drill, expansion solenoids,
washers, tapping screws, and torque screwdriver.
Step 2 Select an installation surface and mark drilling positions on the target
area considering distances between the local controller and ambient
objects.
