7
table 2-1 Design of the product
Position
Designation
A
LED Indicator
LED indicator include the SOC indicator and the status indicator. The status
indicator is also used as the power button.
LED indicator indicates the SOC value and status of the battery system.
B
Nameplate
The nameplate clearly indentifies the product. The nameplate must remain
permanently attached to the product. You will find the following information
on the nameplate:
SUNGROW logo and product model
Technical data
Product symbol
C DC circuit breaker

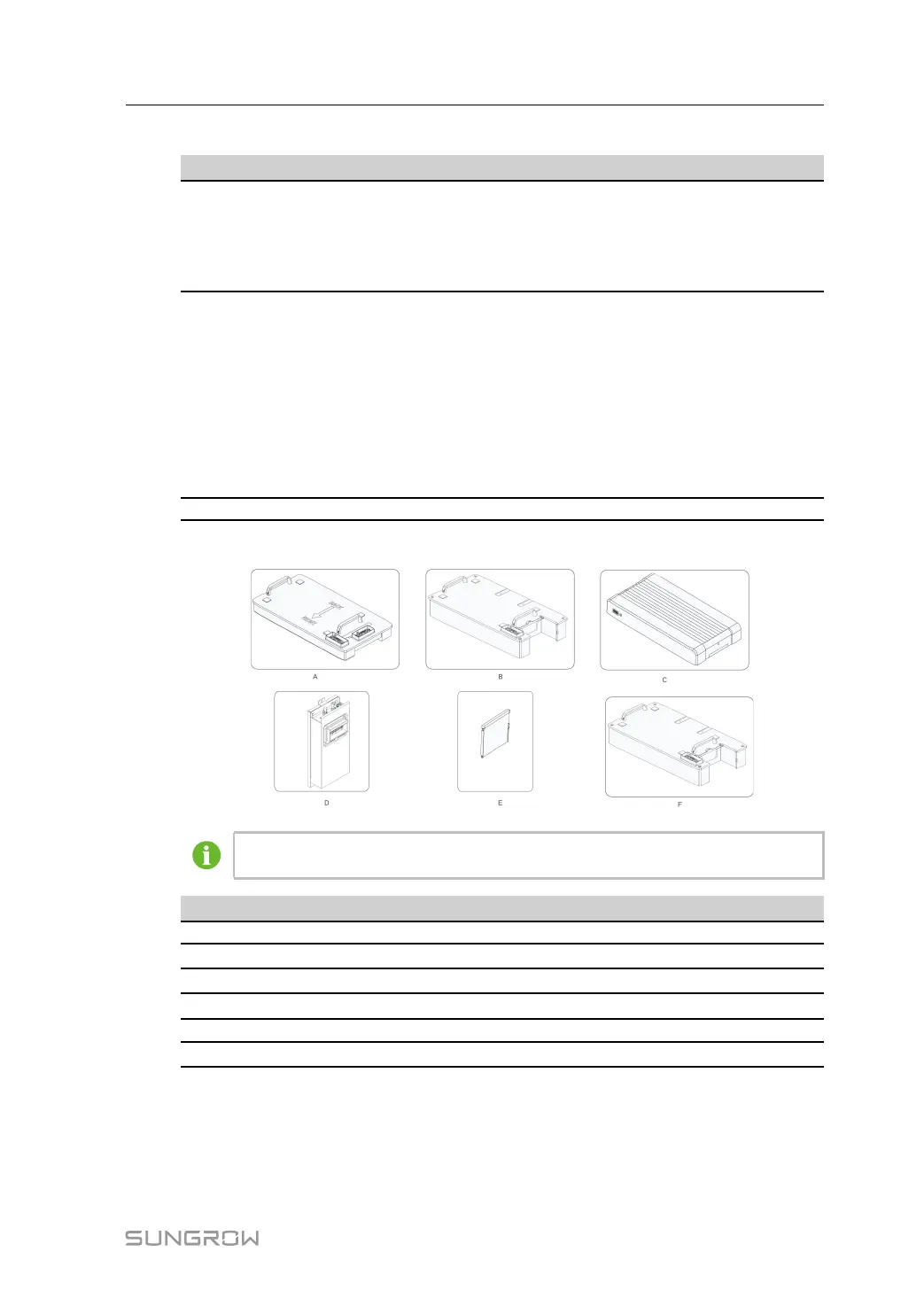

Major Components
Images are for reference only. The actual products received may differ.
Name
Designation
A Base
B
Battery module
C
Top cover
D
Switch gear
E Side cover
F
Empty module*
User Manual 2 Product Description
