Battery module: Single module is 3.2 kWh and used in SBR064-256 battery system.
*Empty module: 1. Decorative accessory, which makes the battery height higher,
and on the SBR064, which makes the switch gear fit perfectly into the modules.
2. It has the same appearance as Battery module, with a built-in conduction line
and does not contain battery cells.
3. Standard on SBR064, optional on SBR096-256.
table 2-2 Configuration Table
No. Model Base
Battery
module
Top cover Switch gear
Side cover
1 SBR064 1 2 1 1 2
2 SBR096 1 3 1 1 3
3 SBR128 1 4 1 1 4
4 SBR160 1 5 1 1 5
5 SBR192 1 6 1 1 6
6 SBR224 1 7 1 1 7
7 SBR256 1 8 1 1 8

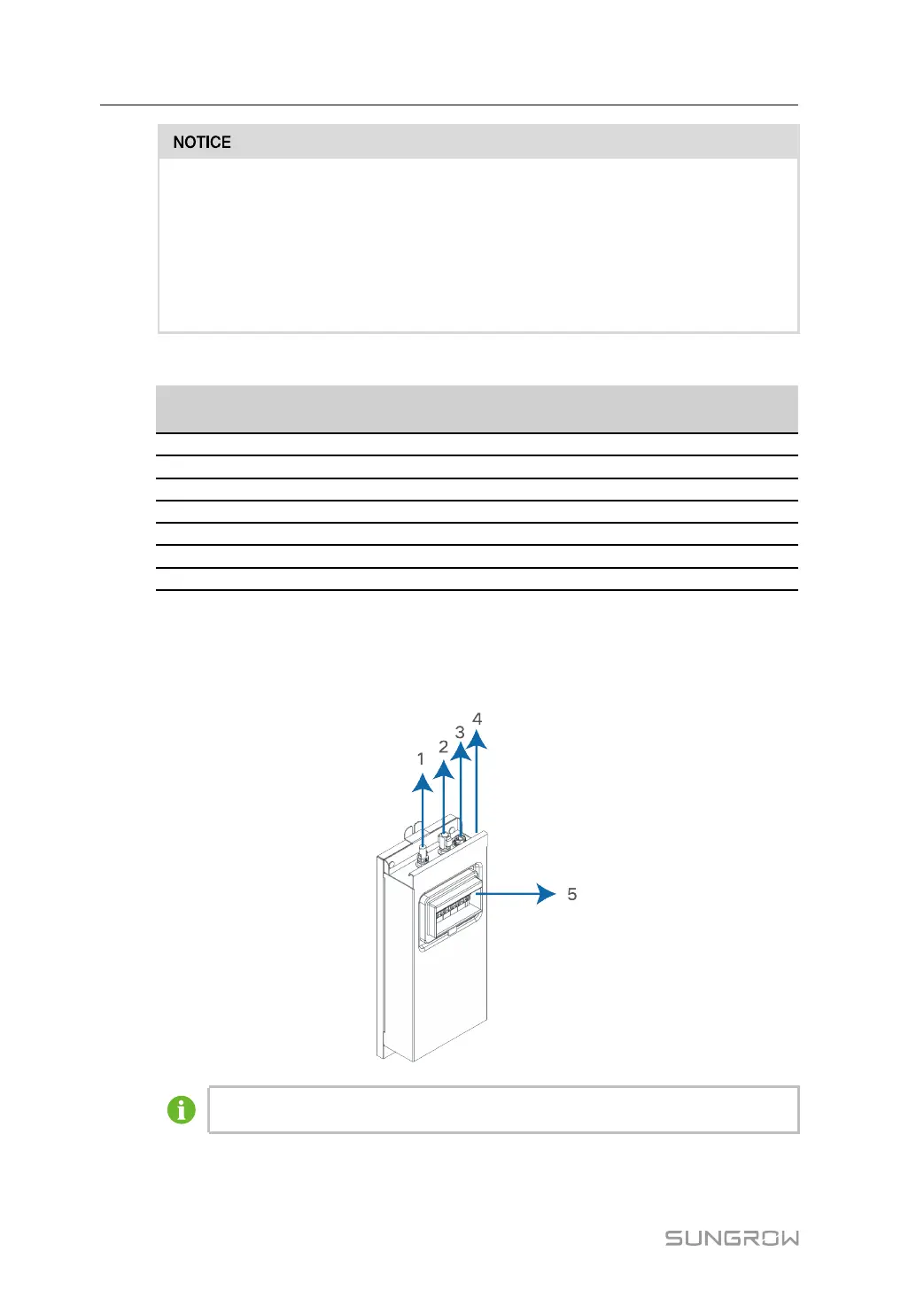

2.2 Terminal Description
All electrical terminals are located at the switch gear.
