table 4-2 Cable requirements
Type Specification
Complying with 1000V and 105℃ standard
4–6 mm
2

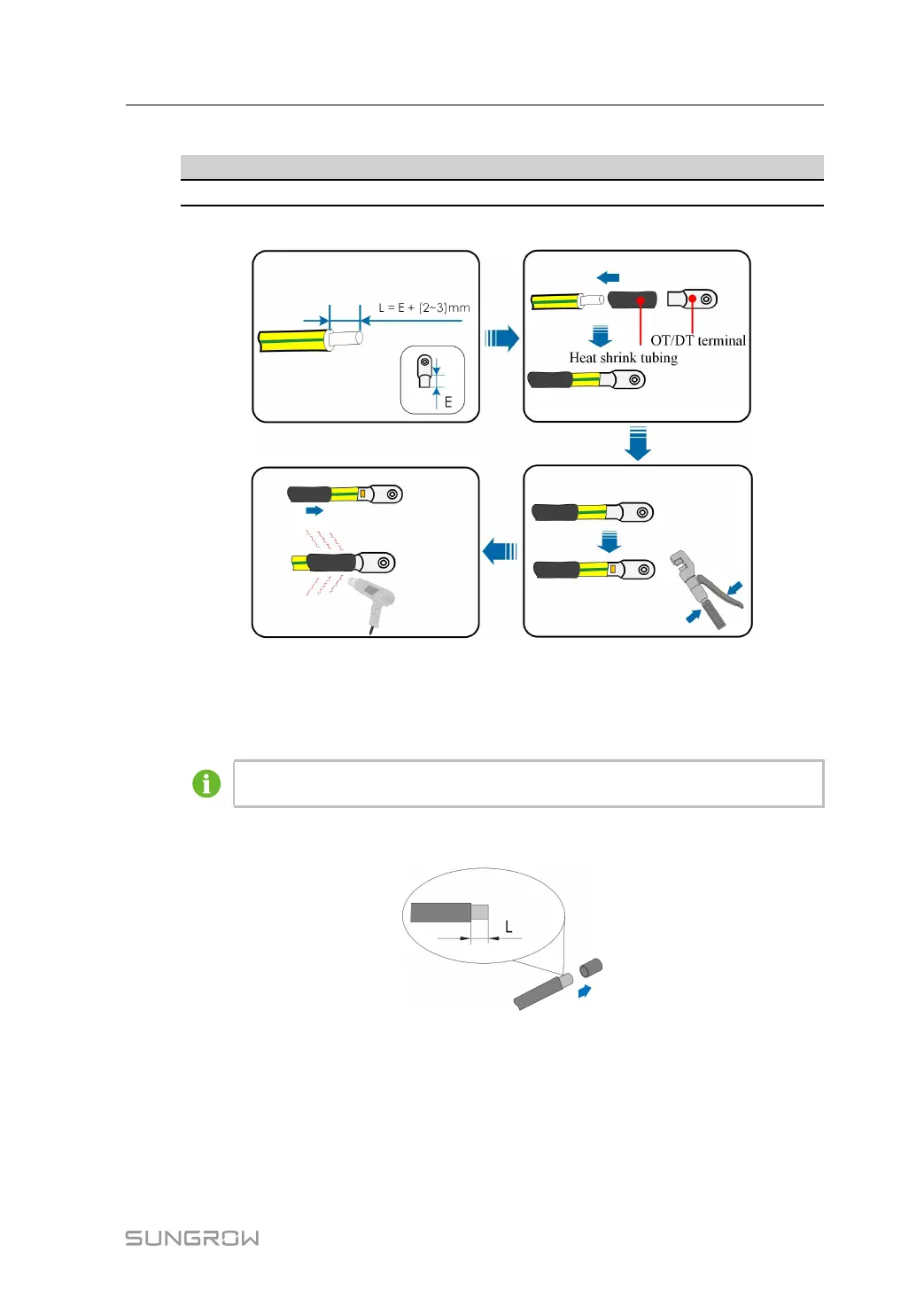

Prepare the cable and OT/DT terminal.
4.7 Assemble DC Connectors
Assembling the MC4 Connectors
To ensure IP65 protection, use only the supplied connector.
1. Strip the insulation from the cable by 7 mm - 8 mm.
2. Assemble the cable ends with the crimping pliers.
User Manual 4 Mounting
