Sungrow SG2K5-S User Manual

6 Commissioning User Manual
52

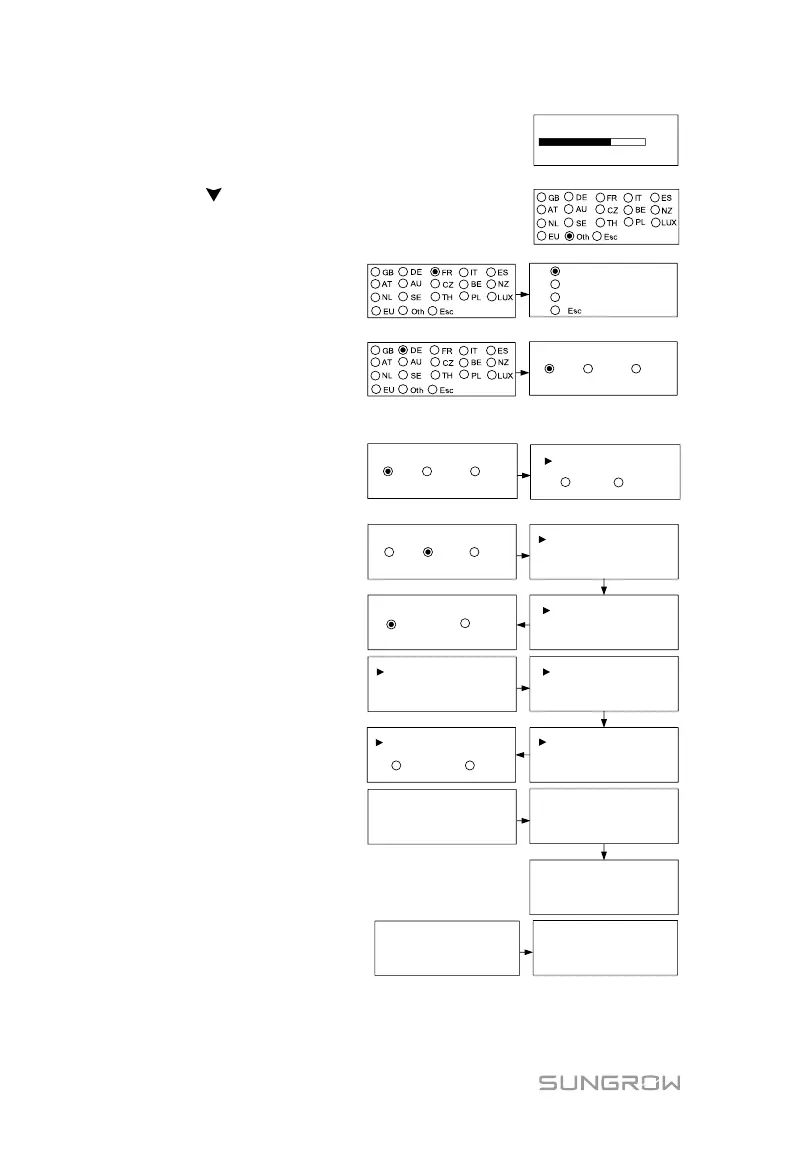

4. The LCD screen will be activated 5 seconds
later.
Startup
80%
5. Touch to choose the country and touch
ENT to confirm.

If the country is set to “FR”
(France), select the grid
standard on the next screen.
France-50
Overseas-50
Overseas-60

If the country is set to “DE”
(Germany), set the reactive
response mode and
parameters.
LF
Q(P) Q(U)
“DE” PF parameter setting:
LF
: +
1
.
000
Enter
LF
Q(P) Q(U)
Esc
“DE” Q(P) parameter
setting:
Enter Esc
K_A: 1.000
K_C: 0.950
PA: 50.0%
PC: 100.0%
PF
Q(P) Q(U)
“DE” Q(U) parameter
setting:
Enter Esc
V1 Ref. 93.0%
V2 Ref. 97.0%
V3 Ref. 103.0%
V4 Ref. 107.0%
Leading Q/Sn : 60.0%
Lagging Q/Sn : 60.0%
Hysteresis : 0.0%
6. The inverter will enter
checking mode and
automatically perform the
grid, solar and inverter
detections.
Checking 147s
Grid Detection
Checking 78s
Solar Detection
Checking 35s
Inv Self-test
7. If all detections pass and
there is sufficient sunlight,
the inverter will enter the
running status.
Pac:
Status:
3456W
Running
3456W
Standby
Pac:
Status:
