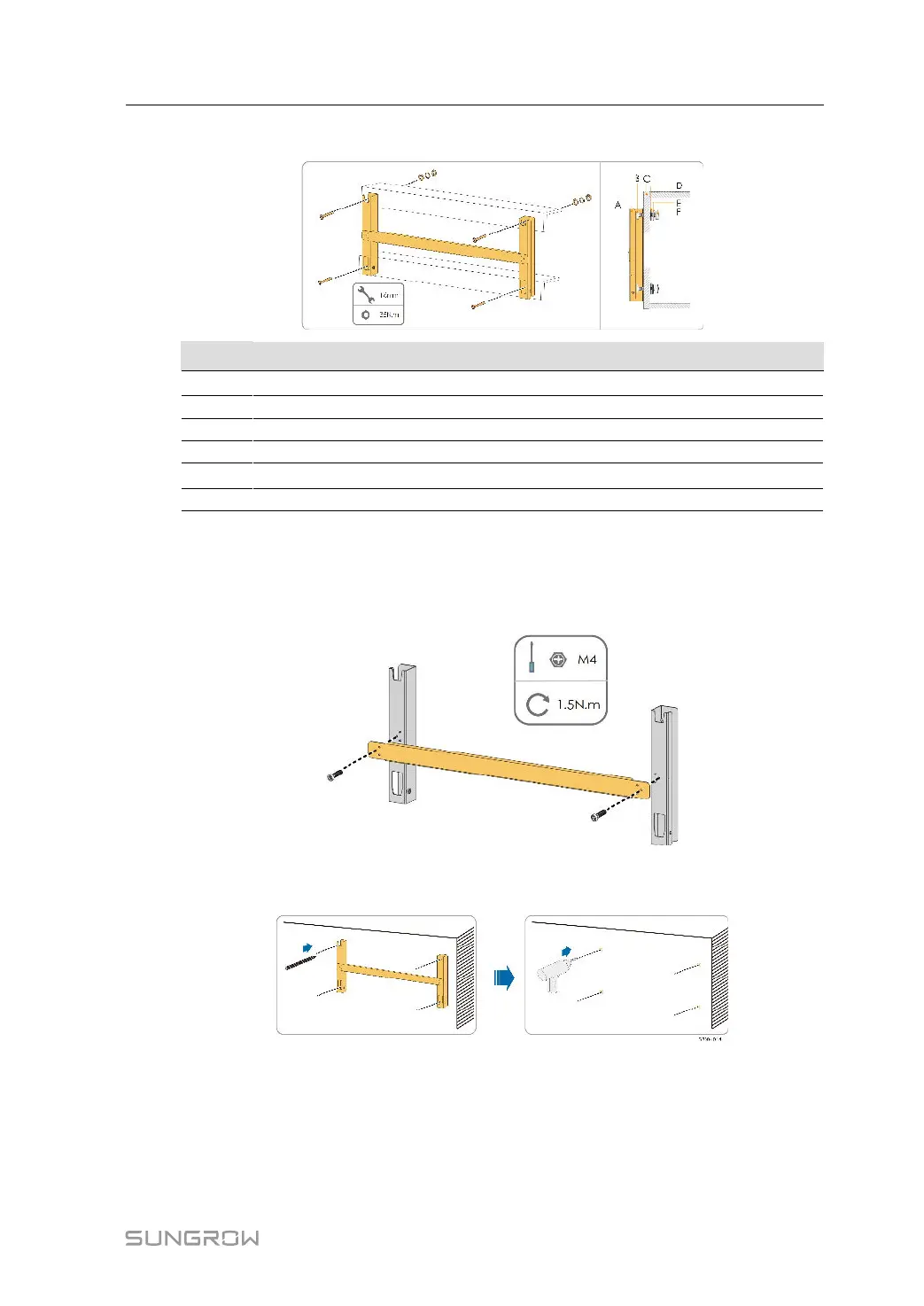

Step 3 Secure the mounting-bracket with bolts.
No.
Components Description
A
Mounting-bracket
–
B Full threaded bolt M10*45
C Metal bracket
–
D Flat washer
–
E
Spring washer
–
F Hex nuts
–
- - End
4.5.2 Wall-Mounted Installation
Step 1 Assemble the mounting-bracket.
Step 2 Level the assembled mounting-bracket by using the level, and mark the positions for drilling
holes.
