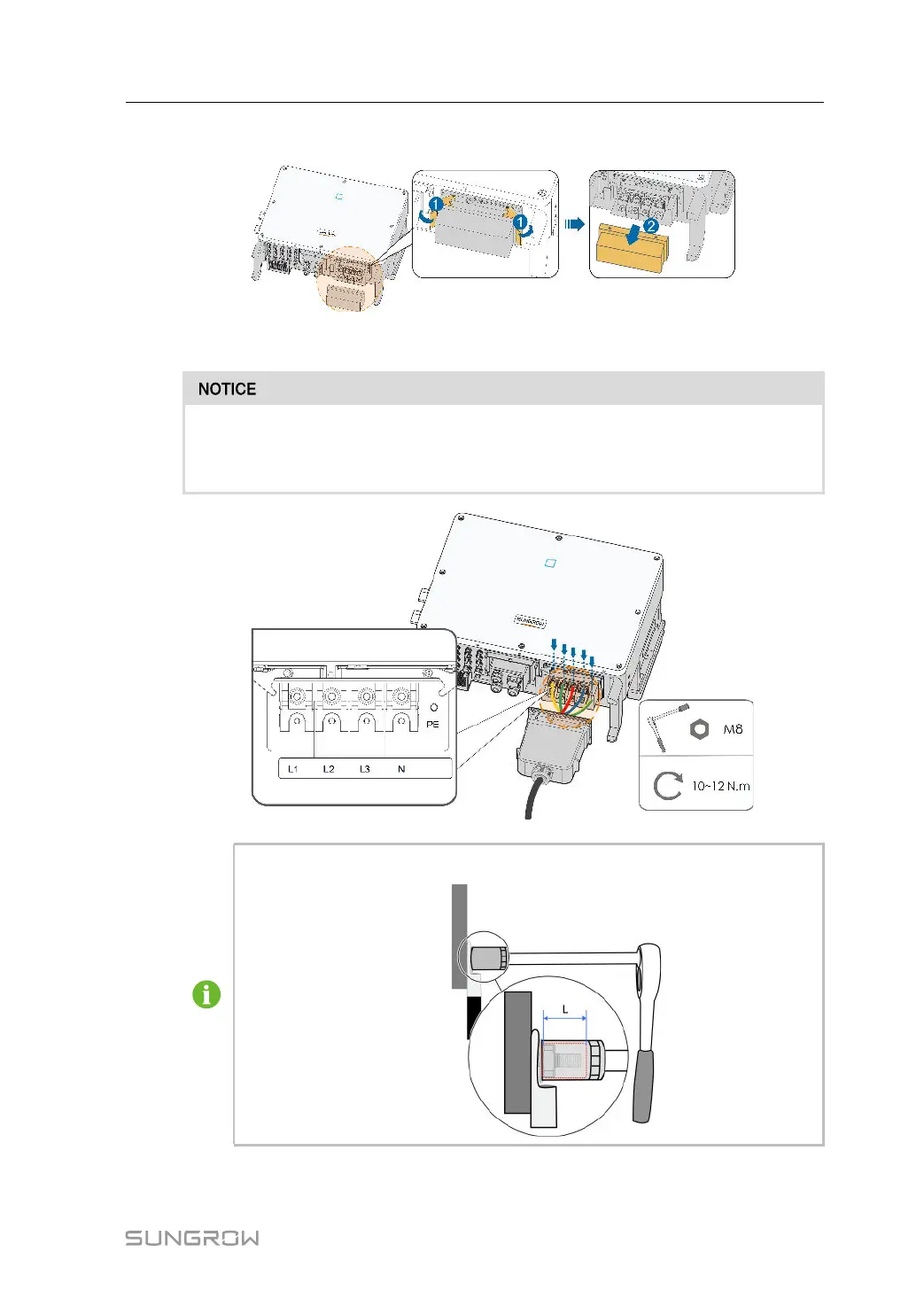

Step 5 Unfasten the buckle and remove the protective cap.
Step 6 Secure the wires to corresponding terminals.
Observe the terminal layout on the block. Do not connect the phase wires to "PE"
terminal or PE wire to "N" terminal. Otherwise, unrecoverable damage to the inver-
ter may follow.
Ensure that the depth L of the socket used is not less than 18mm.
User Manual 5 Electrical Connection
