Sungrow SG3KTL-M User Manual

2 Product Introduction User Manual
8
2.2.2 Dimensions and Weight of Inverter
H

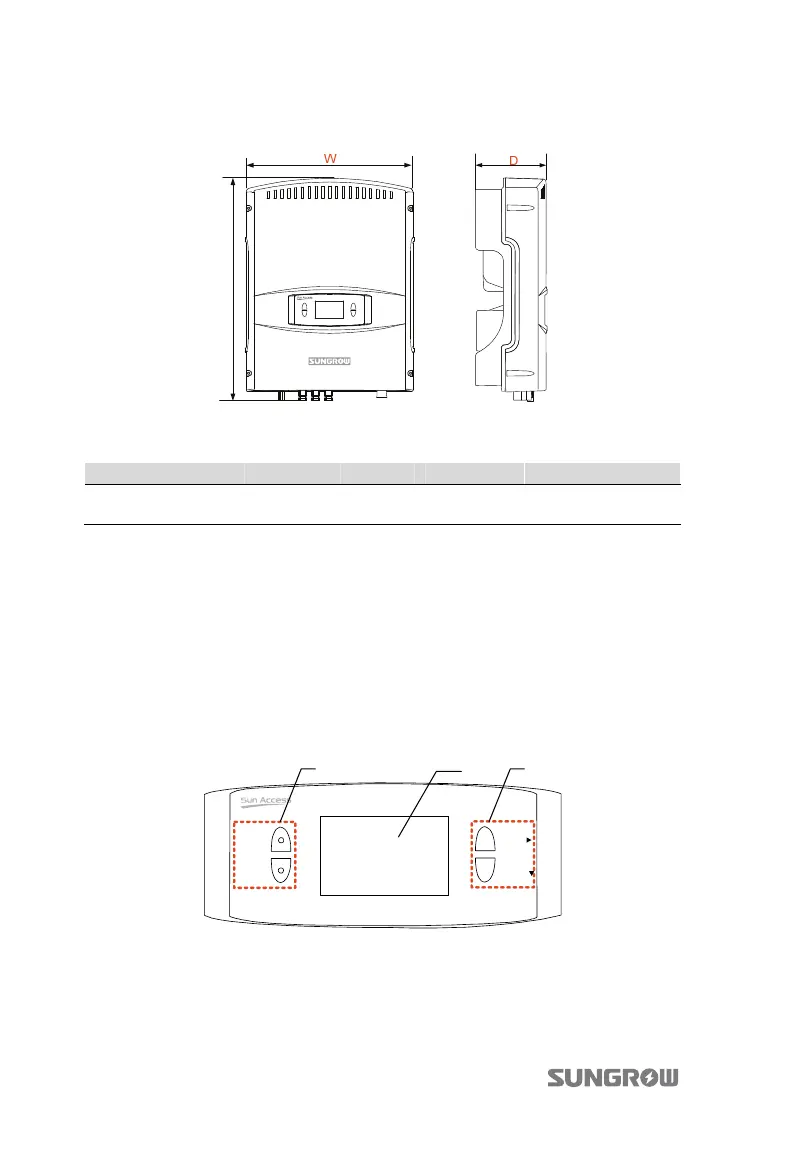

Fig. 2-3 Dimensions of Inverter
Tab. 2-1 Dimensions Value
Type W(mm) H(mm) D(mm) Net weight(kg)
SG3KTL-M/SG4KTL-M/
SG5KTL-M
420 555 179 24
2.2.3 LCD Display Panel
As a human-computer interaction interface, LCD display panel comprises LED
indicators, buttons and LCD display screen on inverter front panel.
y
LEDs indicate the working status of the inverter
y
The current running information shown on the LCD display
y
Malfunction records shown on the LCD display
y
Inverter configuration by pressing the buttons
RUN
FAULT
ESC /
ENTER/
231
Fig. 2-4 LCD Display Panel
