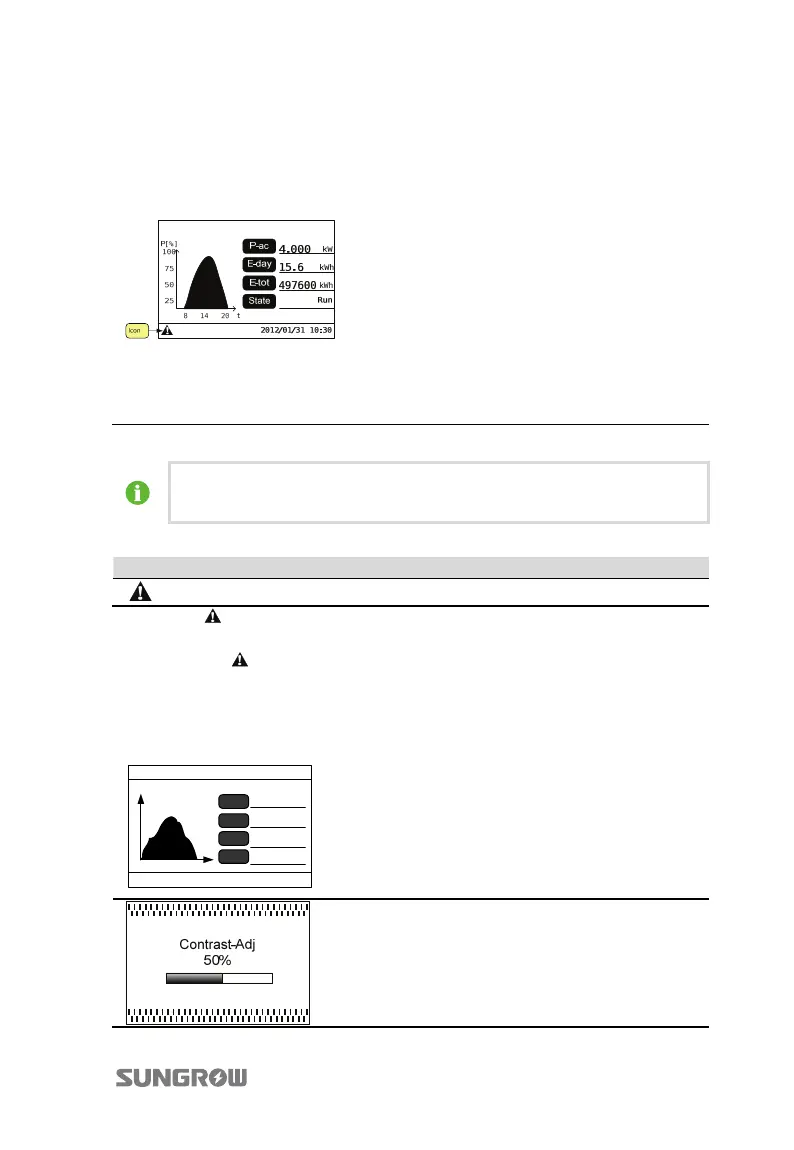

10.3 The Default Screen
The LCD is initialized when the inverter is energized delay 5 seconds and then enters
into the default menu.
he default screen displays basic running
information.
“P-ac” means the current output power of the
inverter.
“E-day” means the energy output the current
day.
“E-tot” means the overall accumulative energy
output.
“State” shows the inverter’s operation mode.
Current date and time are also displayed.
If there is no button operation for two minutes, it will go back to default
menu.
Icon Description
Fan-flt signal
Fan-flt icon will appear on the lower left corner of the LCD display once a fan-flt
signal is detected. Yet no logs will be recorded and the “fault” indicator won’t be lit.
The fan-flt icon
will disappear after the fan-flt is eliminated.
10.4 Adjusting Contrast
2009/11/18 18:35
4.000 kW
15.6 kWh
4976 kWh
Run
State
P-ac
E-tot
E-day
20
40
60
80
100
814
20
P(%)
t
0
1. Long press “ESC
▼ to enter into the contrast
adjustment screen.
2. Short press “ESC
▼
to increase the setting
value and short press “ENTER/►” to decrease the
value.
Contrast value ranges from 0 %( min.) to
100 %( max.).
Recommended contrast value is 50%.
To Next Page
