50

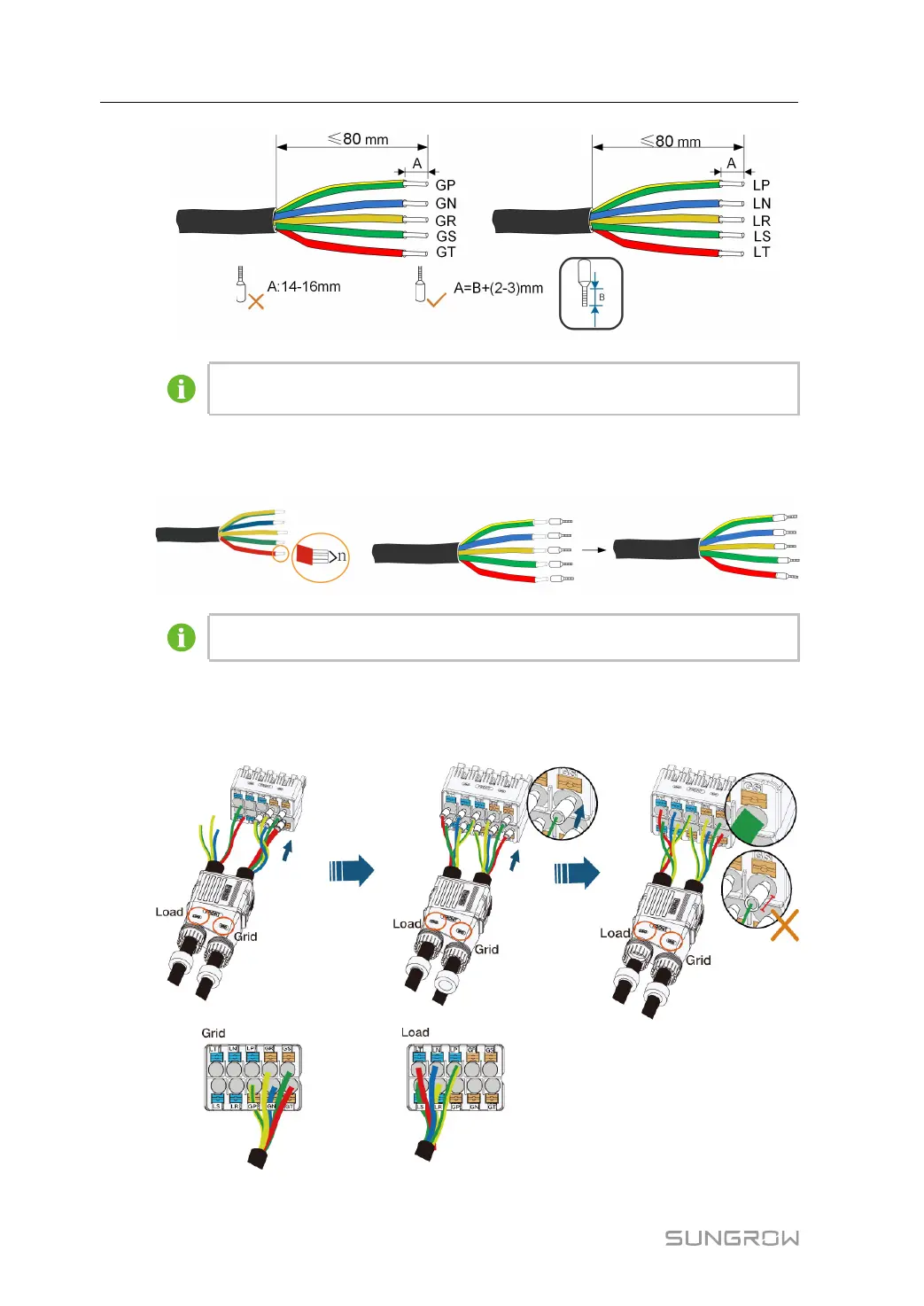

The color of the cable cores in the figure is for reference only, and cables or cable
cores selected must meet local standards.
step 5 (Optional) If the number of cable wires (n) ≥ 7, use cold-pressed terminals for cable crimp-
ing. If n < 7, skip this step.
Select appropriate cord end terminal according to the cable cross-section area.
step 6 When wiring, the five wires (LOAD or GRID) should be correctly positioned according to the
marks and inserted into the terminal at the same time. After finishing wiring, make sure the
cold-pressed terminal does not protrude from the outside surface of the AC terminal.
6 Electrical Connection User Manual
