1. System Wiring

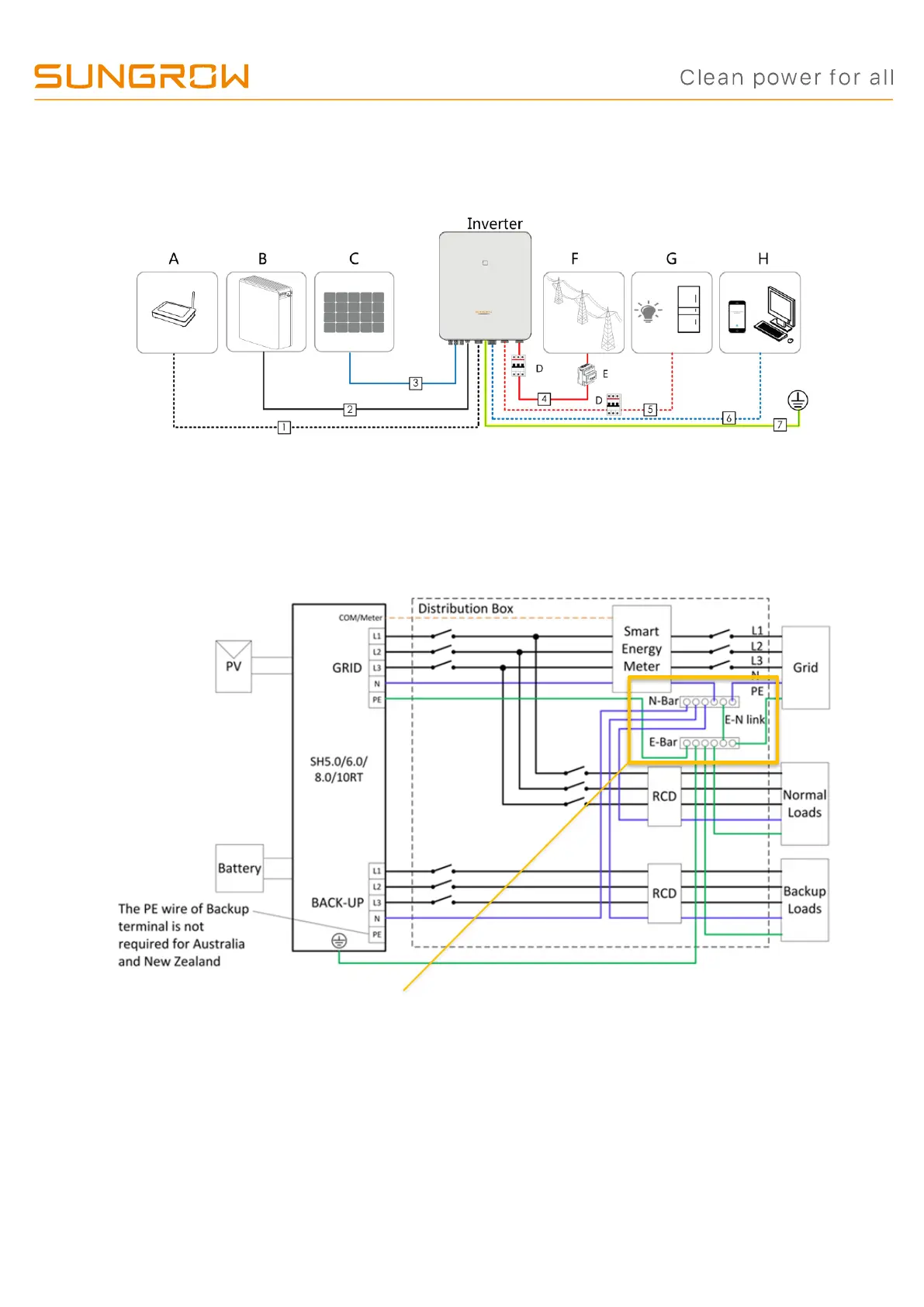

1.1 Overall System Wiring
1.2 Backup Circuit Wiring (Important!)
Ensure the AC wiring conforms to the user manual. Otherwise, any other wiring
configuration may cause error 015 (Grounding cable fault).
Both the Neutral and Earth connection from the Backup output must be
connected to the Earth and Neutral bar in the main switchboard and must be
connected to the M.E.N. link.
RCD’s must comply with AS/NZS3000.
