10-7
Use lithium-type grease (JIS No.2) - Albania No.2.
[CATUION]
Do NOT grease the parts not indicated (needle bar, hook, etc.)

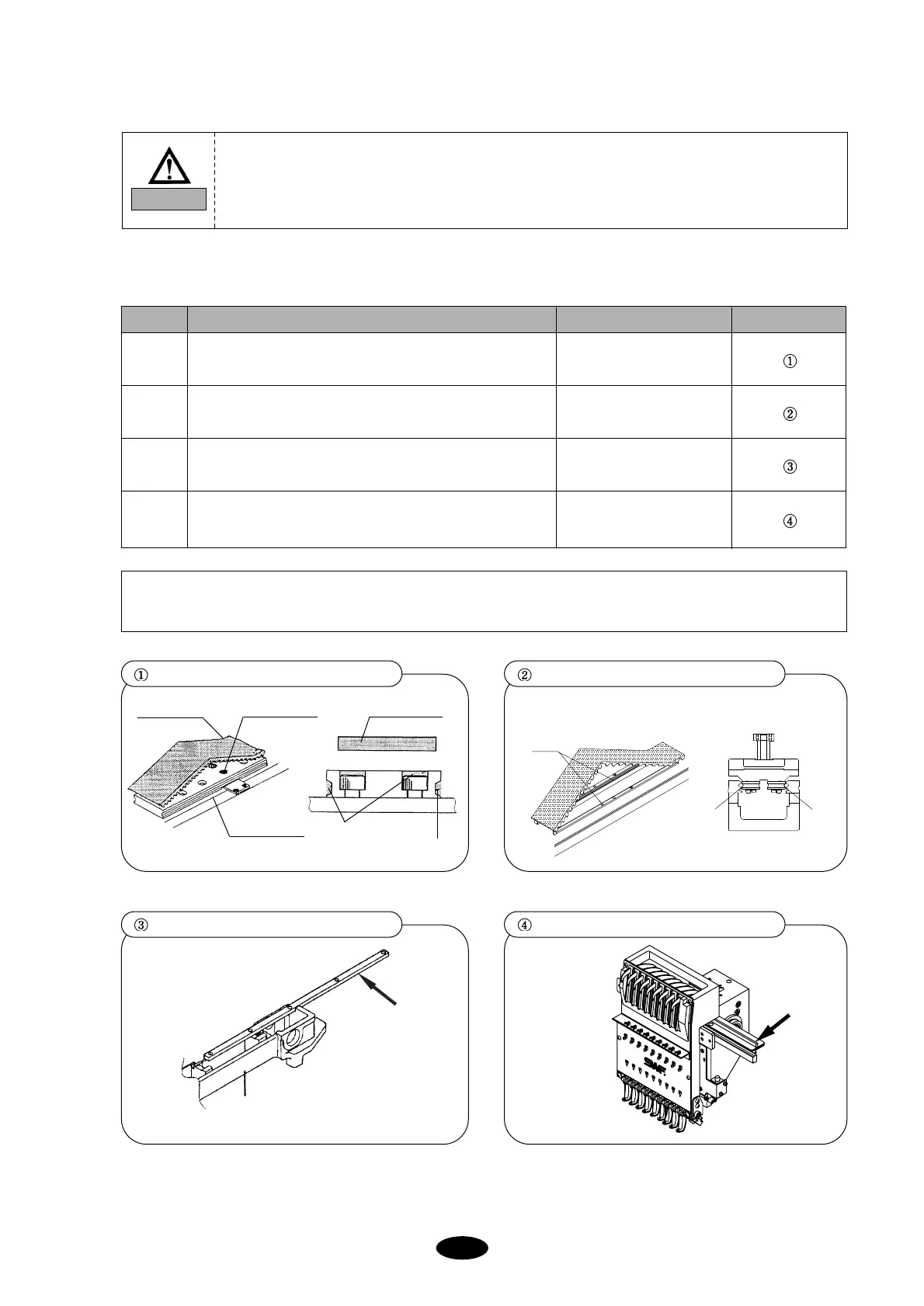

[Fig.10-6]
1
2
3
4
X-axis LM guide (2 on each side)
Y-axis LM guide (2 on each side)
Sub Y drive LM guide (1 on one side)
Head drive LM guide
Once in 2 months
Once in 2 months
Once in 2 months
Once in 2 months
Where to Grease
Greasing cycle
Reference Fig.
NO
Turn OFF the main power during the grease supply.
CAUTION
Timing belt
grease hole
Timing belt
grease hole
grease hole
2 sides
LM Guide Rall
X-axis
Bed #2
X-axis LM guide (4 spots)
Y-axis LM guide (4 spots)
Sub Y drive LM guide (1 spots)
Head drive LM guide (upper cover opened)
Where to grease
Where to
grease
Where
to
grease
To Next Page
