mPulse User Manual
• Insert the 1/4” gas tube rmly into the Gas port
(E) on the back of the welder. It may wiggle
when connected, but should not come out if
pulled on.
• Insert the RJ45 Darkening Lens cable (from the
back of the Darkening Lens System) into the
ACC port (F) on the back of the welder. If using
a microscope, see page 5 for instructions.
• Connect the alligator clip to the Grounding port
(B).
• Place the Welding Stylus (A), which is already
connected to the back of the welder, to the side
for now.
• Adjust the Darkening Lens Shade by turning the
Shade dial above the Darkening Lens Screen.
Turn clockwise for a lighter shade and count-
er-clockwise for darker shade.
• Power on the welder by ipping the Power
switch (C) on the back of the welder.
Microscope Arm Mounting Options
If you purchased the Orion mPulse with a microscope,
carefully follow these instructions.
Mounting Option 1 - Clamp to Table
This option is best for tables with accessible edges and
for mounting without drilling holes in the table.
Note: If your table is thicker than 3-1/2” (9cm), follow
mounting option instructions 2 or 3 on the next page.
Hardware required from Box 2:
(1) Angled Bracket (C)
(1) Sunstone Microscope Arm Assembly (A)
(1) Clamp Mechanism (D)
(5) Flat Head Hex Screws (G)
• Lay the arm assembly down on a at surface.
• As shown in Figure 2.2, attach the Angled
Bracket (C) to the bottom of the Microscope
Figure 2.2. Attach Angled
Bracket (C) to Microscope
Arm Assembly (A).
Figure 2.3. Attach Clamp
Mechanism (D) to Angled
Bracket (C).

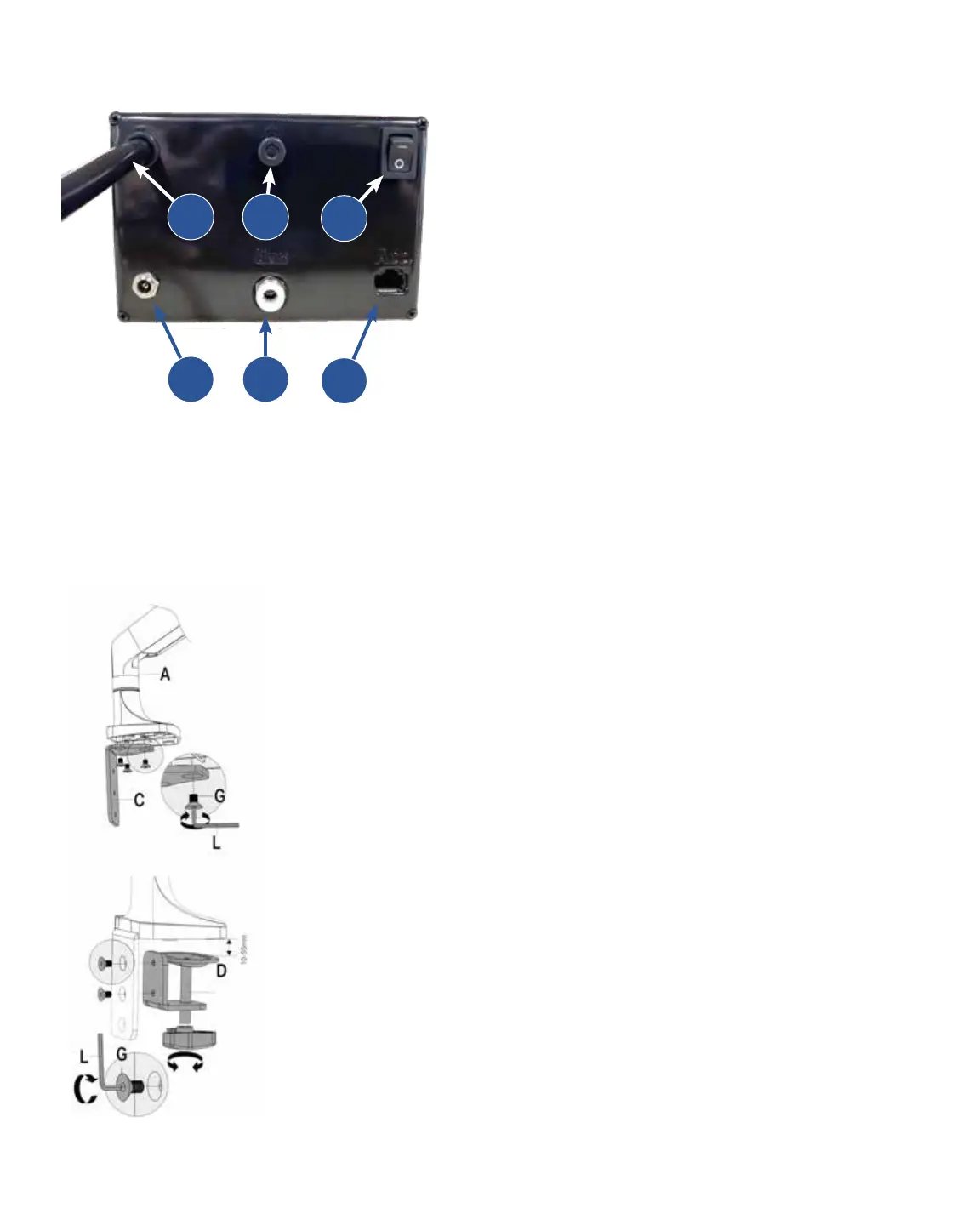

Figure 2.1. The back panel of the Orion mPulse. (A) Stylus
Cable. (B) Grounding port. (C) Power switch. (D) AC Power
port. (E) Argon gas port. (F) Darkening Lens System port.
A B
C
D E
F
