2.4. Basic System Architecture

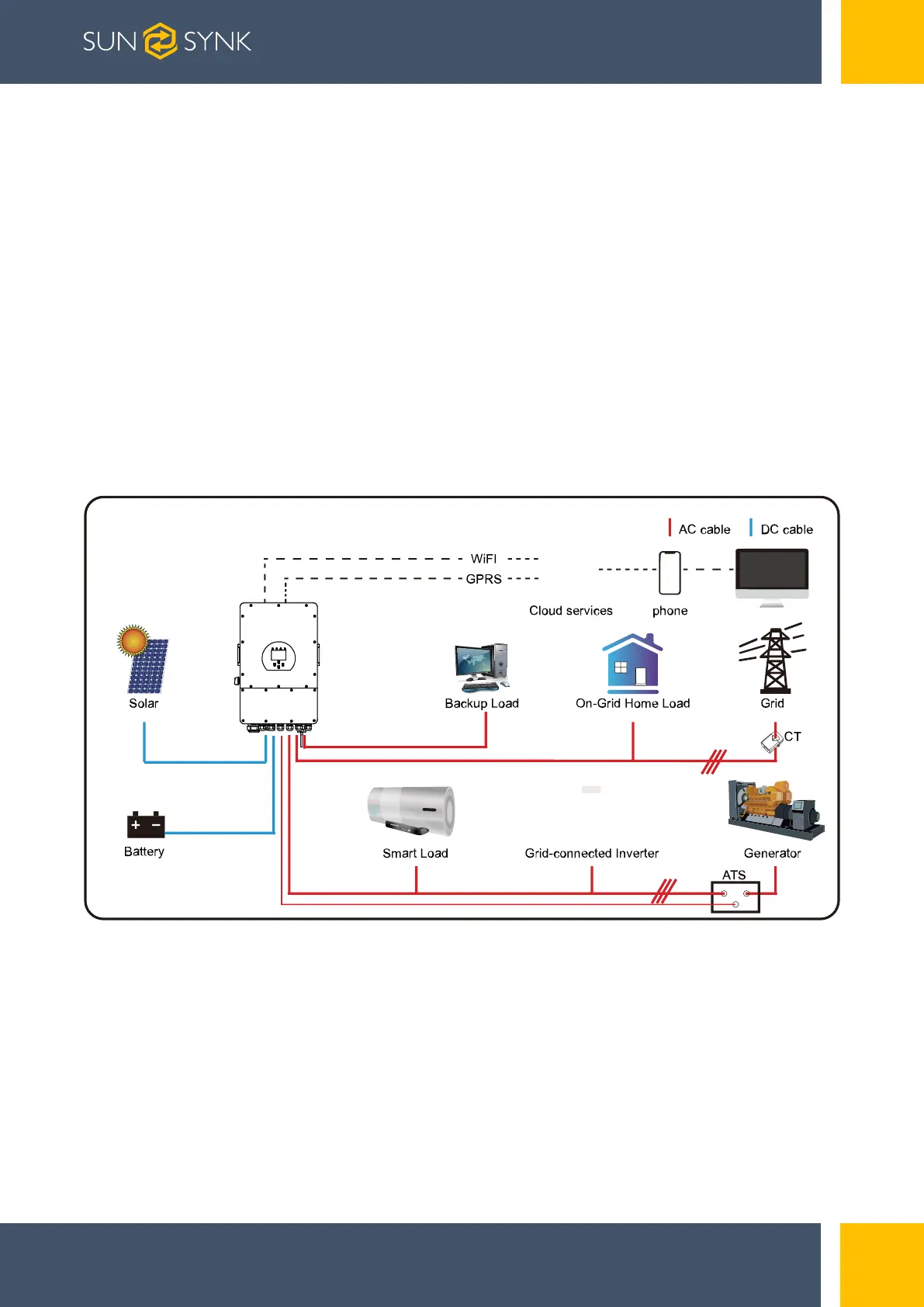

The following diagram explains the basic application and architecture of this 3-Phase Inverter.
It also includes following devices to have a Complete running system.
Generator or Utlity
PV modules
Batteries
Normal and smart loads
Monitoring system
Consult with your system integrator for other possible system architectures depending on your
requirements.
This inverter can power all kinds of appliances in home or once environment, including motor
type appliances such as refrigerator and air conditioner.
Page | 11Hybrid Inverter | Installer Manual
