SWDM320HB OPERATOR’S MANUAL
165
slowly to release inner pressure in the tank to avoid scald caused by spray-out of gear
oil.
（1）Gear oil level inspection for rotary head reduction gearbox

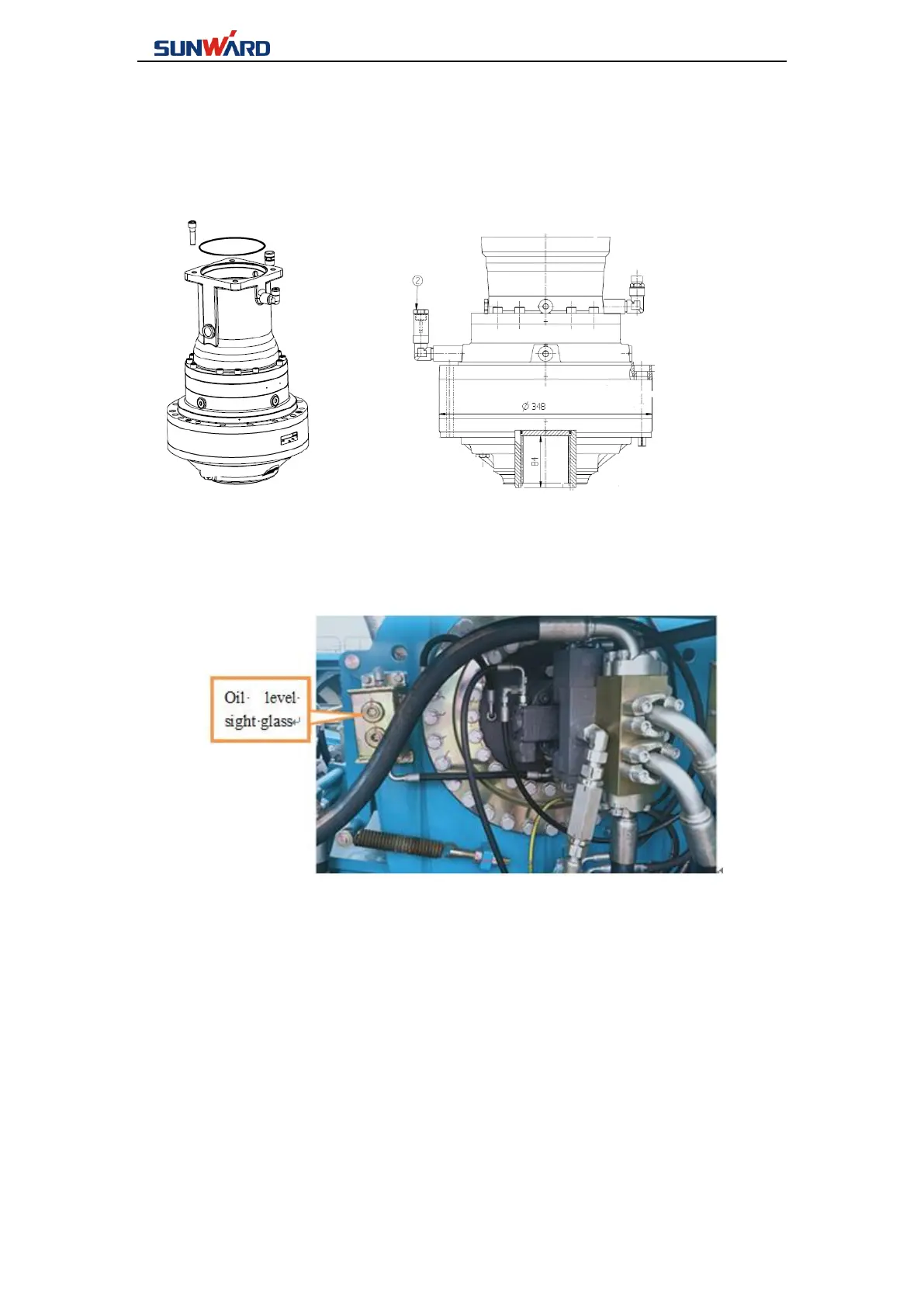

FIG. 7-3-17 Reduction gearbox with sight glass FIG. 7-3-18 Reduction gearbox
with oil scale
（2）Checking gear oil level for reduction gearbox
FIG. 7-3-19 Main winch reduction gearbox
7.3.15 Checking Coolant Level
Warning！
 Hot coolant and vapor will cause personal injury.
 Engine coolant is hot with pressure at the working temperature. In the pipes
of radiator and heater contain hot coolant and vapor, which can cause serious
scald if being touched.
