4.5.6.2 Checking travel redactor gear oil level
Stop the machine at level ground, set the

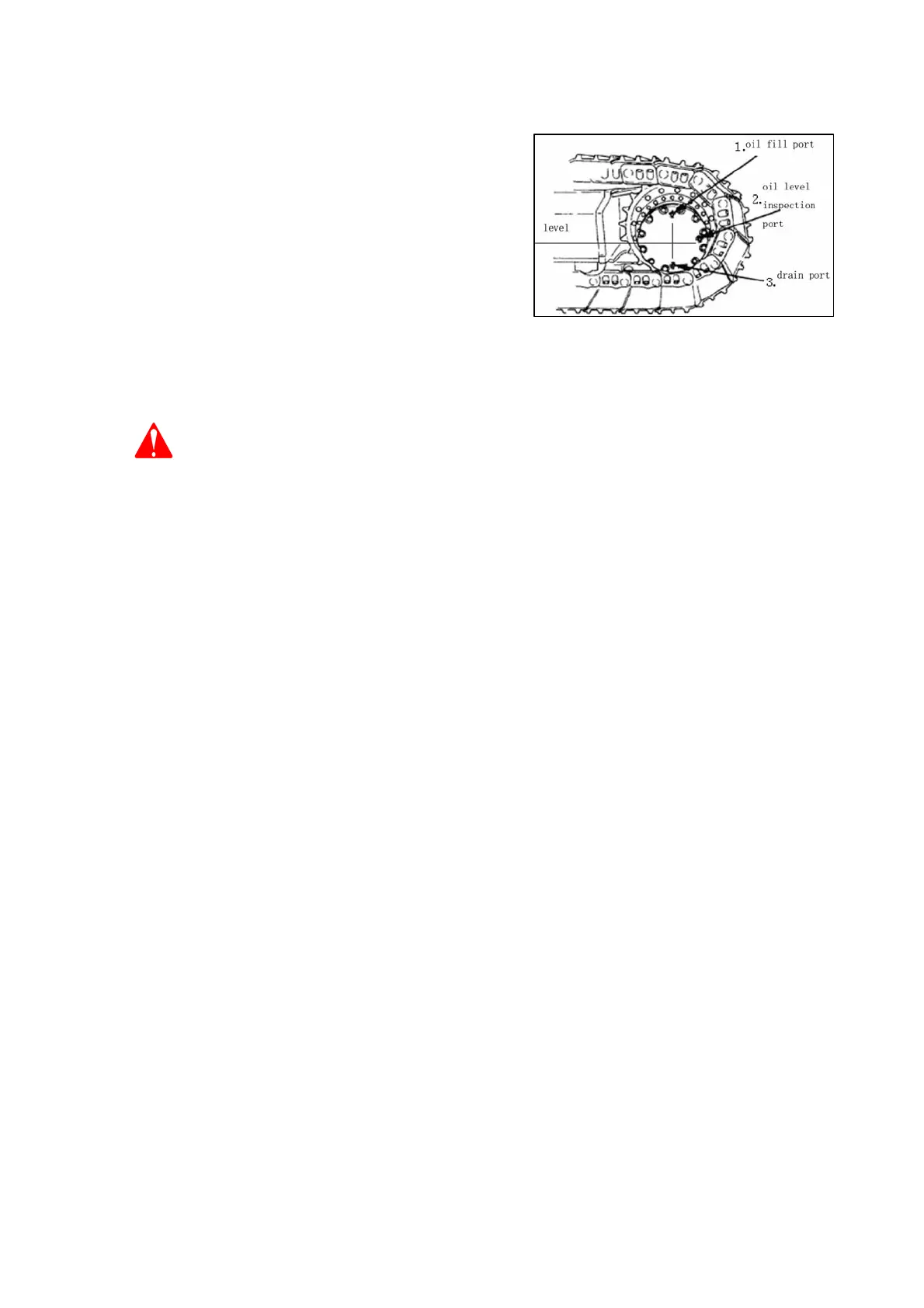

connect line of travel redactor oil fill port 1
and drain port 3 is vertical from horizontal
level.
Shut auto-idle speed switch, run the engine
unloaded at low speed for 5 minutes.
【Important】
Stopping the engine improperly may
damage turbocharger.
Set start key to OFF position, stop the engine,
remove the key from starting lock, set safety
lock lever to LOCK position.
Note
After completing work, gear
temperature may be very high. Wait for
temperature to cool down before
loosening oil fill plug of fill port
1. Pay attention that to keep body and
face away from oil fill port 1 during
operation.
With gear oil cooled down, gradually loosen
oil fill port plug to release pressure.
Remove plug of oil fill port 1 and inspection
port 2, check through inspection port 2 that
gear oil level must be within the range of
10mm under inspection port2.
If necessary, add lubricating gear oil through
oil fill port 1, and then recheck oil level.
Reinstall plug screw of oil fill port 1 and
inspection port 2.
Check the gear oil level on another side of
travel redactor with the same manner.
