3.2.3 Travel control lever
Warning
Do not rest your feet on pedal unless the
machine travels. If resting your feet on
the pedal and stepping down on it
accidentally, a sudden movement of the
machine may occur and lead to serious
accidents.
Only if the idle roller is under the cab,
the machine travel direction
corresponds to operation direction of
lever. .
When the machine is traveling, sudden
steering can cause damage to machine.

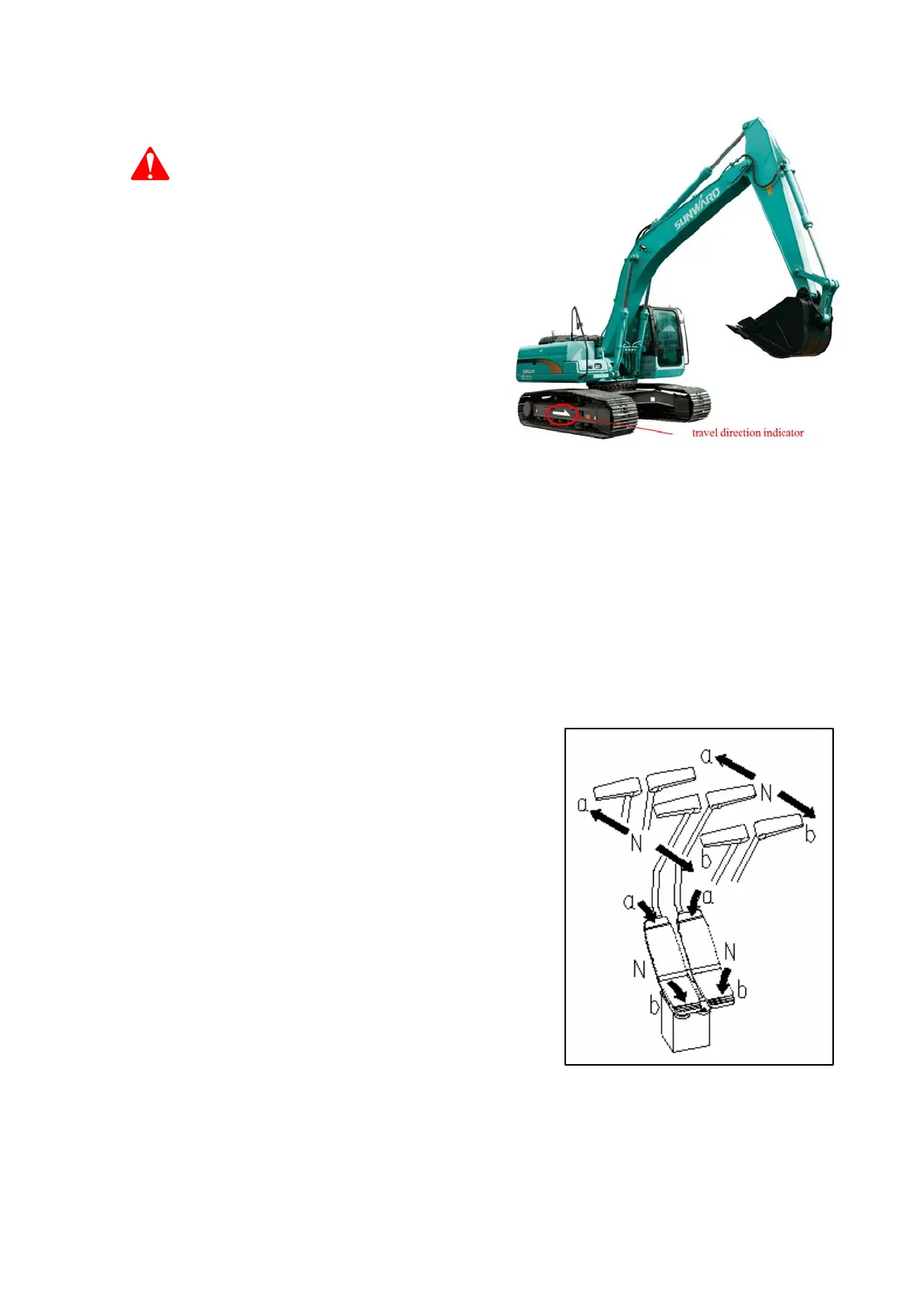

Travel control lever (2) is being used to control
machine’s travel.
（a）forward：
Push lever forward
（pedal forward tilting
（b）reverse：
Pull lever backward
（pedal backward tilting）
(N）neutral：Machine stops
（pedal stays the middle position）
For the machine with travel alarm equipment( if
present),if setting the lever from neutral position
to forward or reverse position, alarm device will
sound to alert that the machine is about to travel.
Travel control lever is involved in auto-idle speed
function of this machine.
