91

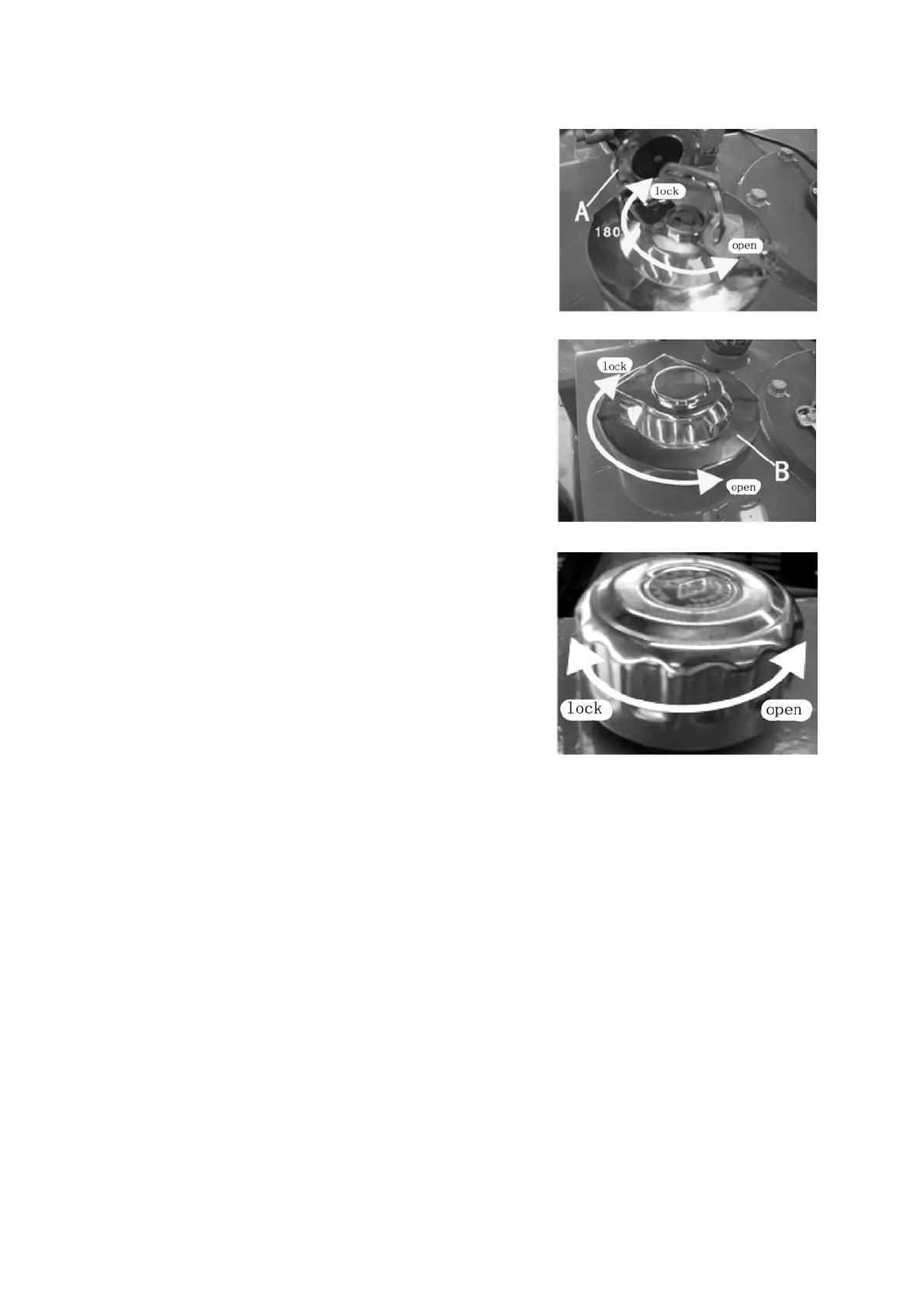

Fuel tank lock
Open fuel tank filling opening cover A; insert
the key into the key slot, turn the key counter
clockwise for 180 degree, the lock is open. To
lock the fuel filling opening, turn the B
clockwise.
Rotate oil fill cap B counter clockwise to open
oil fill port. To lock up oil fill port, rotate B
clockwise (see fig below).
Hydraulic oil tank filling opening
Turn the hydraulic cover counter clockwise to
open it, turn it clockwise to lock the cover. See
the fig shown below:
