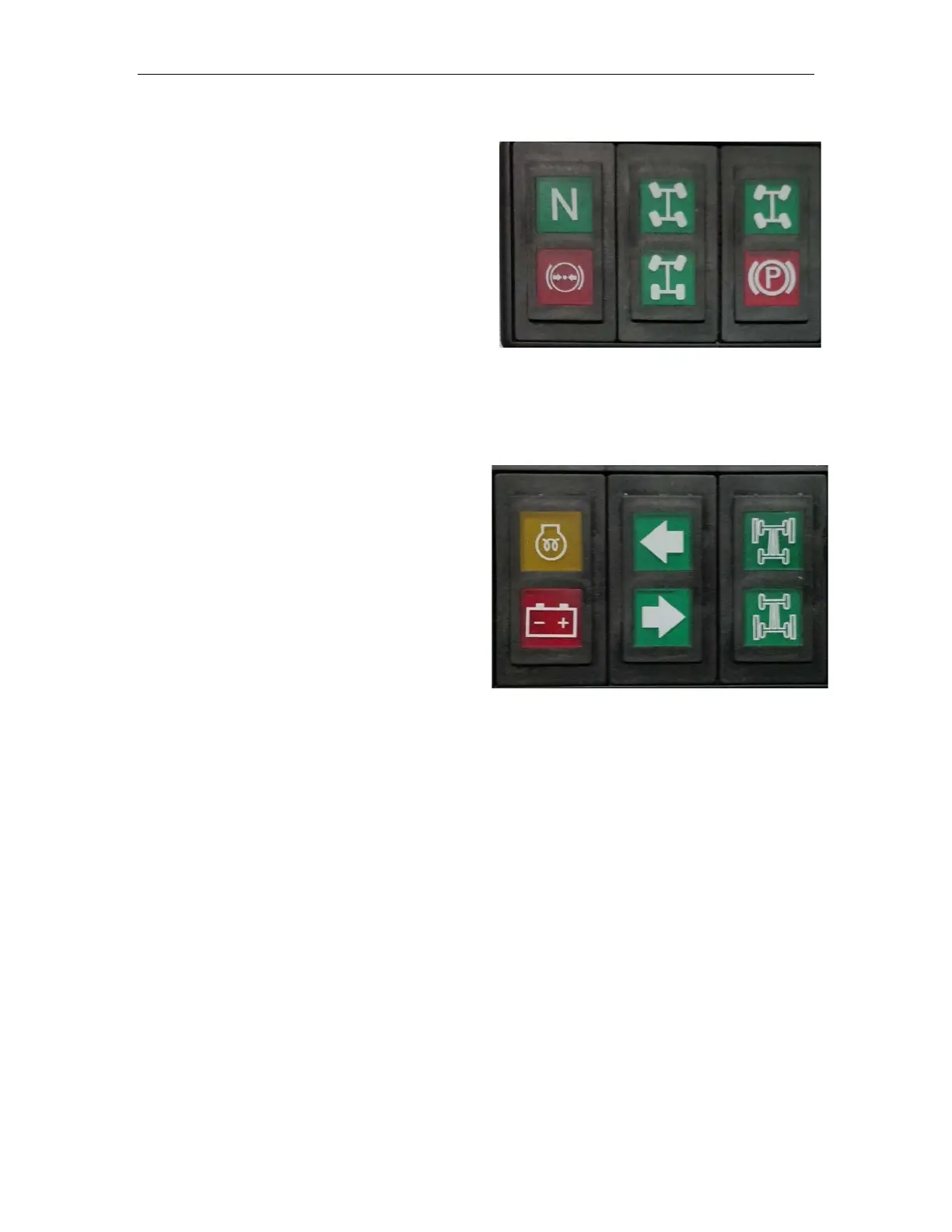

1Neutral position indicating light
Light on, the machine is in the neutral position.
2 Travel brake system pressure
3 Steering mode indicator light
4 Steering mode indicator light
5 Steering mode indicator light
6 Warning light for parking brake
When illuminated indicates that the parking brake is applied.
7 Engine preheat indicating light
This warning light comes on when the engine is preheated. 7 9 11
8 Alarm light for alternator exitation
This warning light comes on when the ignition is
switched on and should go out when the engine
is running. If the warning light should come on
when the engine is running stop the engine
immediately, and check the alternator belt and
electrical circuit.
9 Left steering indicating light
Turn signal switch on，light on.
10 Right steering indicating light 8 10 12
Turn signal switch on，light on.
11 Fore wheel aliqnment indicated lamp
Light on, indicating that the fore wheel back to center.
12 Rear axle indicator light
Light on, indicating that the rear wheel back to center.
