SUNWARD SWTH634 - Dimension; Dimension and Load Charts

44
6.3 DIMENSION AND LOAD CHARTS

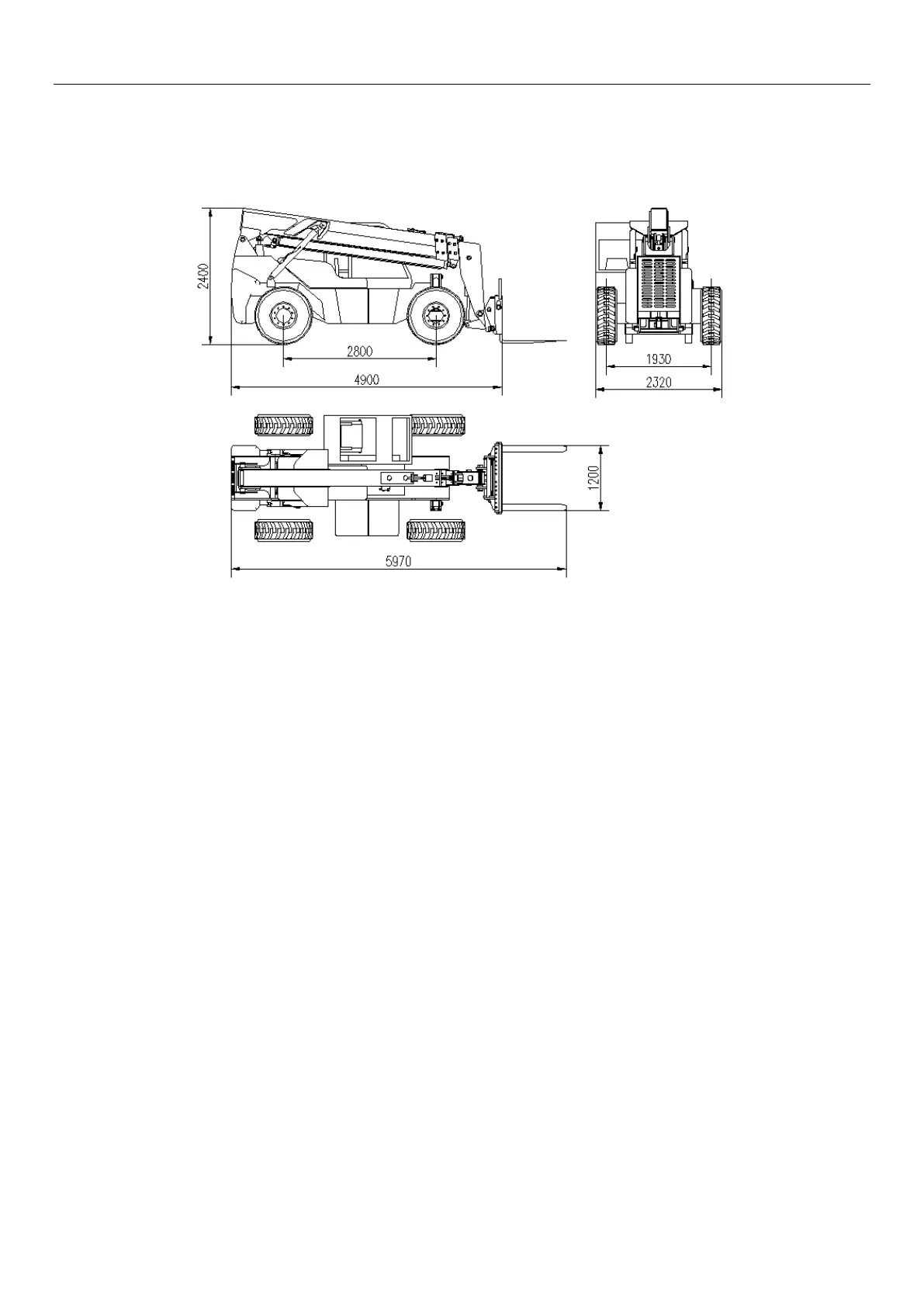

6.3.1 DIMENSION
A Height…………………………………………………………………………7.87 ft.
B Width……………………………………………………………………………………7.61 ft.
C Track…………………………………………………………………………………… 6.33 ft.
D Length…………………………………………………………………………………19.59 ft.
E Length at fork-holder plate…………………………………………………16.08 ft.
F Wheelbase………………………………………………………………………………9.19 ft.
