3.9 MOUNT THE ACCESSORY WITH MANUAL LOCK
A Engaging the accessory
 Check that the accessory is in a position which simplifies connection of the snap coupling. If it is
improperly positioned, take the necessary precautions and adapt it to the conditions of maximum
safety.
 Check that the locking pin is engaged in the support provided on the frame.
 Position the lift-truck with the boom lowered squarely in front of and parallel to the accessory
and tilt the quick coupling forward(Fig.A).
 Bring the quick coupling into position below the accessory’s connection pipe, raise the boom
slightly and tilt the connection backwards to position the accessory (Fig.B).
 Raise the accessory off the ground for easier engagement.
B Manual locking

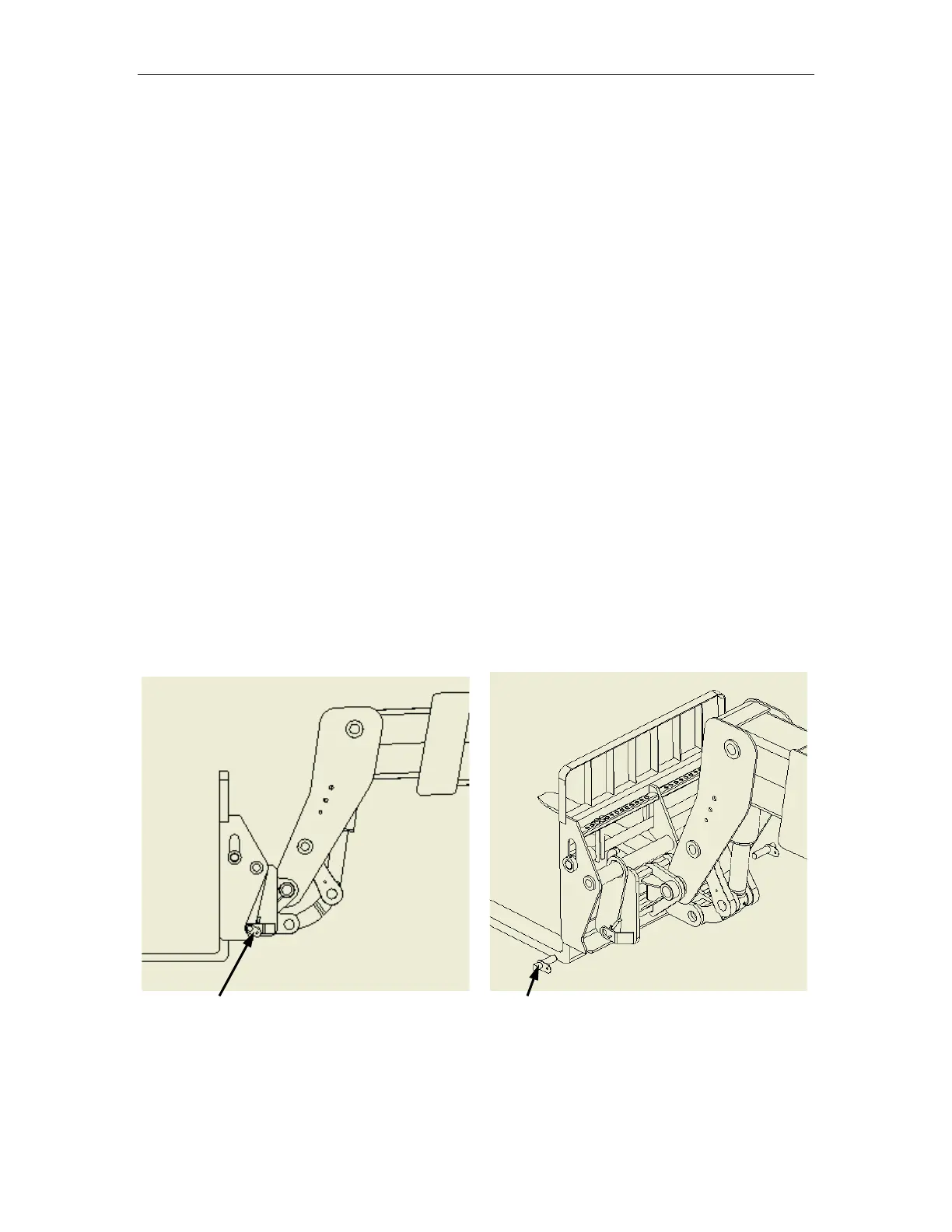

 Take the locking pin on the support and fit it into the hole of the quick coupling in order to lock
the accessory in place (Fig. C).
 Do not forget to fit on the split pin
C Manual release
 Proceed in reverse direction to the MANUAL LOCKING procedure, do not forget to replace the
locking pin in the support on the frame.
D Removing (and putting down) the accessory.
 Proceed with the ACCESSORY
 HITCHING instructions in reverse order.
 Make sure that the actual accessory is placed in a safe position on compact, flat ground.
 If the accessory has a hydraulic circuit, connect the quick couplings or uncouple them if the
accessory is being demounted after having relieved the pressure from the circuit.
 Keep the snap couplings clean and protect the unused orifices with the caps provided
。
