2.10 ELECTRO-HYDRAULIC PROPORTIONAL SERVOCONTROLS

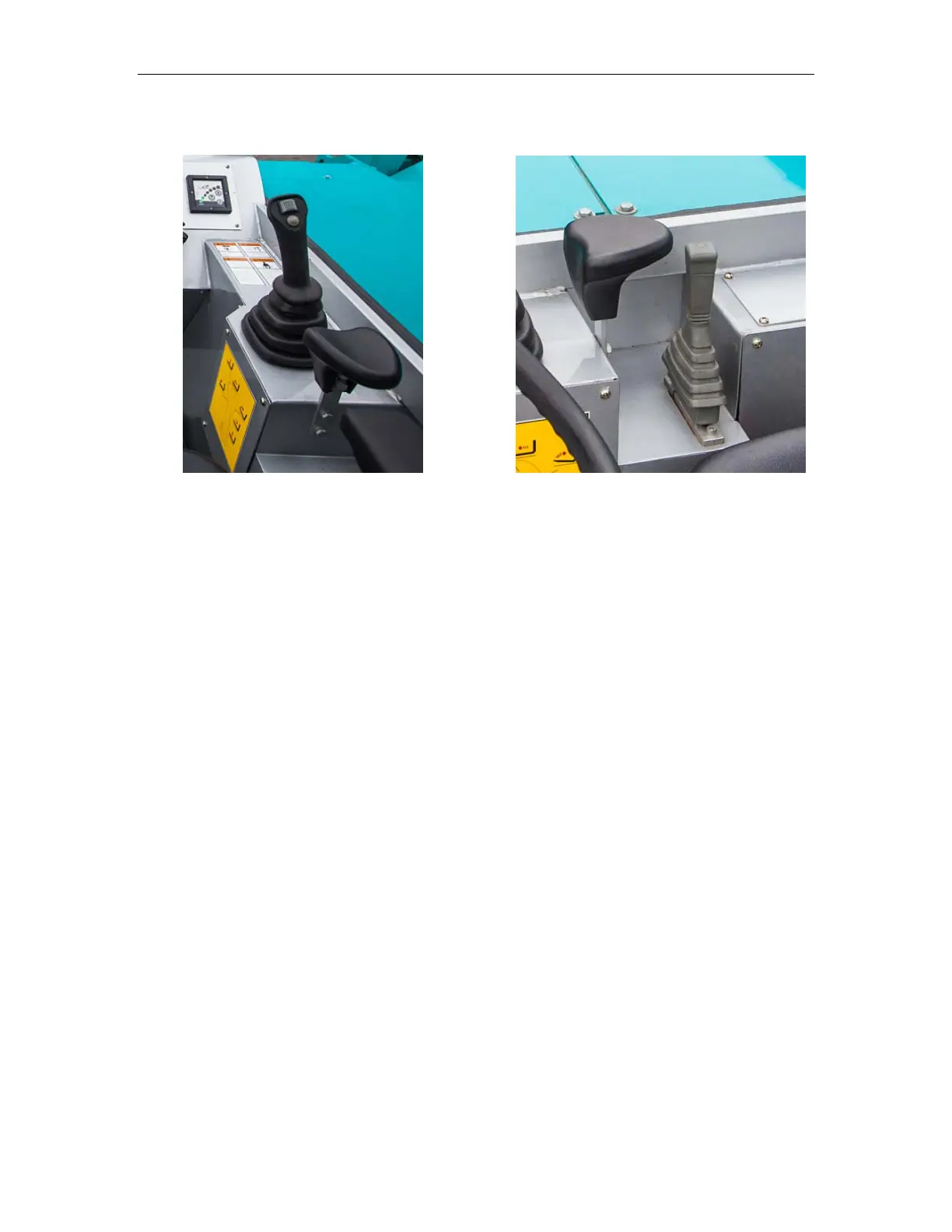

PIC.(A) PIC.（B）
The servo control knob(PIC. A) can carry on 3 actions: lifting, tipping fork and extend/retract boom at
the same time.
To lift load, pull the lever back
To lower load, push the lever forward
To tip the fork forward, push the lever left
To crowd the forks back, push the lever to the right.
To extend the boom, push the sliding wheel forward
To retract the boom, pull the sliding wheel back
Attention：
The speed of this progress can be controlled by the distanceof the shaking.
At this progress ,the attachment tool will be automatic leveling.
The servo control knob(PIC. B) can level the machine by shaking the knob.
