C5:Grease the pivot pin of telescopic boom.
C6:Grease the pivot pin of quick coupling.
C7:Grease the pins of fork tilting cylinder foot and rod.
C8:Grease the pins of lifting cylinder foot and rod.
C9:Grease the pins of front and rear axle.
C10:Grease the pins of front and rear axle soleplate
C11:Grease the pins of the cardan jiont.
C12:Grease the pins of the leveling cylinder.

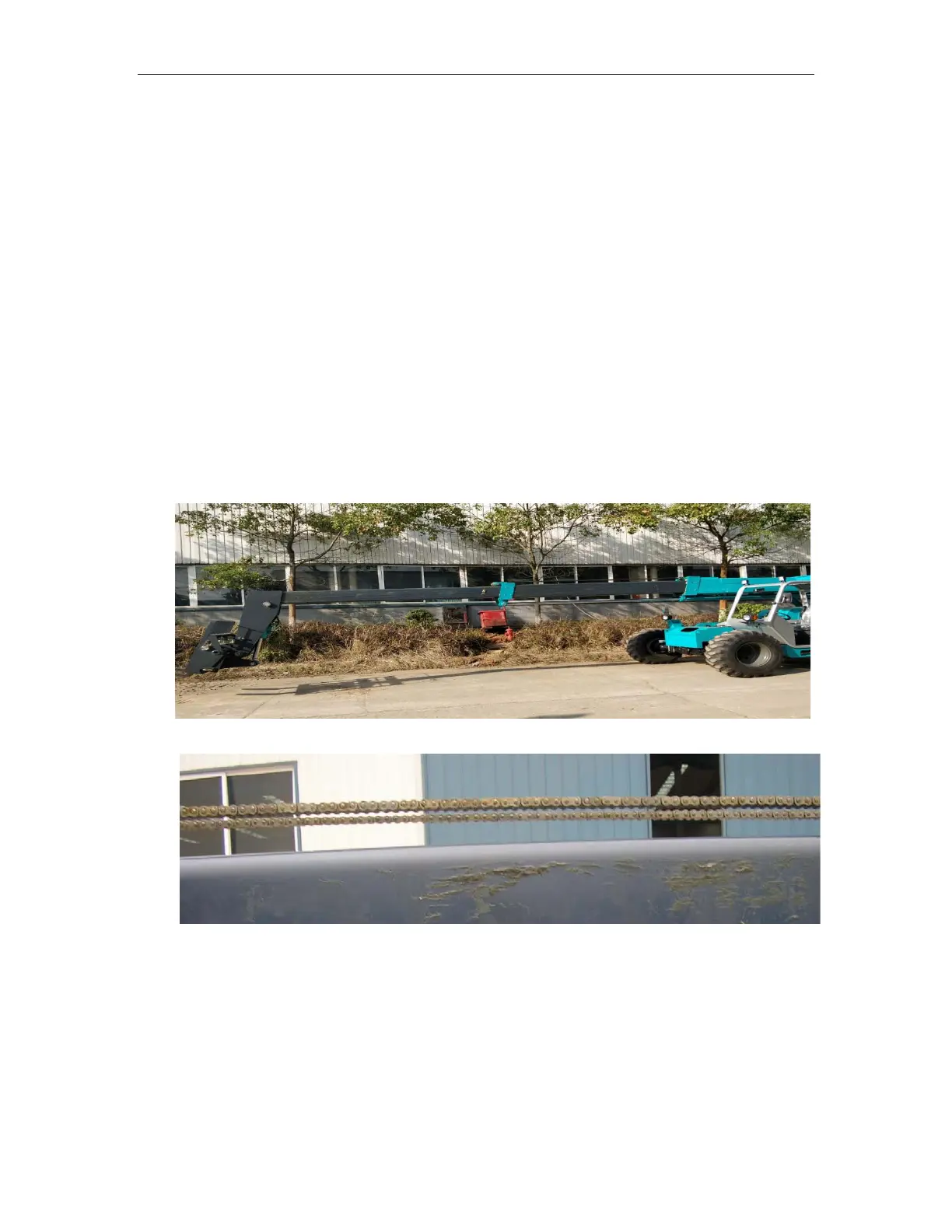

C13:Check,clean and lubricate the outside chains of the boom.
Completely extend the telescopic boom.
Clean the surface of the telescopes
Using a brush, apply a layer of grease (see “LUBRICANT” chart) on all 4 sides of the telescopic
boom
Operate the telescopic boom several times to evenly distribute the grease.
Remove any excess grease
