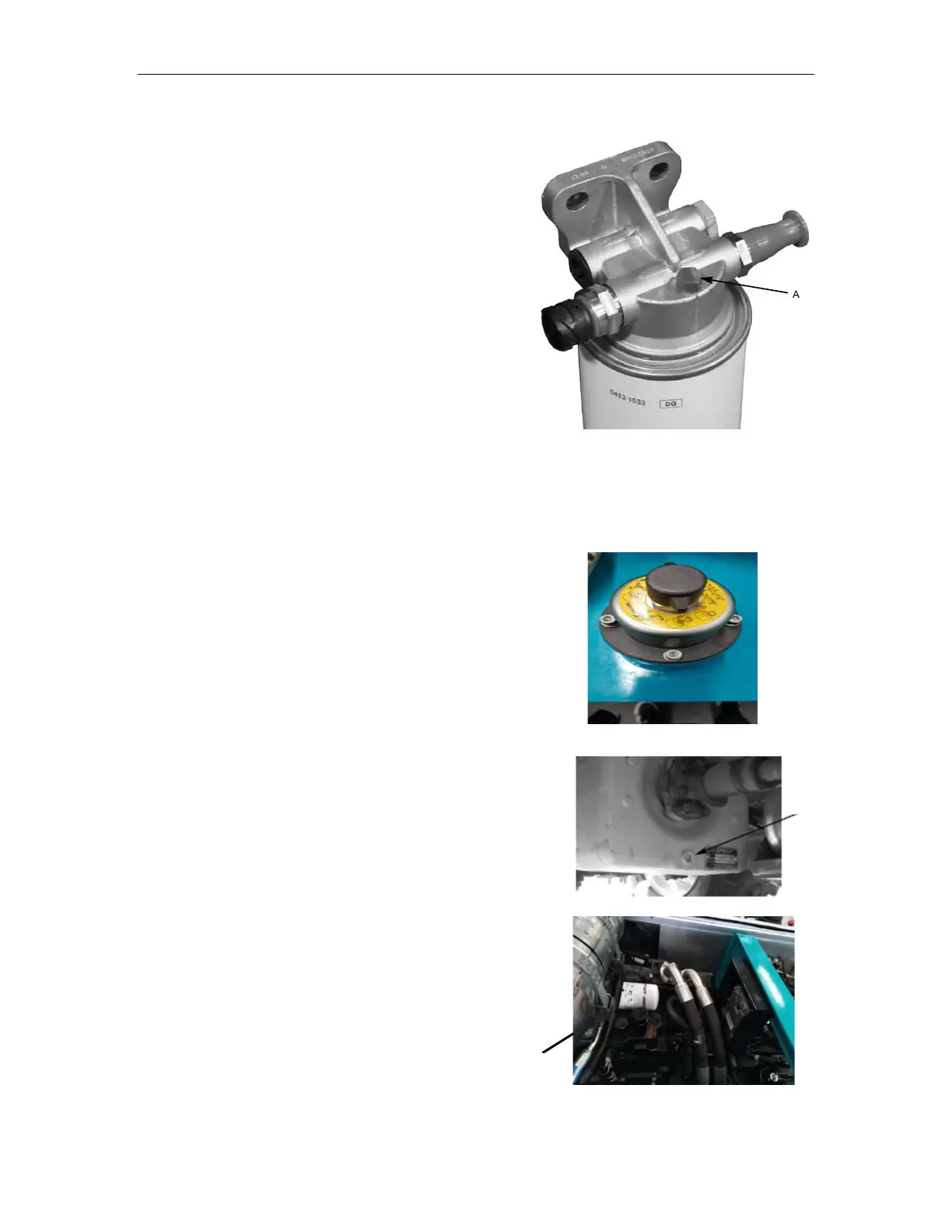

D3: Replace the secondary fuel filter
Thoroughly clean fuel filter assembly and
surrounding area.
Using a filter wrench, remove the filter from the
filter head.
Inspect filter head for cleanliness. Clean as
required.
Apply a small amount of fuel to the sealing gasket
of the replacement filter.
Turn replacement filter onto filter head until the
filter contacts the filter head, then turn an
additional 3/4 turn.
Loosen vent screw (A) on the top of the filter
head several turns.
Turn the ignition key to the “ON” position until
fuel flows from the vent screw.
Tighten the vent screw.。
D3: Replace the hydraulic oil filter cartridge
Slacken the 4 screws that fix the cover of filter, remove the old cartridge and replace it with a
new one see ("SCHEDULE MAINTENNCE").
Before fitting the cover of filter 1 back on. check that the cartridge has been correctly installed.
D4: Replace the air filter
Slacken the 4 screws that fix the cover of filter, remove the old
cartridge and replace it with a new one see ("SCHEDULE
MAINTENNCE").
Before fitting the cover of filter 1 back on. check that the
cartridge has been correctly installed
D5: Replace the hydraulic and transmission oil
vent
Slacken the 4 screws that fix the cover of filter , remove
the old cartridge and replace it with a new one see
("SCHEDULE MAINTENNCE").
Before fitting the cover of filter 1 back on , check that the
cartridge has been correctly installed.
