※ 4.3 Mounting（Including L-shaped plate）
4.3.1 Wall bracket installation

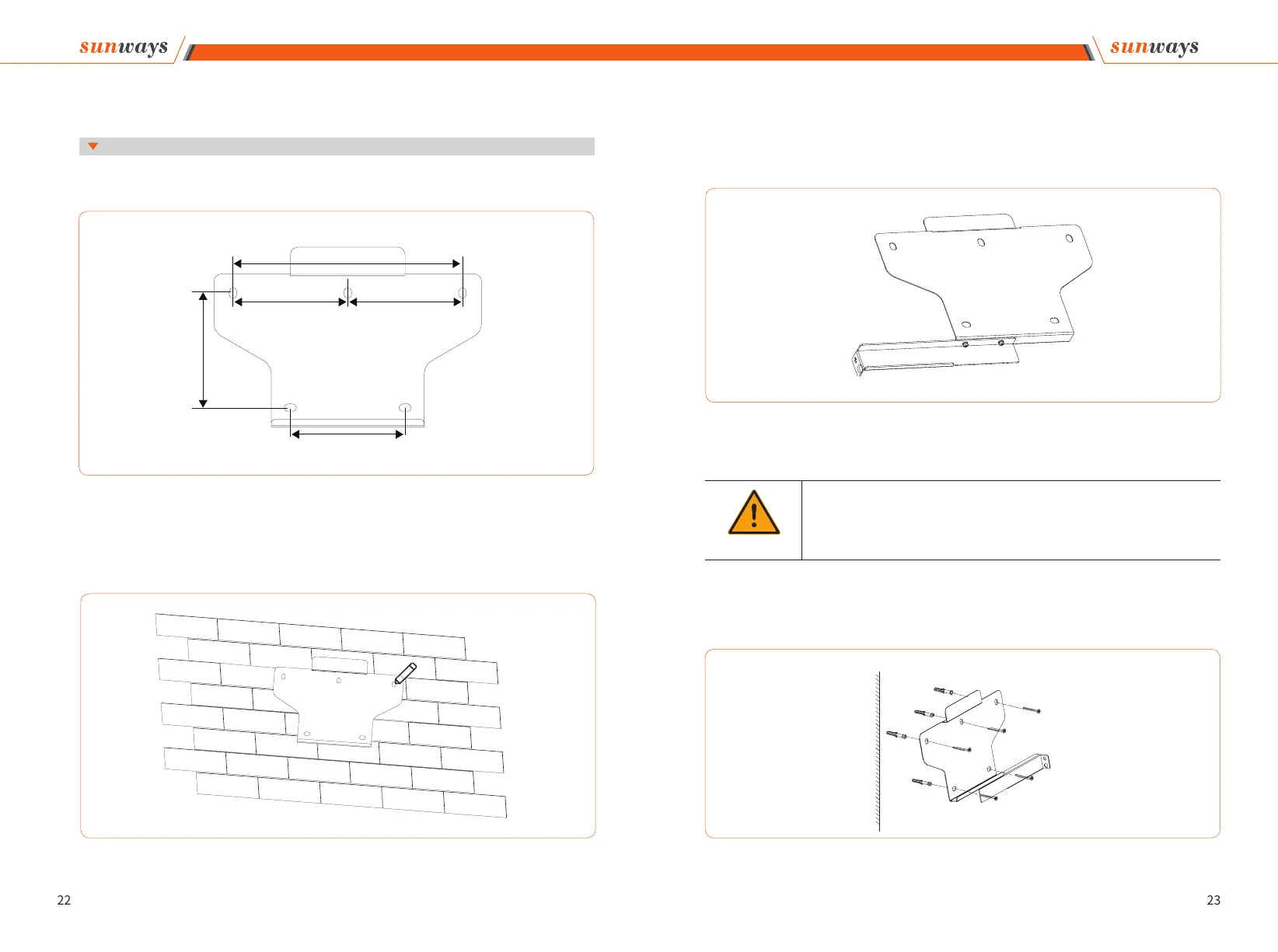

Dimensions of wall bracket, see Figure 4-8:
Figure 4-8 Dimensions of wall bracket
① Use the wall bracket as the template to mark the position of 5 holes on the wall. See
Figure 4-9 for details:
Figure 4-9 Marking hole position using installation bracket
② Bracket assembly
Prepare the two M5 screws and L-shaped plate in the accessory bag, then x the L-shaped
plate to the mounting bracket.
Figure 4-10 Bracket assembly
③
Use an electrical driller with 10mm diameter bit to drill 5 holes in the wall with 80mm depth.
Warning
Before drilling, make sure to avoid any buried water tube and electric wires in the wall.
④ Insert the expansion tubes into the holes and tighten them, then x the bracket onto
the wall with expansion screws by using a cross screwdriver, as shown in Figure 4-11:
Figure 4-11 Fixing the wall bracket
4 Installation 4 Installation
150mm
300mm
150mm
150mm150mm
