※ 3.3 Display Interface
※ 3.4 Packing List
The package of the inverter includes the following accessories. Please check whether the
accessories in the packing box are complete when receiving the goods. See Figure 3-7 for
the packing list.
Item Indicator Status Description
1
Power
Indicator
O󽗈 No input voltage detected or input voltage is too low.
Slow 󽗊ashing Inverter powered on, waiting for the grid connection.
Quick 󽗊ashing Inverter detected grid power and entered self-test status.
On Normal, grid-connected and power generated.
2
Alarm
Indicator
On
An alarm or faults detected, specific fault information can be
viewed from the display.
O󽗈 The inverter is running normally.
Slow 󽗊ashing
The monitoring device is not connected to the router or is not
connected to internet.
Quick 󽗊ashing
The monitoring device is connected to the router or connected to
internet but not connected to the server.
sunways
Item Indicator Status Description
3
OLED
Display
On Display the inverter operating information.
O󽗈
If the button pressed without any response, the screen is faulty or
not well connected.
4 Button Physical button
Switch OLED display information and set parameters by short
press and long press.

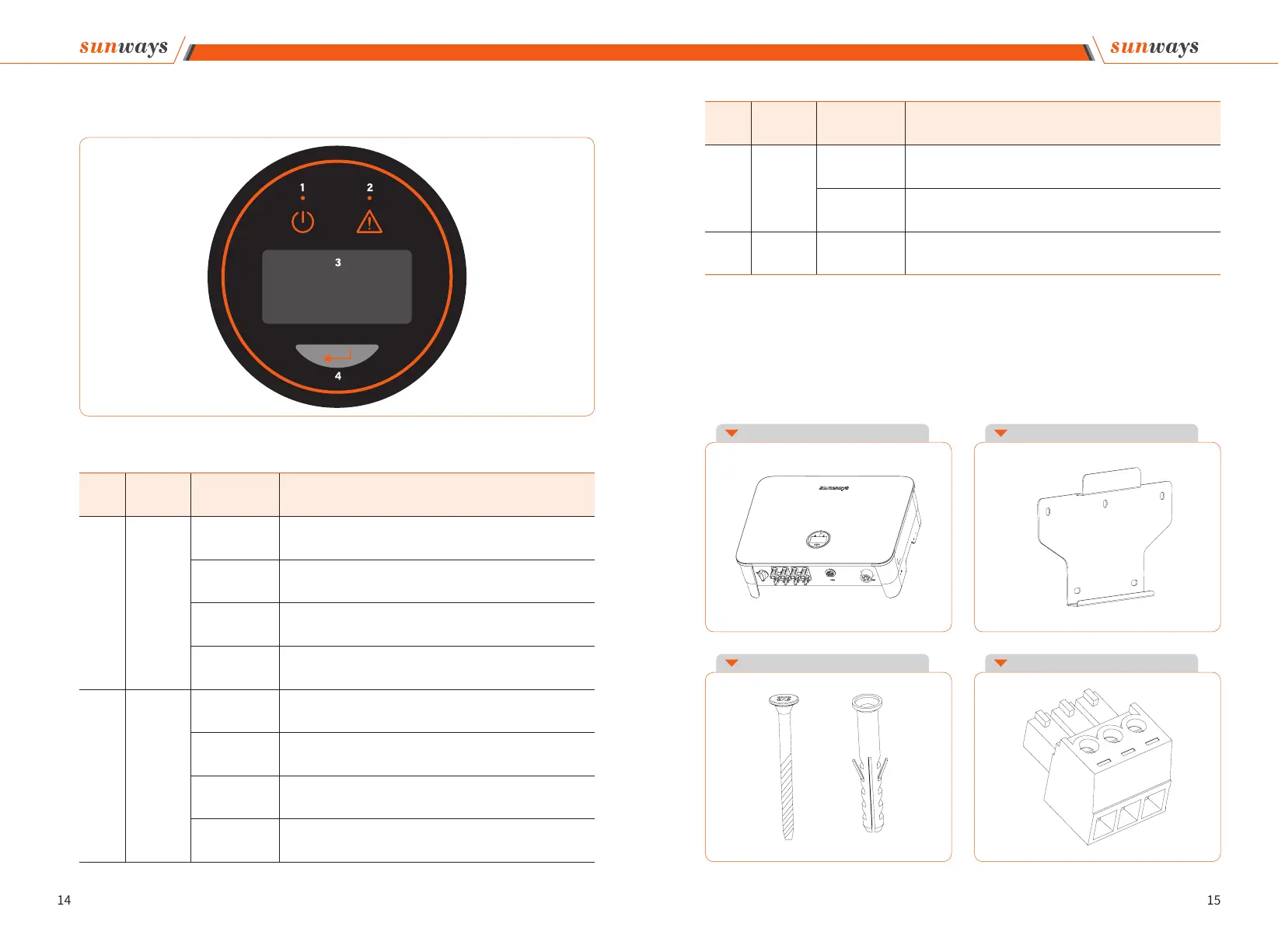

Figure 3-6 Display interface
Inverter×1 Wall Bracket×1
Expansion Bolt×4 3Pin Terminal×1
