12 13
Figure 3-4 Bottom view
3.2.3 Inverter Bottom View
3 Product Description 3 Product Description
Wiring terminals are at the bottom of the inverter, as shown in the table below.
Item Terminal Note
1 DC Input terminal PV connector
2 COM 1 Port WiFi/LAN/GPRS/4G device connector
3 COM 2 Port RS485/DRED connector
4 AC Output Terminal Used for AC output cable connection
3.1.4 Storage conditions
① Inverter must be stored in its original packaging.
② The storage temperature and humidity should be in the range of -30℃ and+ 60℃ , and
less than 90%, respectively.
③ If a batch of inverters needs to be stored, the height of each pile should be no more
than 6 levels.

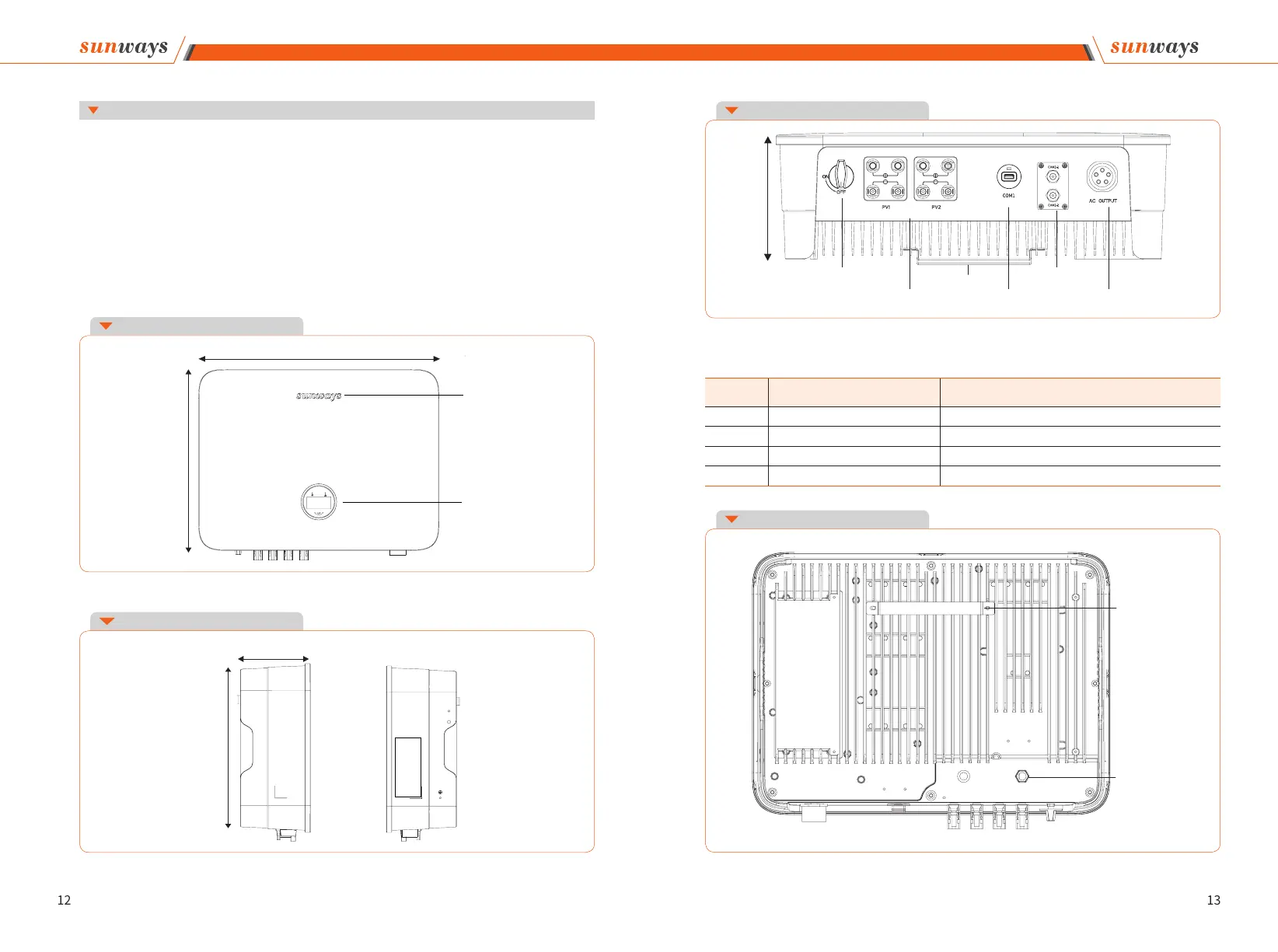

※ 3.2 Physical Layout
Figure 3-2 Front view
3.2.1 Inverter front view
3.2.2 Inverter side view
Figure 3-3 Side view
Logo
Display
550mm
410mm
410mm
175mm
Name
Plate
175mm
DC Switch (Optional) Com2 Port
(Optional)
DC Input Terminal
Back Rail
Com1 Port
AC Output Terminal
Figure 3-5 Inverter back view
3.2.4 Inverter back view
Back Rail
Vent
