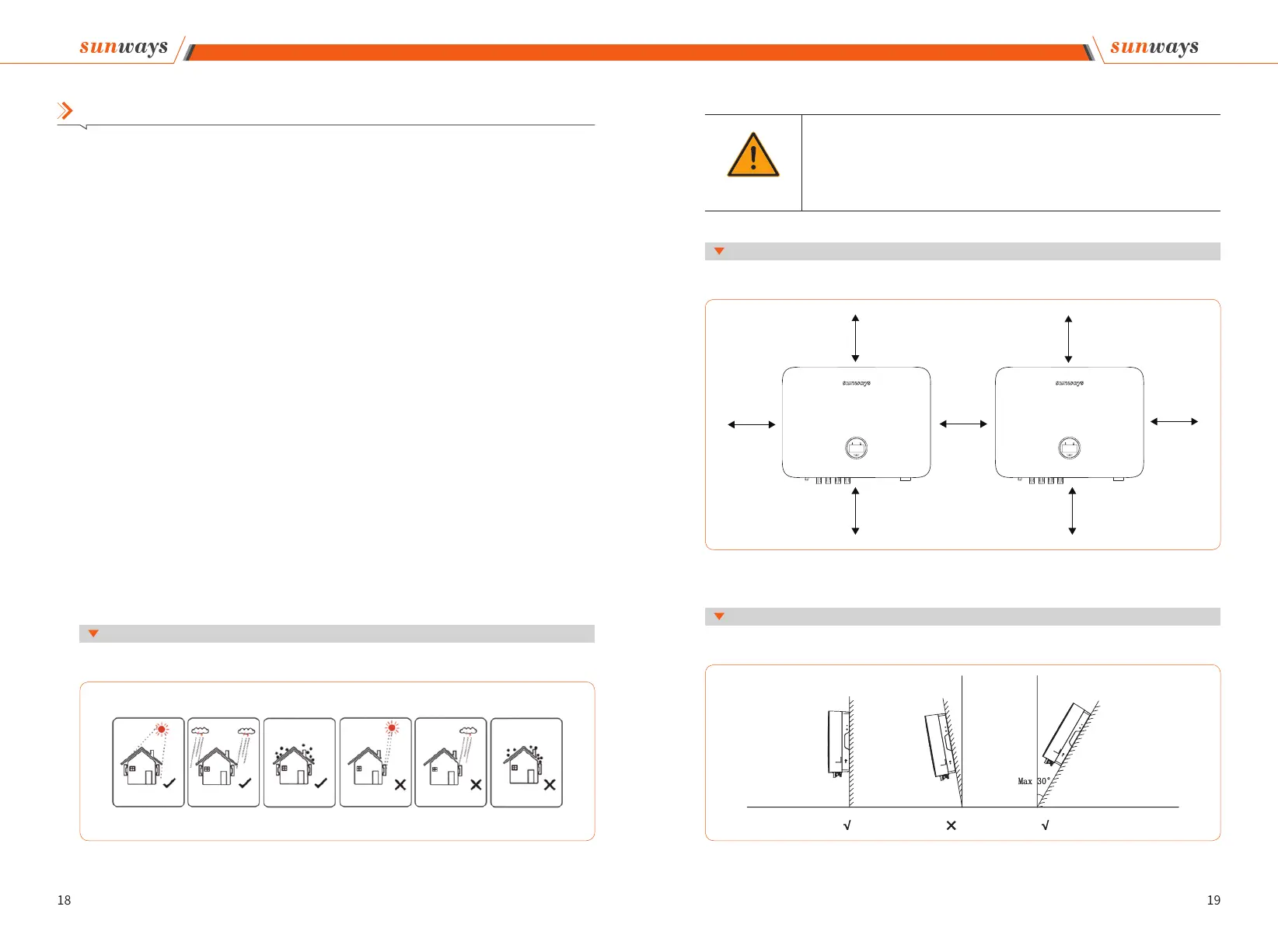

Figure 4-1 Recommended installation location
4 Installation
4 Installation
※ 4.1 Location
The Sunways STT 4-25kW series inverters designed with IP65 protection enclosure for
indoor and outdoor installations. When selecting an inverter installation location, the fol-
lowing factors should be considered:
① The wall on which the inverters mounted must be able to withstand the weight of the
inverter.
② The inverter needs to be installed in a well-ventilated environment.
③ Do not expose the inverter directly to strong sunlight to prevent excessive temperature
operation. The inverter should be installed in a place with shelter to prevent direct expo-
sure to sunlight and rain.
④ Install the inverter at eye level for easy inspection of screen data and further mainte-
nance.
⑤ The ambient temperature of the inverter installation location should be between -30℃
and 60℃ .
⑥ The surface temperature of the inverter may reach up to 75℃ . To avoid risk of burns,
do not touch the inverter while it's operating and inverter must be installed out of reach-
ing of children.
4.1.1 Installation location
Recommended installation location of the inverter, as shown in Figure 4-1:
Warning
Do not put ammable and explosive articles around the inverter.
Figure 4-3 Recommended installation angle
4 Installation
4.1.2 Installation Spacing
Figure 4-2 Recommended installation spacing
4.1.3 Installation Angle
The requirements for inverter installation spacing are shown in Figure 4-2:
The installation angle of the inverter is recommended as shown in Figure 4-3:
500mm
500mm
500mm
500mm
300mm
300mm
300mm
