2. INSTALL PEDALS

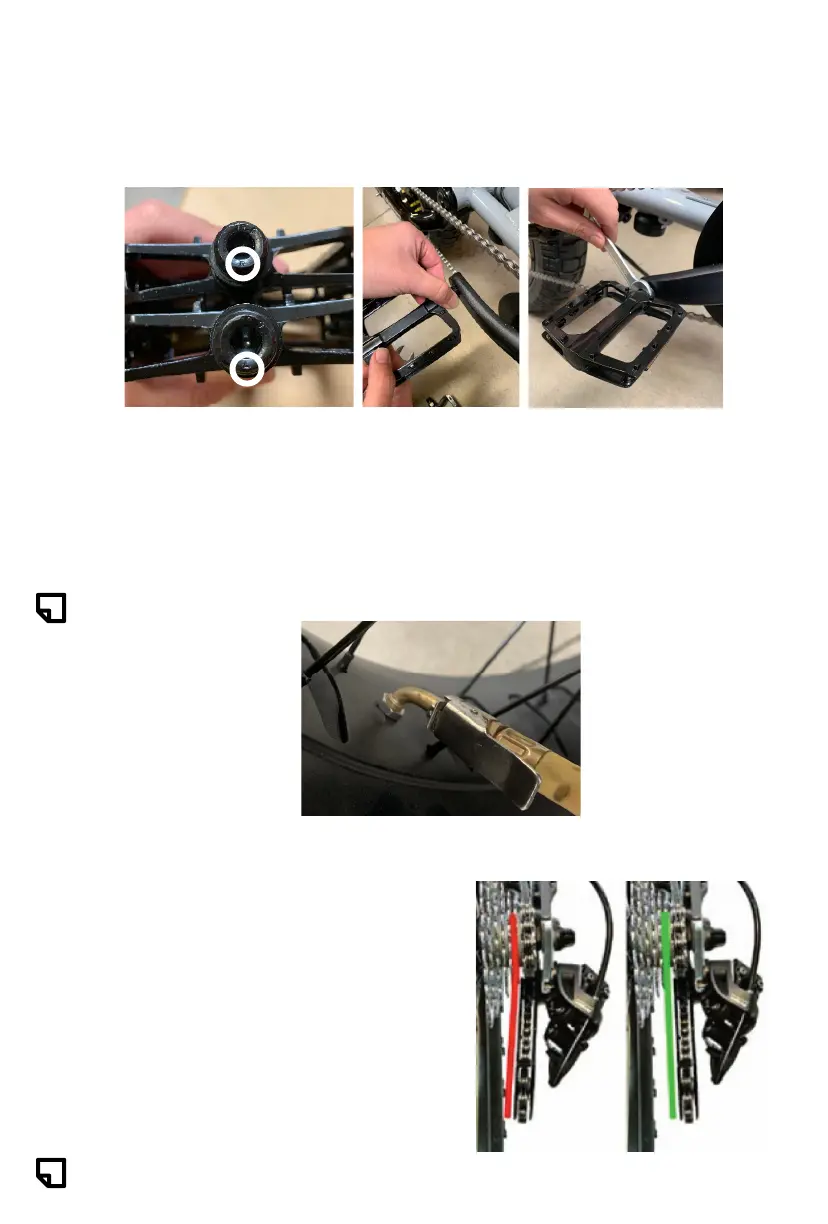

A. Install and tighten the pedals using the 15 mm open wrench. Look for a letter
marking “L” or “R” on each respective pedal and make sure to install the left
pedal on the left crank, and the right pedal on the right crank.
B. The right pedal is screwed on in a clockwise direction. The left pedal is
screwed on by turning it counter-clockwise.
3. TIRE INFLATION
For transport purposes, tires are packed partially inflated. Tires must be inflated using
a pump with a Schrader valve tip to a recommended 20-25 psi (1.38-1.72 bar).
A. Inflate the tube to a max pressure of 35 psi in order to ensure that the tire is
properly seated in the rim.
B. Once properly seated, deflate the tube to a recommended 20-25 psi (1.38-1.72
bar). PSI will vary based on the weight of the rider and the type of terrain.
TIP
A
B
4. REAR DERAILLEUR AND GEARING
Make sure to check that your chain and derailleur are properly aligned by looking at
the derailleur from the rear.
The inner tube size is 20” x 4.5” for the rear and the front tire.
A. The two pulleys should be lined up
exactly underneath one another, so
that the chain runs straight up from
the tension pulley to the jockey pulley,
with no sideways slant.
B. Compare the line of the pulleys with
that of the sprockets above them.
TIP
More information on derailleur adjustment can be found on pg. 17 of this handbook.
