Installation
900004-00, 04/2015
Innovative Hearth Products
Superior™ DRT2000 and DRC2000 Direct-Vent Gas Fireplaces
44
INSTALLATION ACCESSORIES

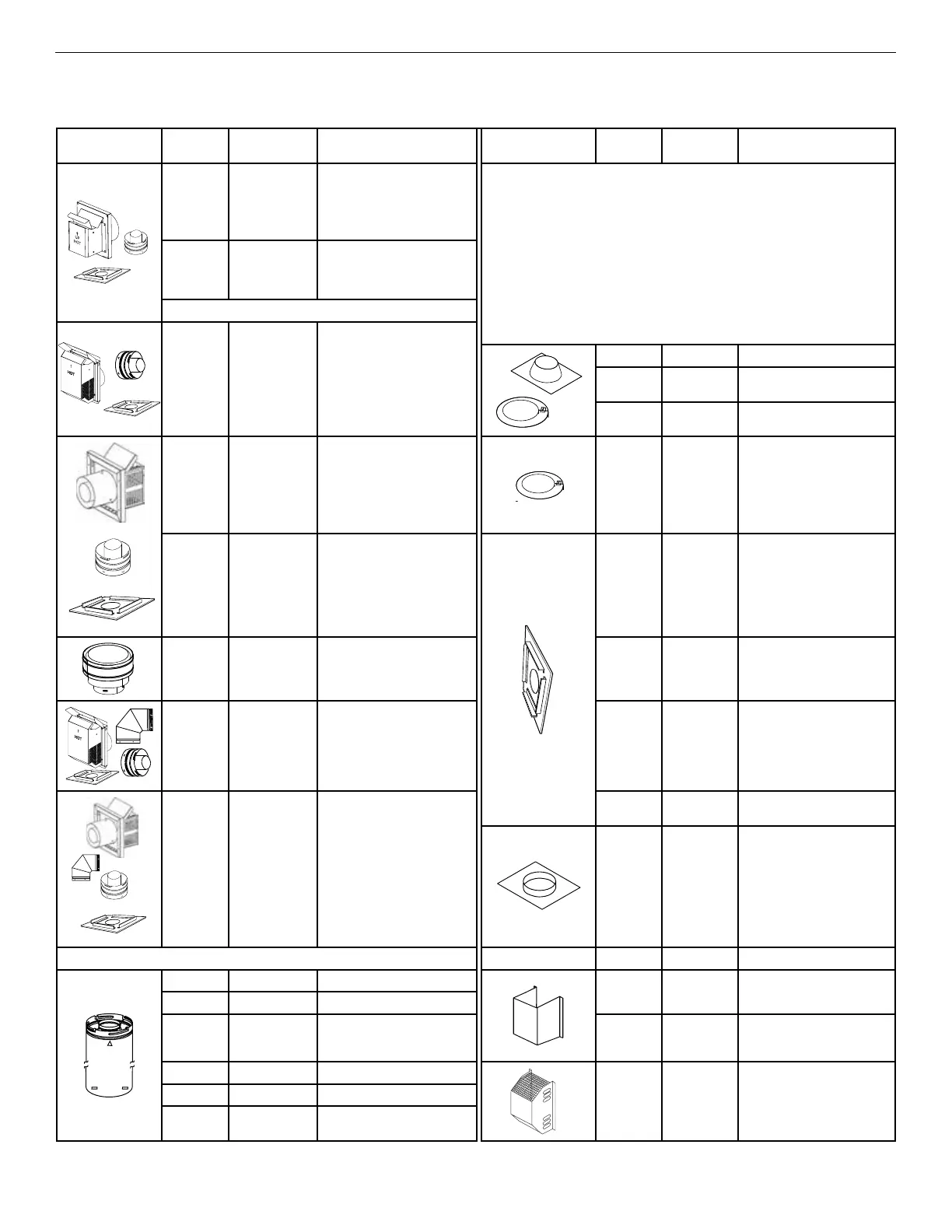

Table 31: Listed Secure Vent
®
Components
Catalog
Number
Model Description
Catalog
Number
Model Description
F1797 * SV4.5HTKCT
Rigid, Horizontal,
Compact Termination
with Firestop/Spacer
(H2246), Adaptor (74L61)
(see 750204M)
The following flashing comes packaged with a storm collar
F1798 * SV4.5HTKCT20
Rigid, Horizontal Compact
Termination, 20” with Shield
and Firestop (see 750247M
and 750204M)
* See Page 28 concerning use with the 45” model
H1968 SV4.5HT-2
Horizontal Square Termination
with Firestop/Spacer (H2246),
and Adaptor (74L61)
77L78 SV4.5F Flat Roof Flashing
77L79 SV4.5FA
1/12 to 7/12 Adjustable
Flashing
77L80 SV4.5FB
7/12 to 12/12 Adjustable
Flashing
94L10 SV4.5HTSS
Rigid, Horizontal, Small
Square Termination
with Firestop/Spacer
(H2246), Adaptor (74L61)
(see 750204M)
77L81 SV4.5SC6 Storm Collar (6 pack)
H5817 SV4.5-20SSWSK
Rigid, Small, Square
Termination, 20” with Shield
and Firestop (see 750247M
and 750204M)
H6183 SV4.5HF5 Firestop Spacer, 5”, rigid
H2152 SV4.5CGV-1
Vertical Termination Cap, High
Wind
H6184 SF4.5HF5 Firestop Spacer, 5”, flex
H8914 SV4.5TK90HT2
Horizontal Termination Kit HT-2
with 90° elbow
H2246 SV4.5HF-10
Firestop/Spacer-Horizontal,
rigid (3-1-1 spacing), 10 Pack
H8915 SV4.5TK90SS
Horizontal Termination Kit
Small Square with 90° elbow
H2247 SV4.5VF-10
Firestop/Spacer-Vertical, rigid
(1-1-1 spacing), 10 Pack
96K92 SV4.5SP Support Plate
Vent Sections (Rigid)
77L70 SV4.5L6 6” (152 mm)
17M52 SV4.5HGS-1
Termination Guard, Square (1
pack) (see 750109M)
77L71 SV4.5L12 12” (305 mm)
77L72 SV4.5L24 24” (610 mm) 17M53 SV4.5HGS-12
Termination Guard,
Horizontal Square (12 pack)
(see 750109M)
77L73 SV4.5L36 36” (914 mm)
87L02 SV4.5HGS
Termination Guard
for Horizontal Square
Termination (Deluxe)(1 pack)
(see 750055M)
77L74 SV4.5L48 48” (1219 mm)
77L75 SV4.5LA
Telescopic Length Slip Section
(2–7 1/2” rigid)
