Supermicro SuperServer E300-9D - Ports

31
Chapter 3 Motherboard Connections
3.3 Ports

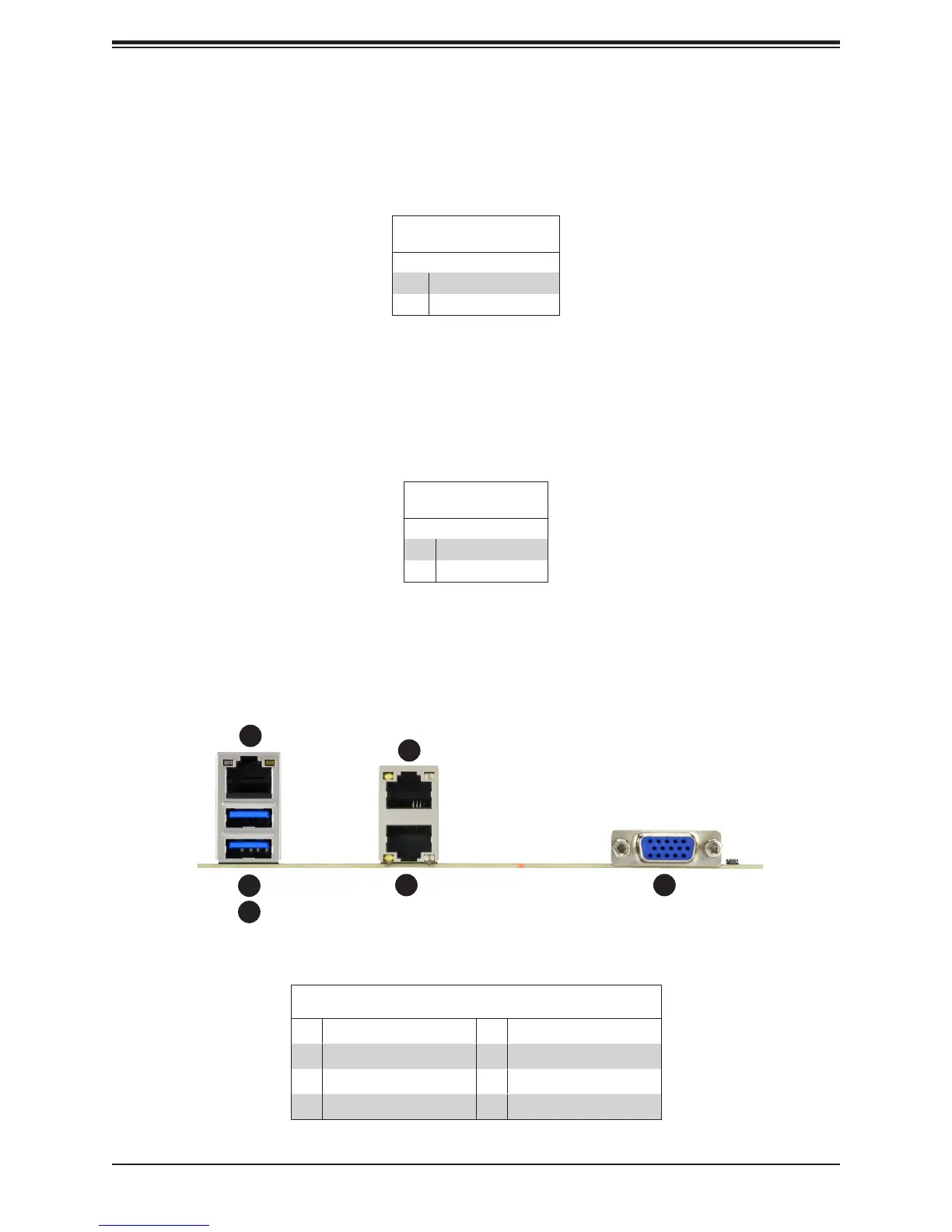

Figure 3-1. Rear I/O Ports
Rear I/O Ports
# Description # Description
1.
IPMI LAN Port
4
LAN Port 2
2.
USB Port 3
5
LAN Port 1
3
USB Port 2
6
VGA Port
HDD LED
The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable to show the

HDD LED
Pin Denitions (JF1)
Pin# Denition
13 3.3V Stdby
14 HDD LED
Power LED
The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below

Power LED
Pin Denitions (JF1)
Pin# Denition
15 3.3V
16 PWR LED
1
65
4
3
2
